Continuity Inspection

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the starter interlock switch connector.
Inspect for continuity between terminals of the starter interlock switch using an ohmmeter. See Fig 1 . There should be continuity with the clutch pedal depressed between (B) and (C) terminals, and there should not be continuity when released. If not as specified, replace the starter interlock switch.

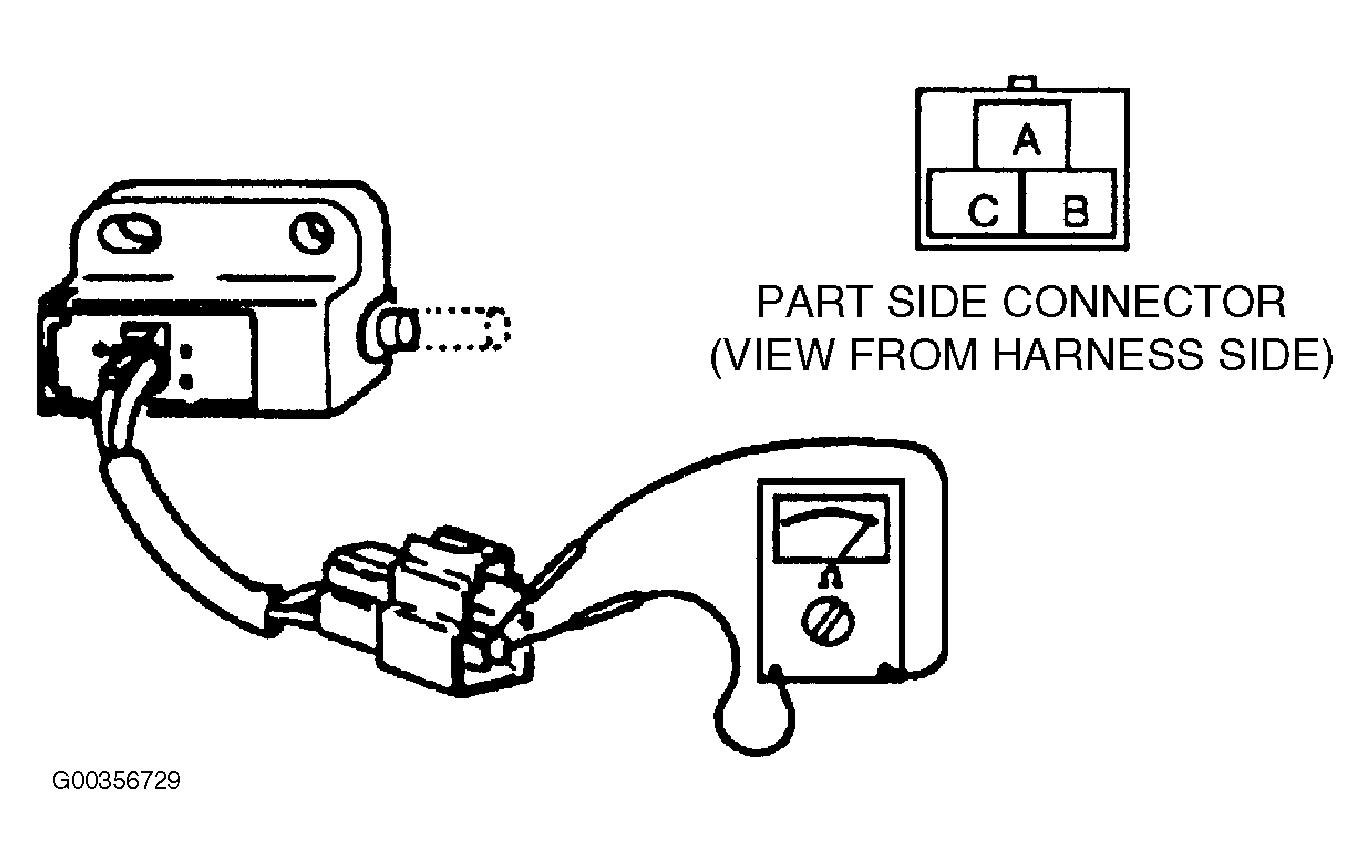

Fig 1: Testing Interlock Switch Continuity

Courtesy of MAZDA MOTORS CORP.
