Front Fog Light Adjustment
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Adjust the tire air pressure to the specification.
- Position the unloaded vehicle on a flat, level surface.
- Seat one person in the driver's seat.
- Position the vehicle 3 m {10 ft} in front of a white screen.
- While adjusting one fog light, mask the other.
- Start the engine to charge the battery.
- Turn the front fog light on.

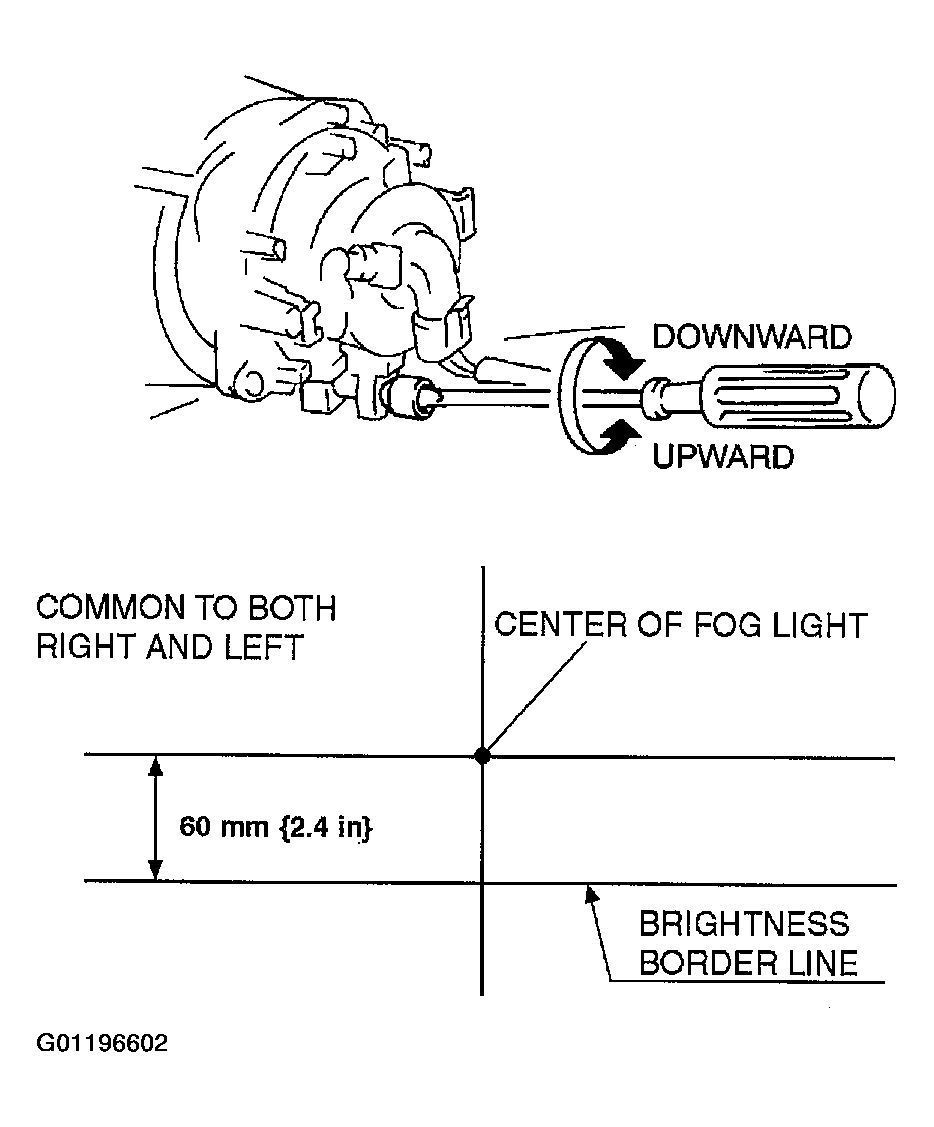

- Adjust the brightness border line by turning the adjusting bolts as shown in the figure. See Fig 2 . Loosen the bolts first, then tighten them.
NOTE:
- If the adjusting bolts are tightened first, then loosened, they will continue to loosen when the vehicle is in motion and may cause the front fog lights to become misaligned.
