Hazard Warning Switch Inspection

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hazard warning switch. See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .
Inspect for continuity between the hazard warning switch terminals using an ohmmeter.
- If not as specified, replace the hazard warning switch.

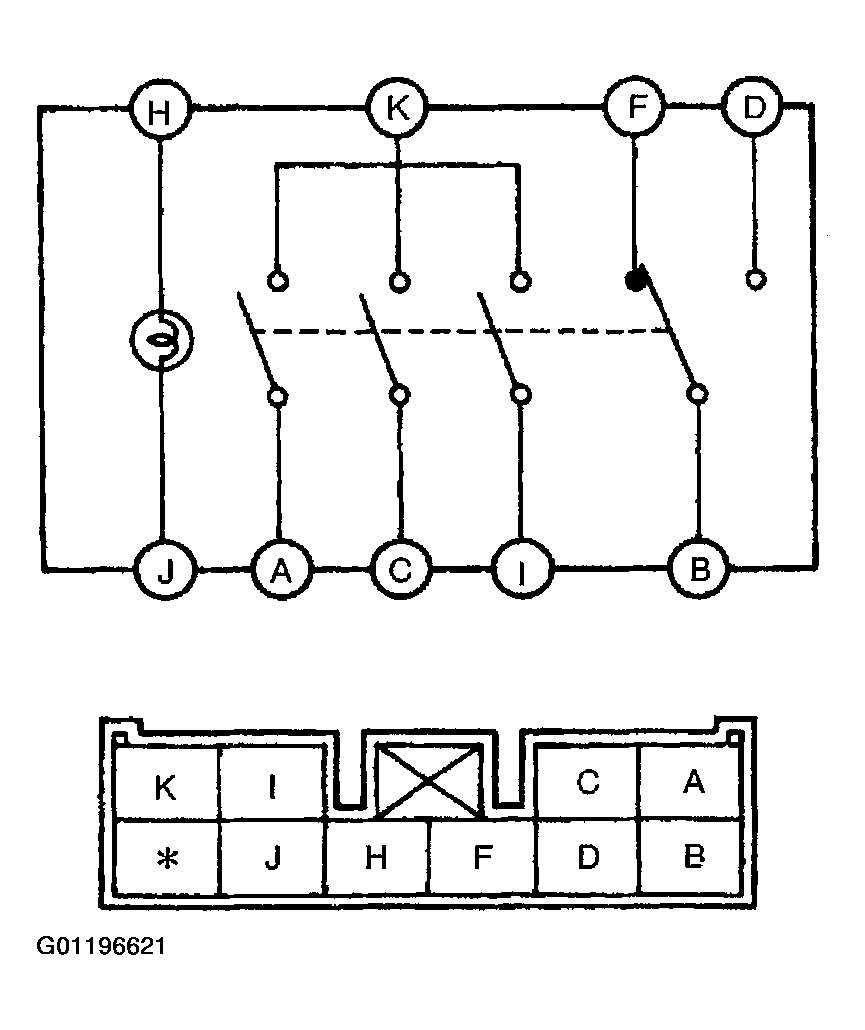

Fig 1: Inspecting Hazard Warning Switch Continuity

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Hazard Warning Switch Connector

Courtesy of MAZDA MOTORS CORP.
