Windshield Wiper Arm And Blade Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the illustration.

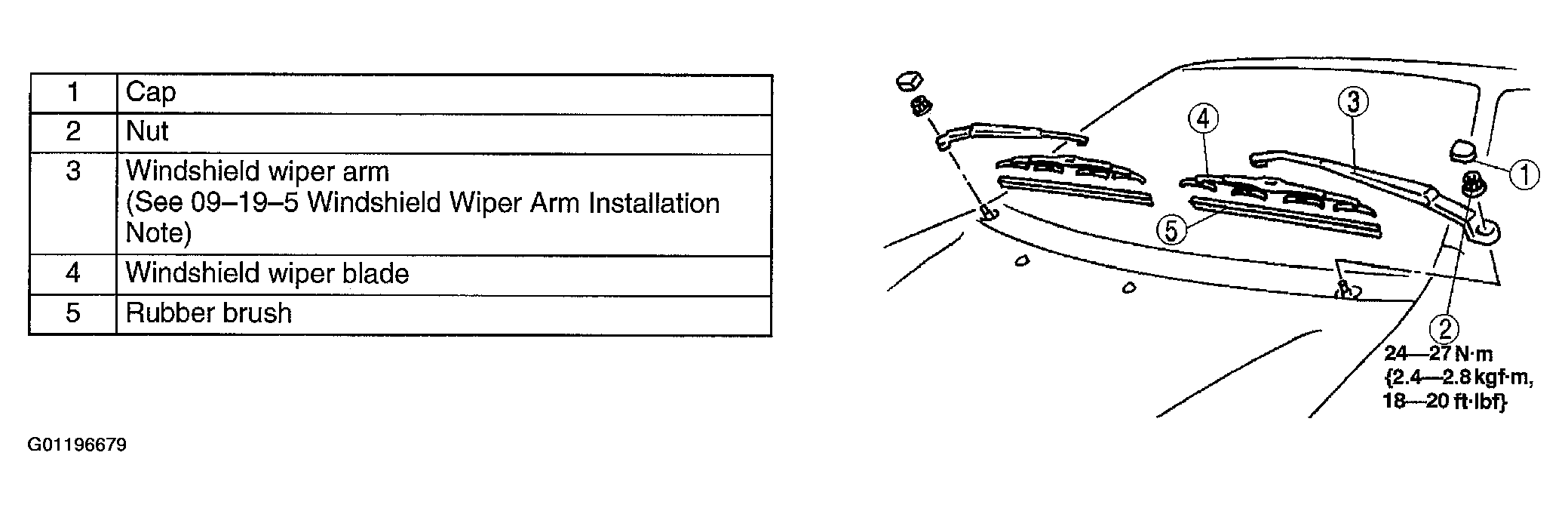

Fig 1: Removing/Installing Front Wiper Arms & Blades
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the windshield wiper arm and blade. See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .
