Center Lower Panel Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear console. See REAR CONSOLE REMOVAL/INSTALLATION  .
  2. Remove the glove compartment.
  3. Remove the under cover.
  4. Remove the meter hood. See METER HOOD REMOVAL/INSTALLATION  .
  5. Remove the audio unit.
  6. Remove the screws.
  7. Pull the center lower panel to disengage clips A and B from the dashboard.

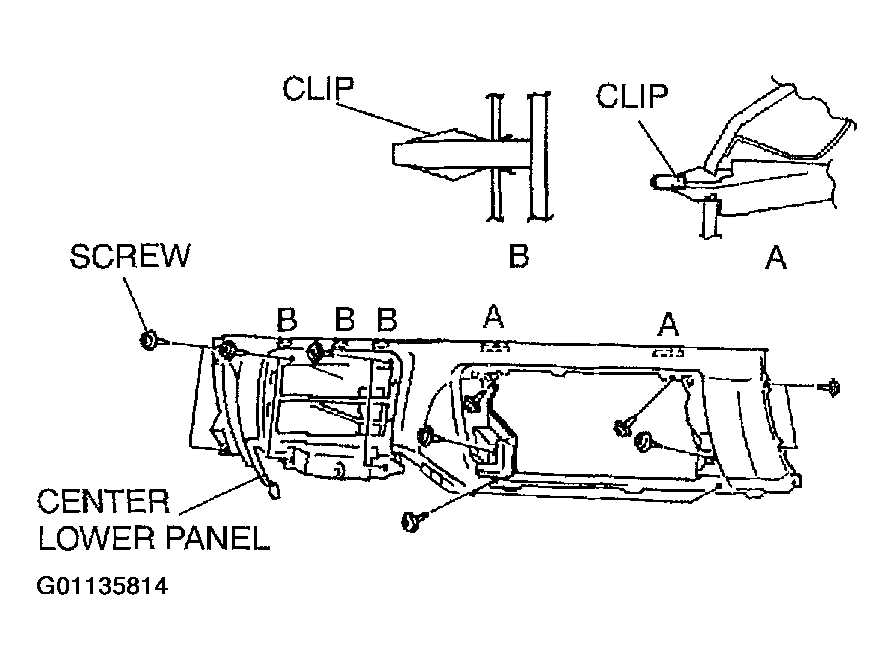

    Fig 1: Identifying Center Lower Panel Clips A & B
    G01135814Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
