Trunk Compartment Covering Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center board and the spare tire.
Remove the trunk side board.
Remove the trunk end trim. See TRUNK END TRIM REMOVAL/INSTALLATION .
Remove the fasteners.
Disengage the part of trunk compartment covering A from the corner plate to remove it.
Remove the trunk lid opener cancel switch cover.

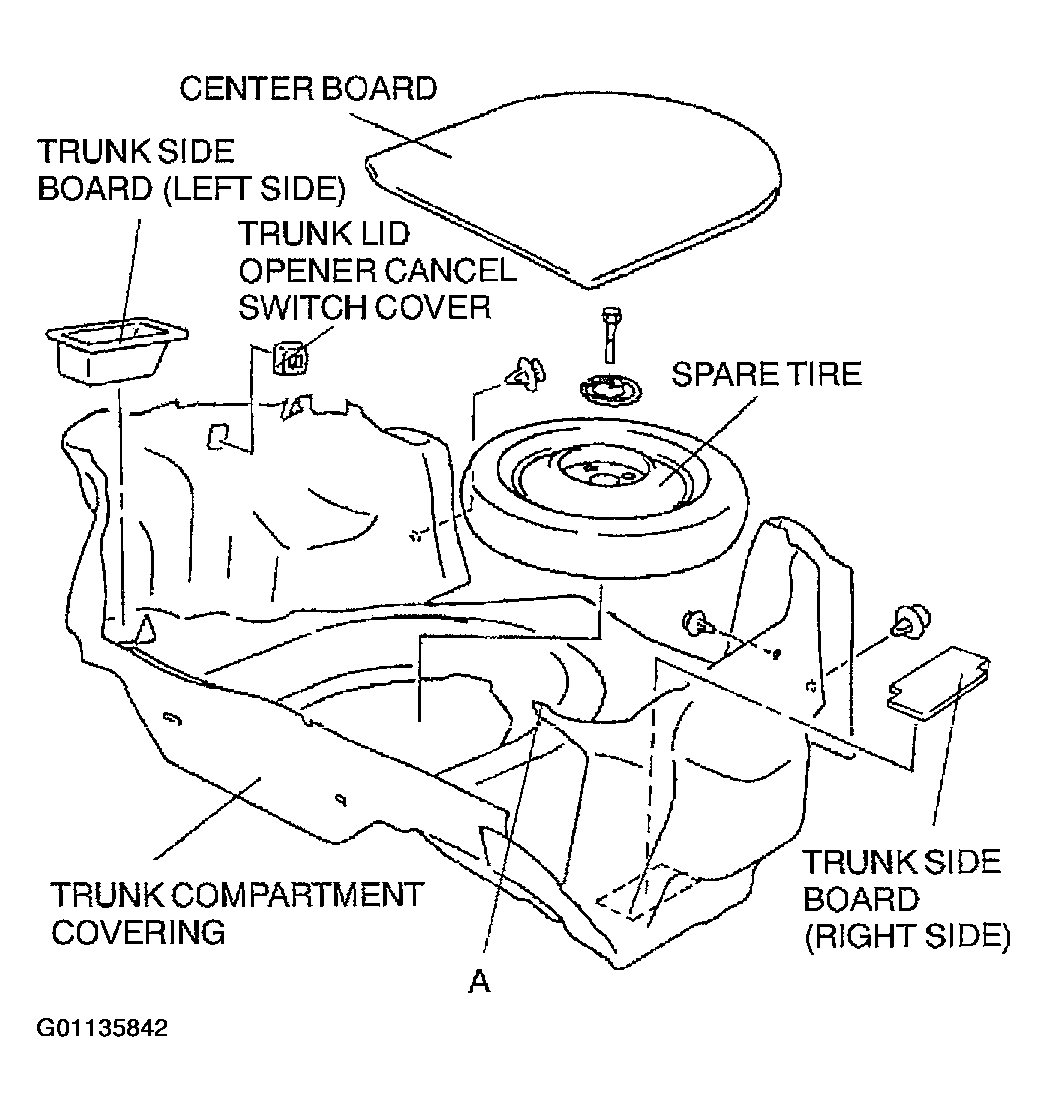

Fig 1: Removing/Installing Trunk Compartment Covering
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
