Exterior Lighting System Location Index

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

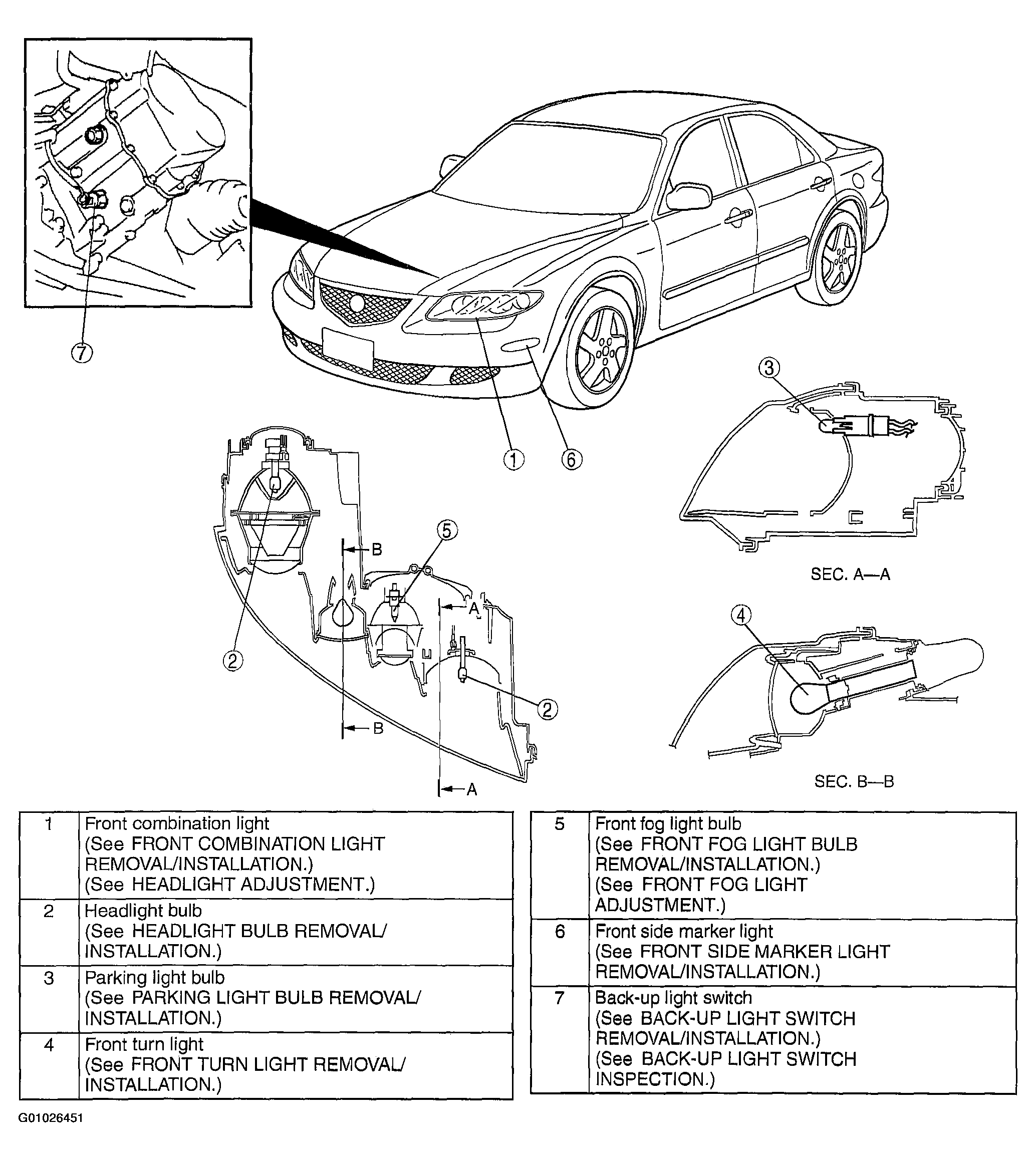

Fig 1: Exterior Lighting System Location Index (1 Of 3)
G01026451Courtesy of MAZDA MOTORS CORP.

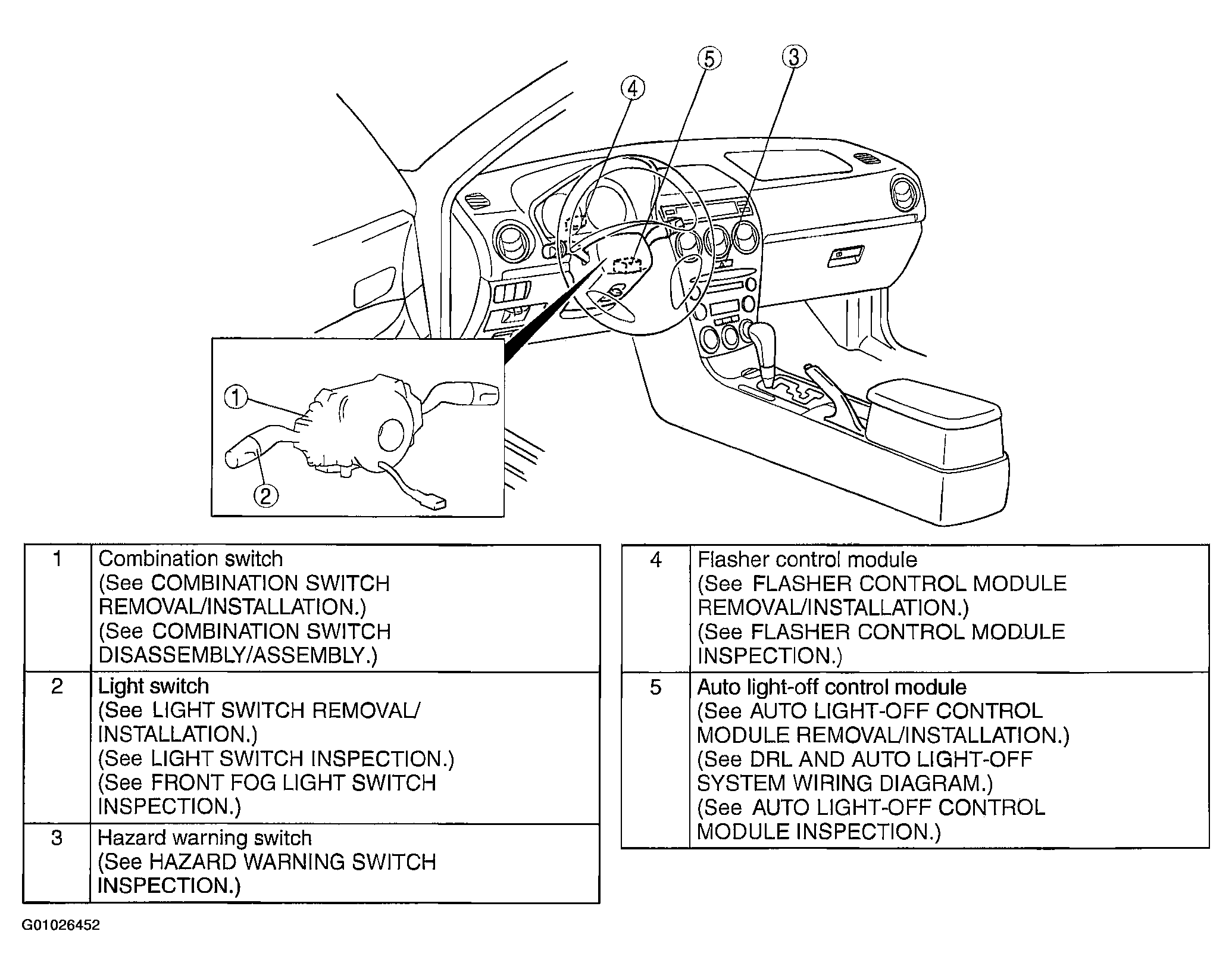

Fig 2: Exterior Lighting System Location Index (2 Of 3)
G01026452Courtesy of MAZDA MOTORS CORP.

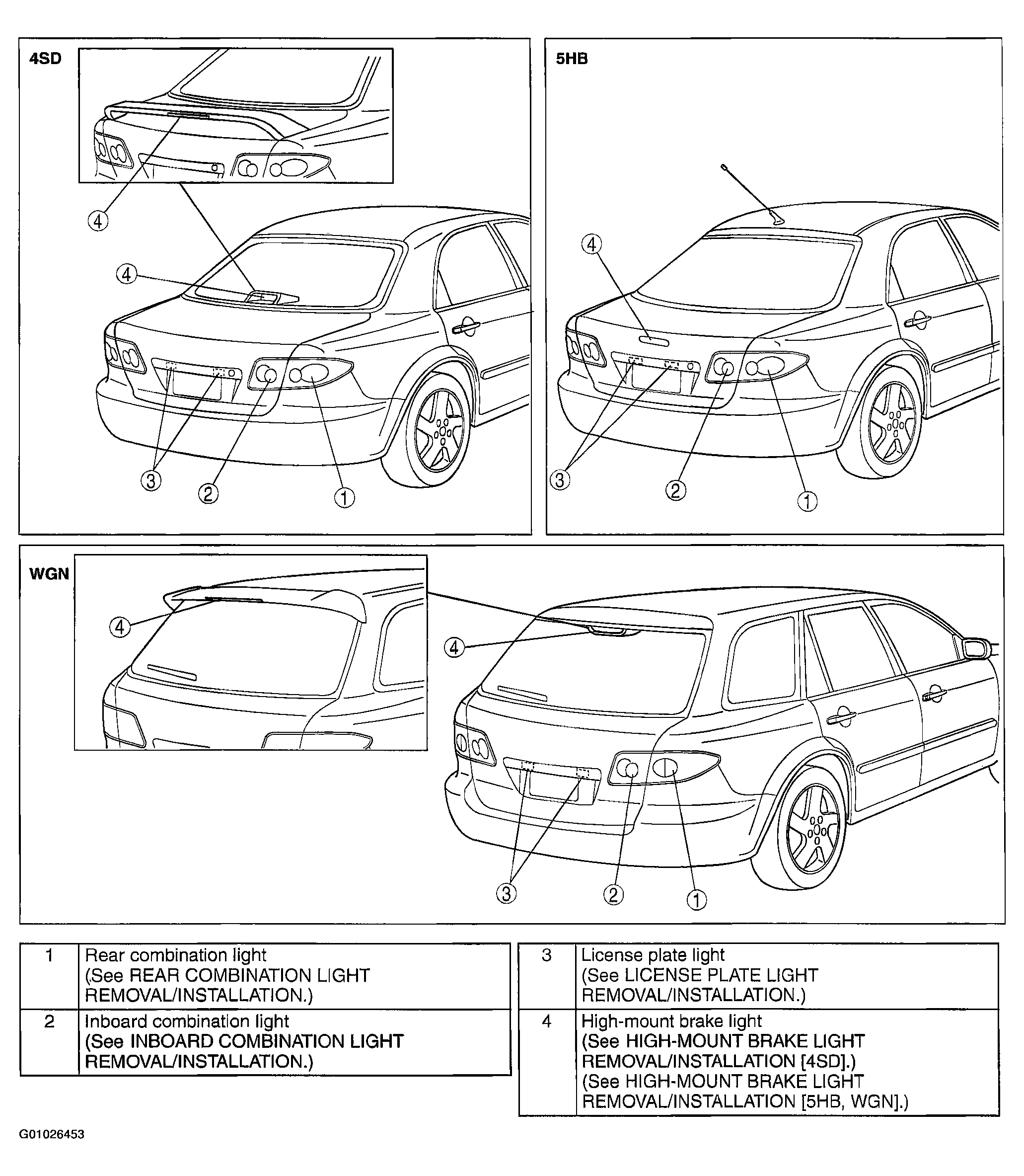

Fig 3: Exterior Lighting System Location Index (3 Of 3)
G01026453Courtesy of MAZDA MOTORS CORP.
