Front Fog Light Adjustment

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Adjust the tire air pressure to the specification.
Position the unloaded vehicle on a flat, level surface.
Seat one person in the driver's seat.
Position the vehicle 3 m {10 ft} in front of a white screen.
While adjusting one fog light, mask the other.
Start the engine to charge the battery.
Turn the front fog light on.

Fig 1: Positioning Vehicle For Front Fog Light Adjustment
Courtesy of MAZDA MOTORS CORP.

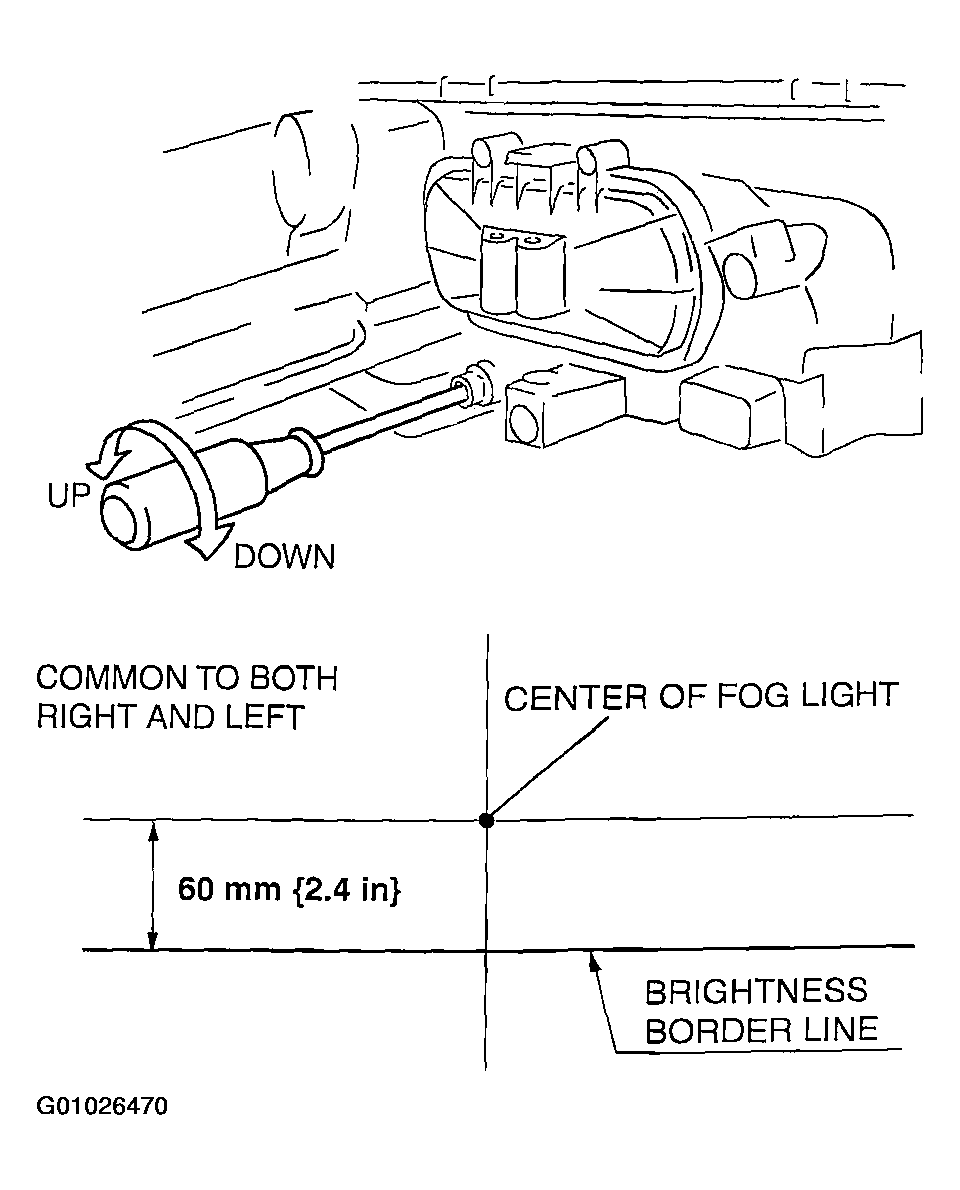

Adjust the front fog light as shown in the illustration.

Fig 2: Adjusting Front Fog Light

Courtesy of MAZDA MOTORS CORP.
