Headlight Adjustment

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Adjust the tire air pressure to the specification.
Position the unloaded vehicle on a flat, level surface.
Seat one person in the driver's seat.
Position the vehicle straight ahead and perpendicular to a wall.
Set the headlights 3 m {10 ft} from the white screen.
While adjusting one headlight, mask the other.
Start the engine to charge the battery.
Turn on the lower-beam headlight.

Fig 1: Positioning Vehicle For Headlight Adjustment
Courtesy of MAZDA MOTORS CORP.
Adjust the headlights as shown in the figure.

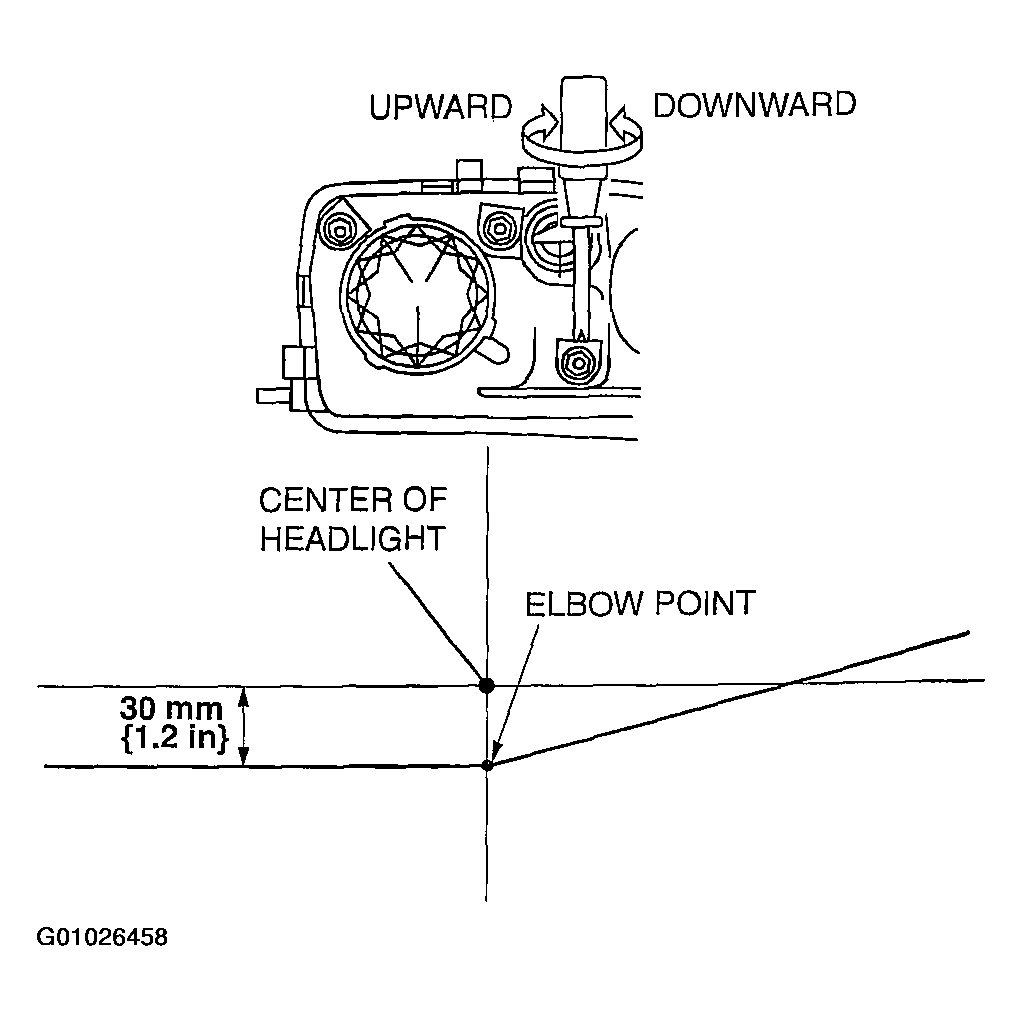

Fig 2: Adjusting Headlights

Courtesy of MAZDA MOTORS CORP.
