Liftgate Adjustment
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Measure the gap and height between the liftgate and the body.
- If not as specified, loosen the liftgate hinge installation bolts or the liftgate striker installation screws, and reposition the liftgate. (See LIFTGATE REMOVAL/INSTALLATION .) (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION .)

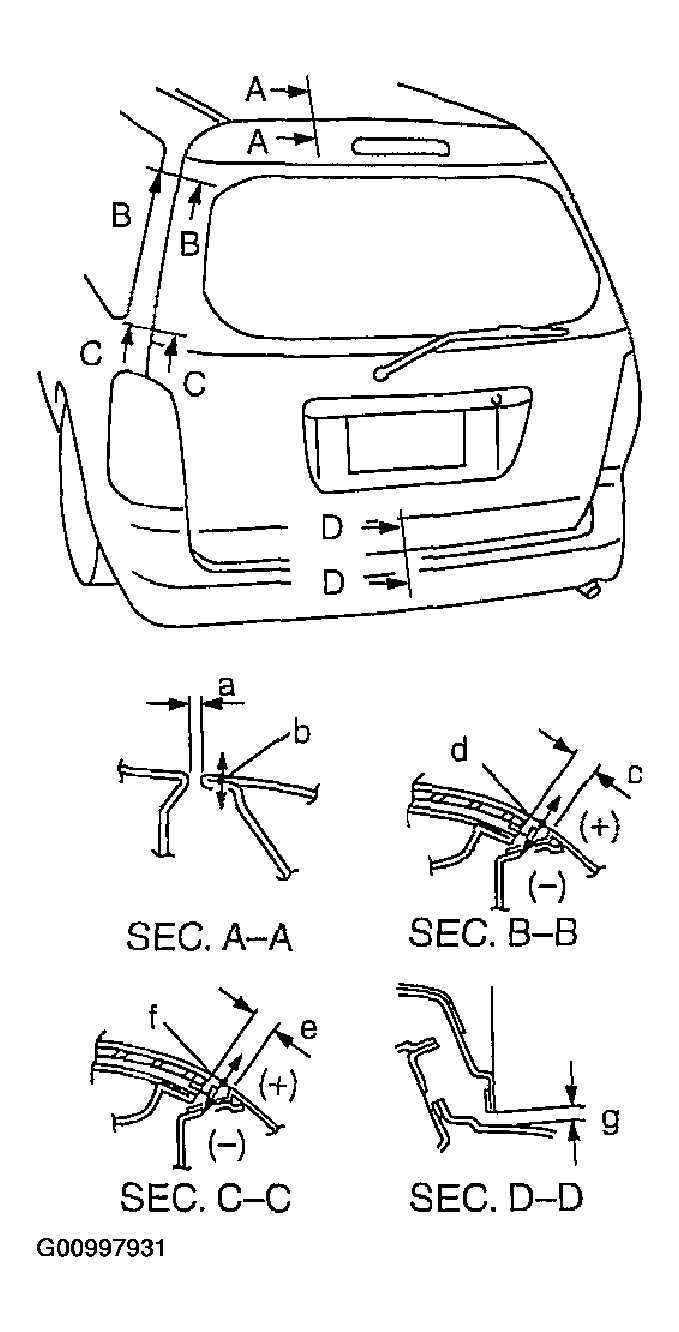

Clearance
- a: 6.8-9.8 mm {0.27-0.38 in}
- b: -2.5-0 mm {-0.09-0 in}
- c: 3.5-7.5 mm {0.14-0.29 in}
- d: -3.0-1.0 mm {-0.11-0.03 in}
- e: 3.5-7.5 mm {0.14-0.29 in}
- f: -3.7-03 mm {-0.14-0.01 in}
- g: 4.5-9.5 mm {0.18-0.37 in}
- Tighten the bolts or screws.
