Magnetic Clutch Inspection: Operation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the magnetic clutch connector.
Connect battery positive voltage to terminal A and ground to terminal B of the magnetic clutch.

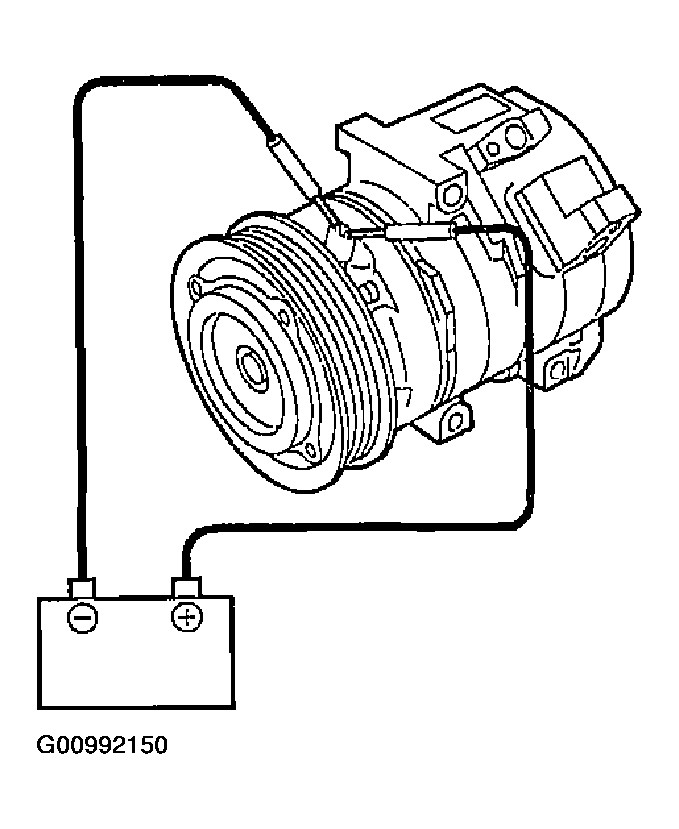

Fig 1: Inspecting Magnetic Clutch
Courtesy of MAZDA MOTORS CORP.
Verify that the magnetic clutch operates.
- If there is any malfunction, replace the stator.

  Fig 2: Verifying Magnetic Clutch Operation
  Courtesy of MAZDA MOTORS CORP.
