Joint Hose Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Fit the joint hose onto the respective fittings, and install clamps as shown.

Fig 1: Installing Joint Hose On Fuel Tank
Courtesy of MAZDA MOTORS CORP.

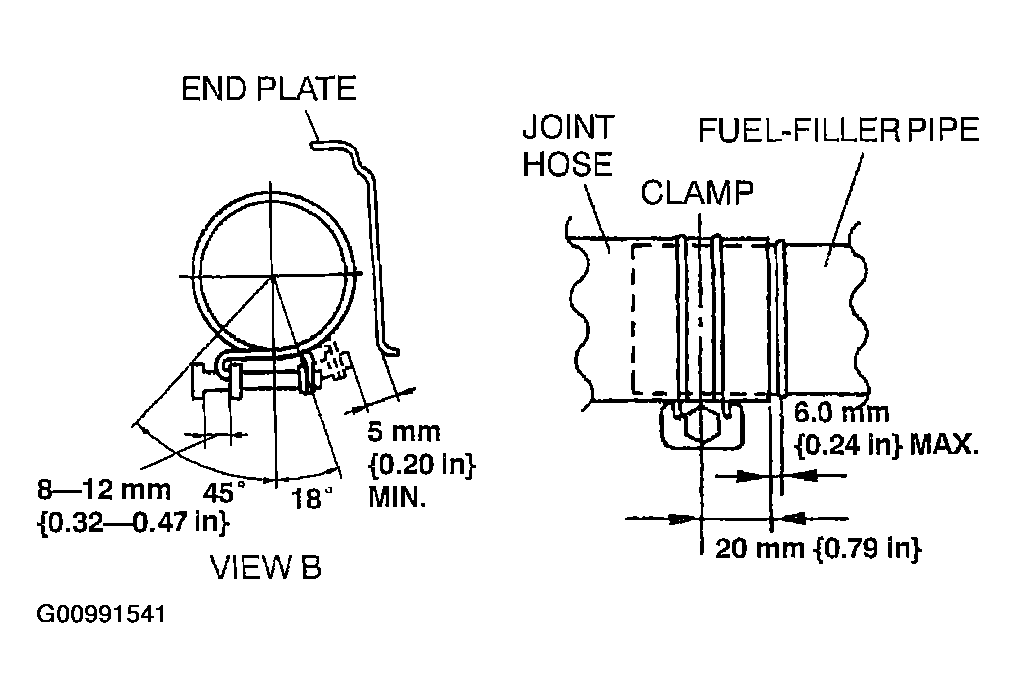

Fig 2: Installing Joint Hose On Filler Pipe
Courtesy of MAZDA MOTORS CORP.
