Actuator Cable Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Slide the lock lever in the direction shown by the arrow to unlock the adjuster.

Fig 1: Unlocking Adjuster
Courtesy of MAZDA MOTORS CORP.
Turn the ratchet ring to release lock in the direction shown by the arrow.

Fig 2: Turning Ratchet Ring
Courtesy of MAZDA MOTORS CORP.
Install the actuator cable to the cruise actuator.
CAUTION:
- Due to the possibility of actuator cable damage, make sure there is no twisting in the cable when installing.

  Fig 3: Installing Actuator Cable To Cruise Actuator
  Courtesy of MAZDA MOTORS CORP.

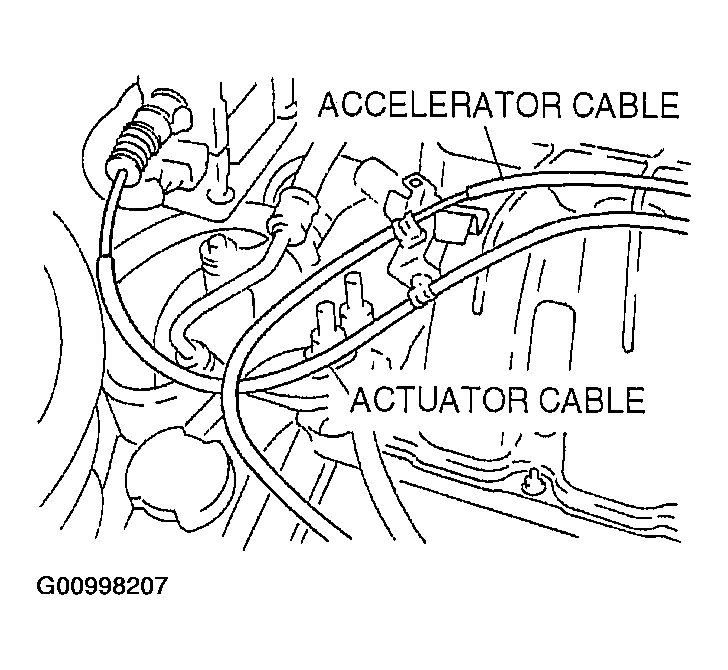

Pass the actuator cable under the accelerator cable.

Fig 4: Routing Actuator Cable
Courtesy of MAZDA MOTORS CORP.

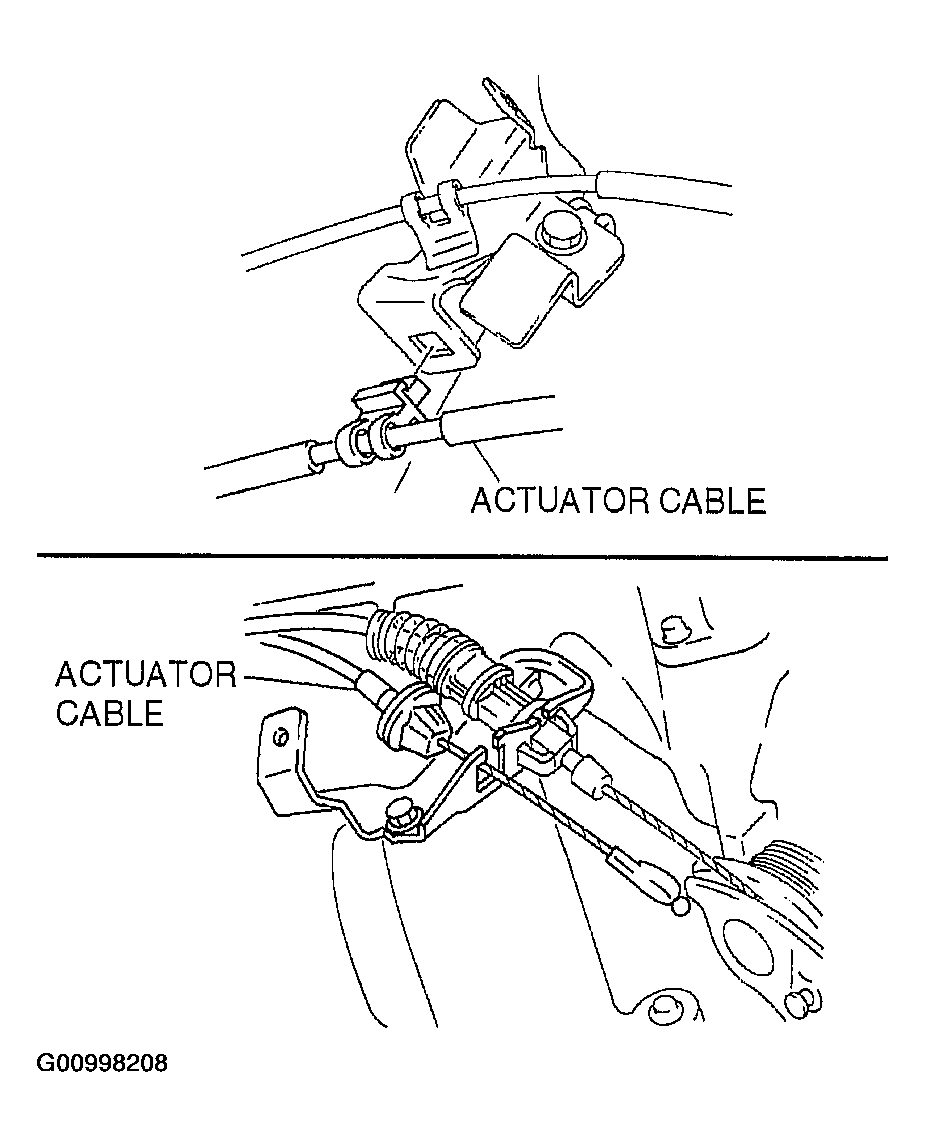

Install the grommets to the cable bracket.

Fig 5: Installing Grommets To Cable Bracket
Courtesy of MAZDA MOTORS CORP.
Move the throttle in the direction of the arrow.
Install the end fitting of the actuator cable to the throttle.
CAUTION:
- Due to the possibility of actuator cable damage, make sure there is no twisting in the cable when installing.

  Fig 6: Installing End Fitting Of Actuator Cable To Throttle
  Courtesy of MAZDA MOTORS CORP.
To adjust the free play, push or pull the actuator cable directly behind the spring two times.

Fig 7: Adjusting Free Play
Courtesy of MAZDA MOTORS CORP.
Turn the ratchet ring in the direction shown by the arrow to lock it.

Fig 8: Turning Ratchet Ring
Courtesy of MAZDA MOTORS CORP.
Slide the lock lever in the direction shown by the arrow to lock the adjuster.

Fig 9: Locking Adjuster
Courtesy of MAZDA MOTORS CORP.
Install the cover to the cruise actuator.
Install the plug hole plate. (See TIMING CHAIN REMOVAL/INSTALLATION .)
