Camber Adjustment

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Adjust the camber before adjusting the caster.

Loosen the fixing nut of the adjusting cam bolt (front lower arm front side).

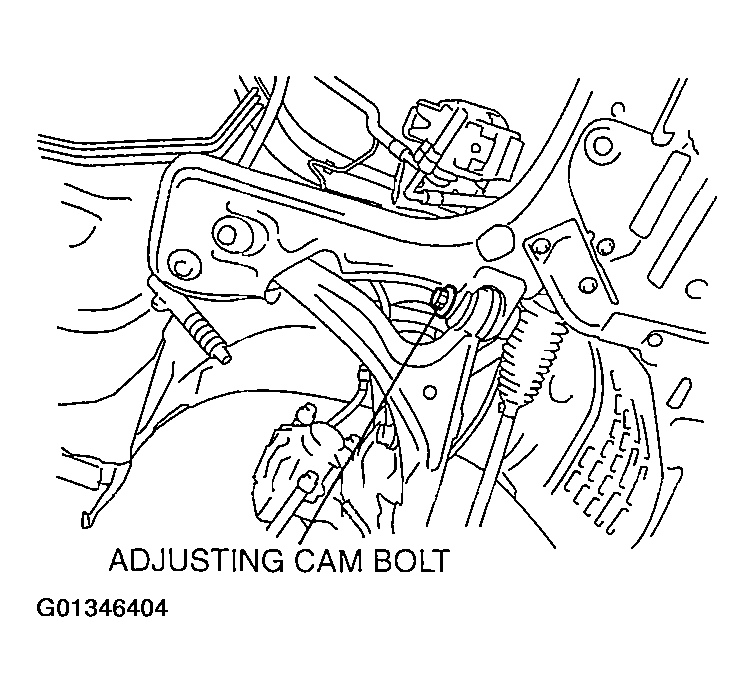

Fig 1: Locating Cam Bolt For Front Wheel
Courtesy of MAZDA MOTORS CORP.
Rotate the adjusting cam bolt in either direction to adjust the camber.
Standard Suspension

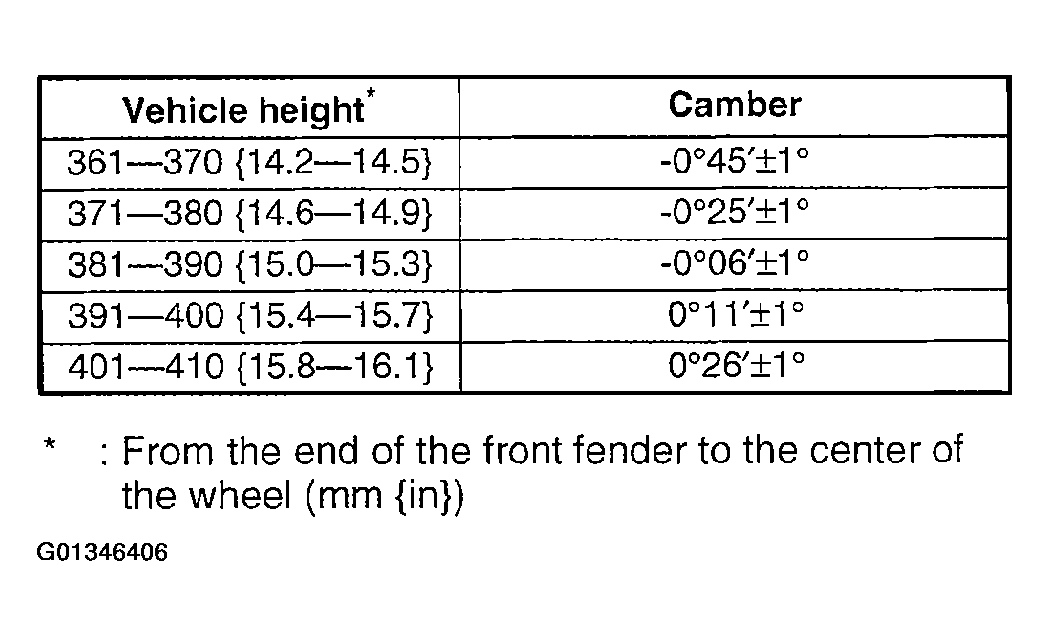

Fig 2: Front Wheel Camber Specifications (Standard Suspension)
Courtesy of MAZDA MOTORS CORP.

Sport Suspension

Fig 3: Front Wheel Camber Specifications (Sport Suspension)
Courtesy of MAZDA MOTORS CORP.

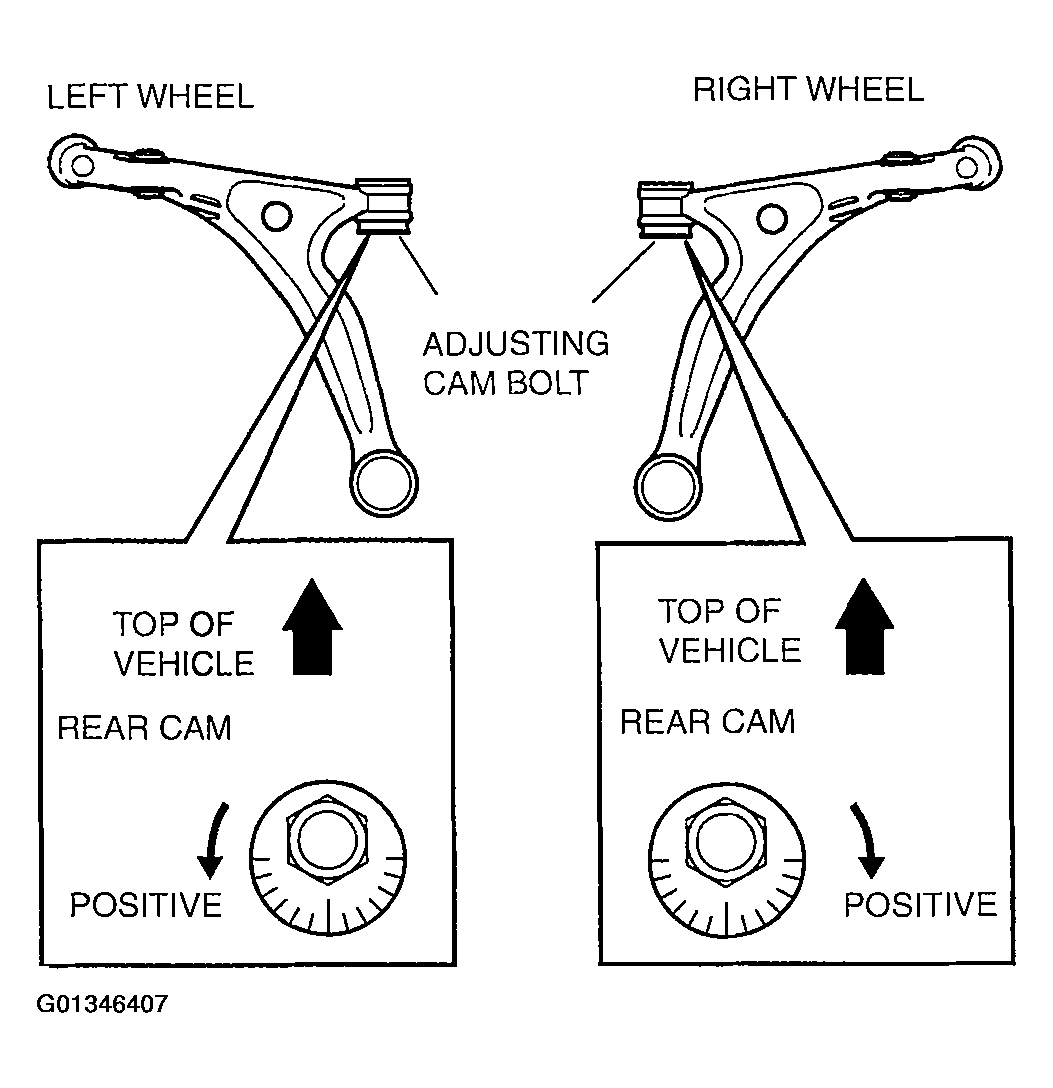

Fig 4: Identifying Cam Bolt Rotating Direction For Front Wheel Camber Adjustment
Courtesy of MAZDA MOTORS CORP.

Fig 5: Left & Right Front Wheel Adjustment
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Refer to the figure for the adjusting angle per one graduation.
Tighten the nut.
Tightening Torque

117.7-137.3 N.m {12.1-14.0 kgf.m, 86.9-101.2 ft.lb}
Adjust the toe-in.

Fig 6: Identifying Front Wheel Cam Bolt Adjusting Scale

Courtesy of MAZDA MOTORS CORP.
