Total Toe-in Adjustment

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the installation nut of the adjusting cam bolt.

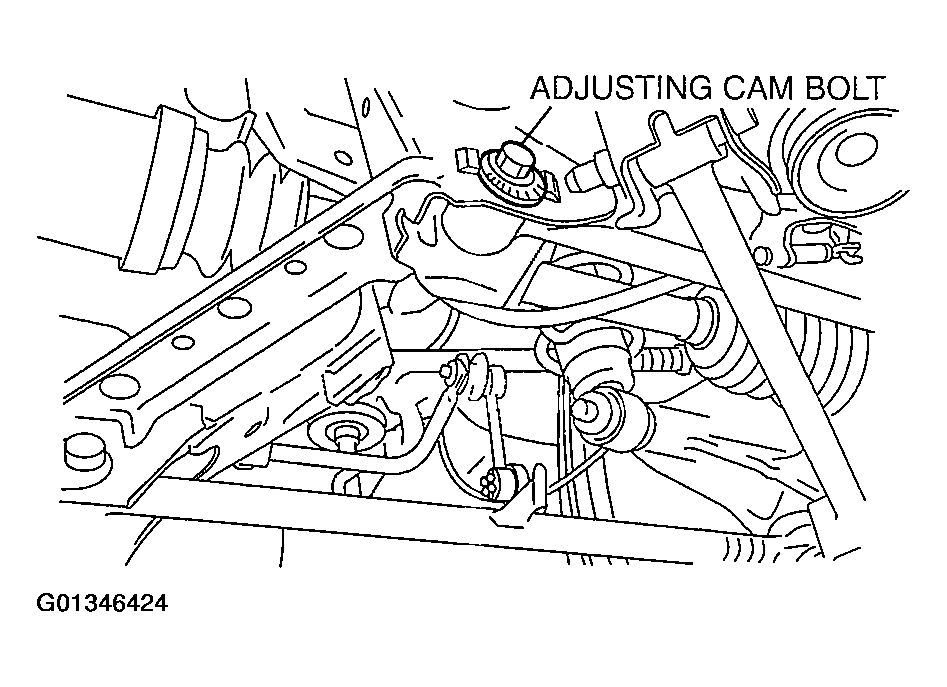

Fig 1: Locating Rear Wheel Adjusting Cam Bolt
Courtesy of MAZDA MOTORS CORP.
Rotate the adjusting cam bolt in either direction to adjust the toe-in.
Standard

2+/-4 mm {0.08+/-0.15 in} (0°16`+/-20`)

Fig 2: Identifying Rear Wheel Rotating Direction Of Cam Bolt
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Refer to the following figure for the adjusting angle per one graduation of the toe-in gauge.
Tighten the nut
Tightening Torque

70-95 N.m {7.2-9.6 kgf.m, 52-70 ft.lb}

Fig 3: Identifying Cam Bolt Adjustment Scale

Courtesy of MAZDA MOTORS CORP.
