Troubleshooting Index

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Possible cause lists inspection part (step) according to malfunction. Use it to immediately confirm the inspection method.

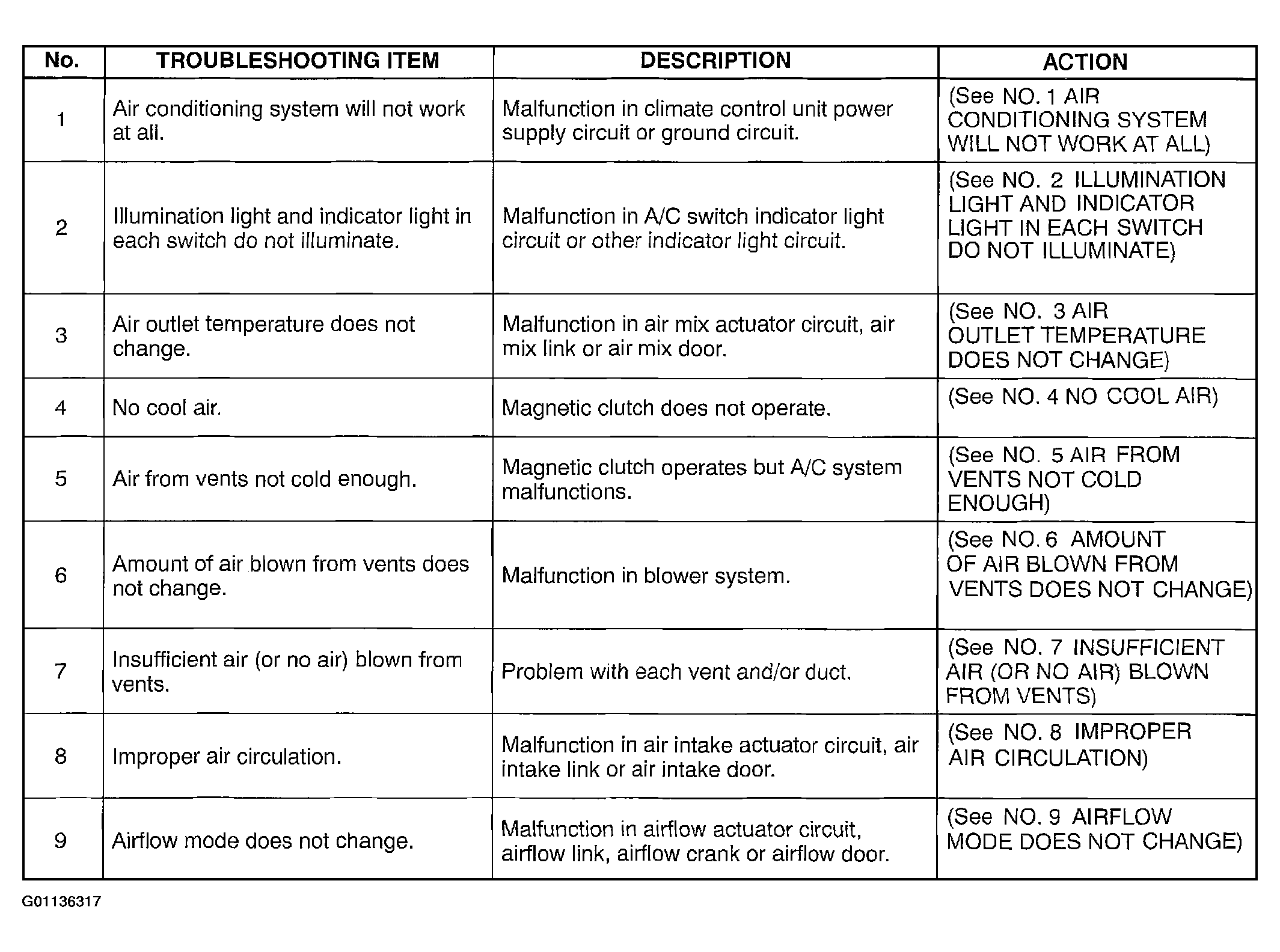

Fig 1: Troubleshooting Index

Courtesy of MAZDA MOTORS CORP.

TROUBLESHOOTING CODES

TROUBLESHOOTING CODES	DESCRIPTION
NO. 1	AIR CONDITIONING SYSTEM WILL NOT WORK AT ALL
NO. 2	ILLUMINATION LIGHT AND INDICATOR LIGHT IN EACH SWITCH DO NOT ILLUMINATE
NO. 3	AIR OUTLET TEMPERATURE DOES NOT CHANGE
NO. 4	NO COOL AIR
NO. 5	AIR FROM VENTS NOT COLD ENOUGH
NO. 6	AMOUNT OF AIR BLOWN FROM VENTS DOES NOT CHANGE
NO. 7	INSUFFICIENT AIR (OR NO AIR) BLOWN FROM VENTS
NO. 8	IMPROPER AIR CIRCULATION
NO. 9	AIRFLOW MODE DOES NOT CHANGE
