Blower Motor Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

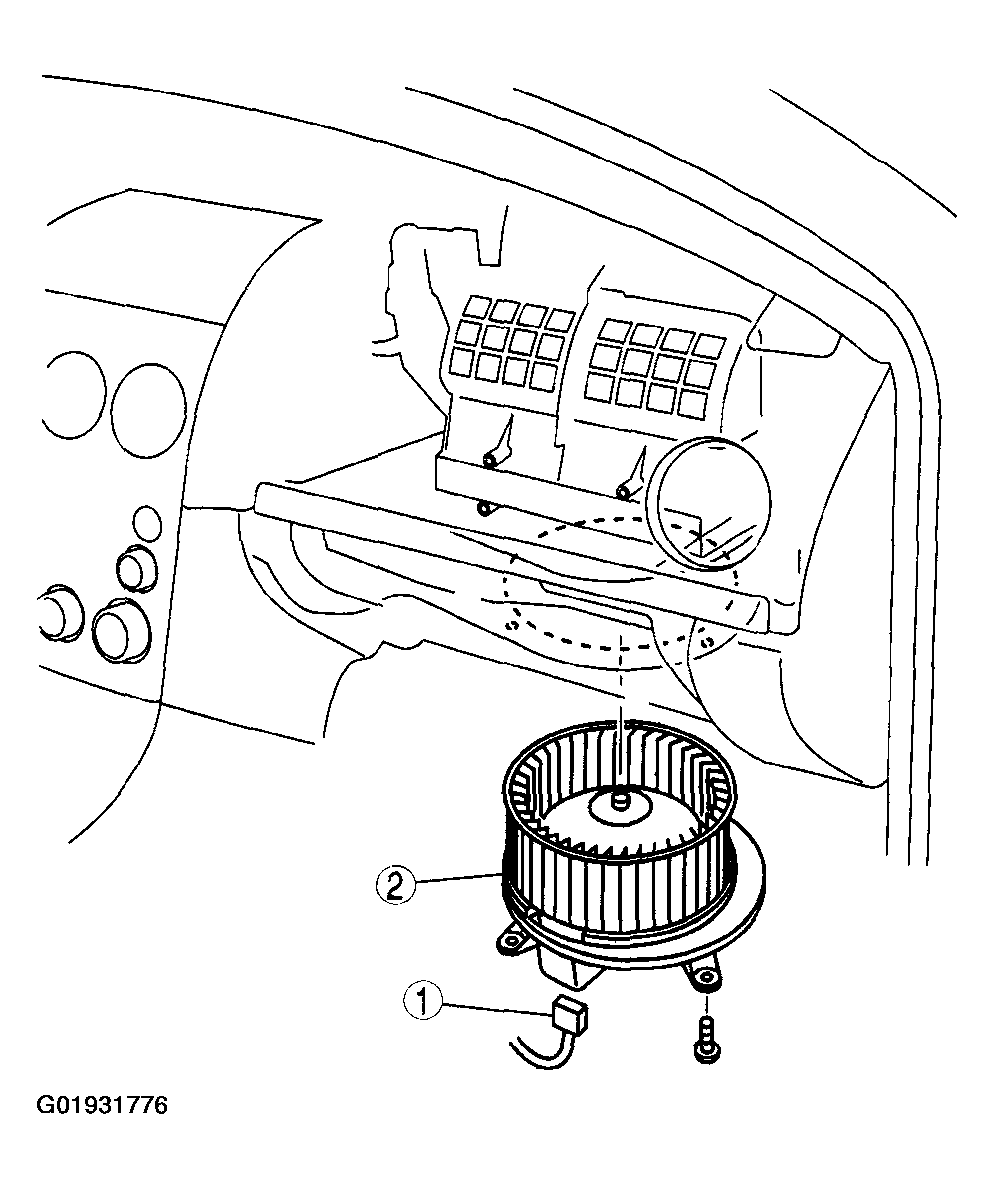

    BLOWER MOTOR REMOVAL/INSTALLATION

    G01931776
    1 Blower Motor Connector
    2 Blower Motor
  3. Install in the reverse order of removal.
