Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to BATTERY DISCONNECT .

Fig 1: Removing Interior/Map Reading Lamp Lens
Courtesy of MAZDA MOTORS CORP.
Remove the interior/map reading lamp lens.

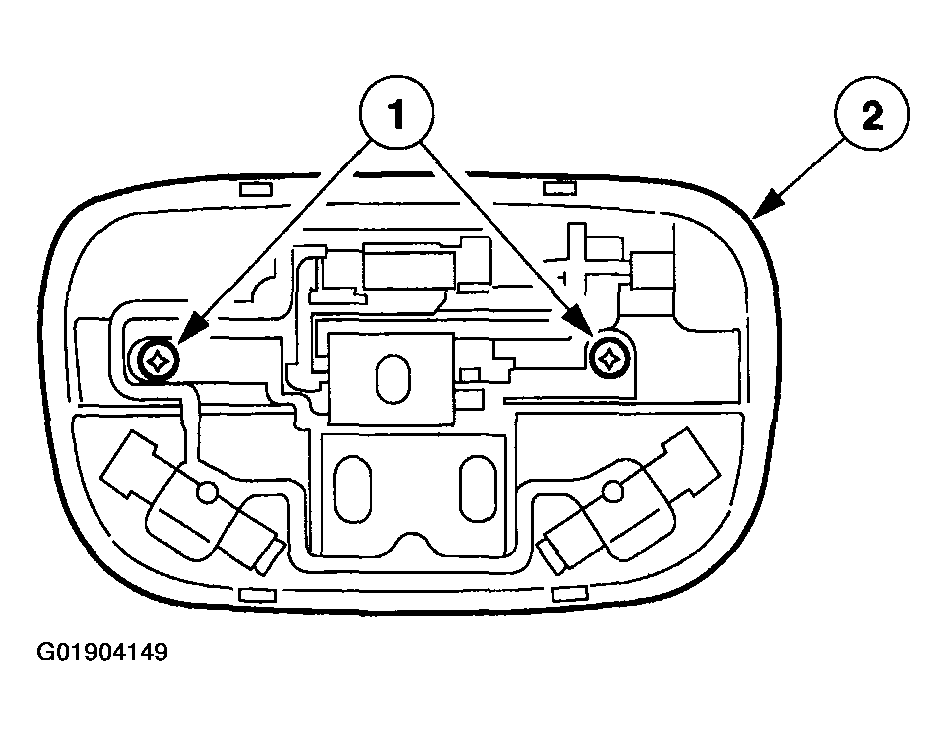

Fig 2: Removing Interior/Map Reading Lamp Assembly
Courtesy of MAZDA MOTORS CORP.
Remove the interior/map reading lamp assembly.
1. Remove the screws.
2. Remove the interior/map reading lamp.
  1. Disconnect the electrical connector.
To install, reverse the removal procedure.
