Console Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- For MTX vehicle, remove the shift lever knob.

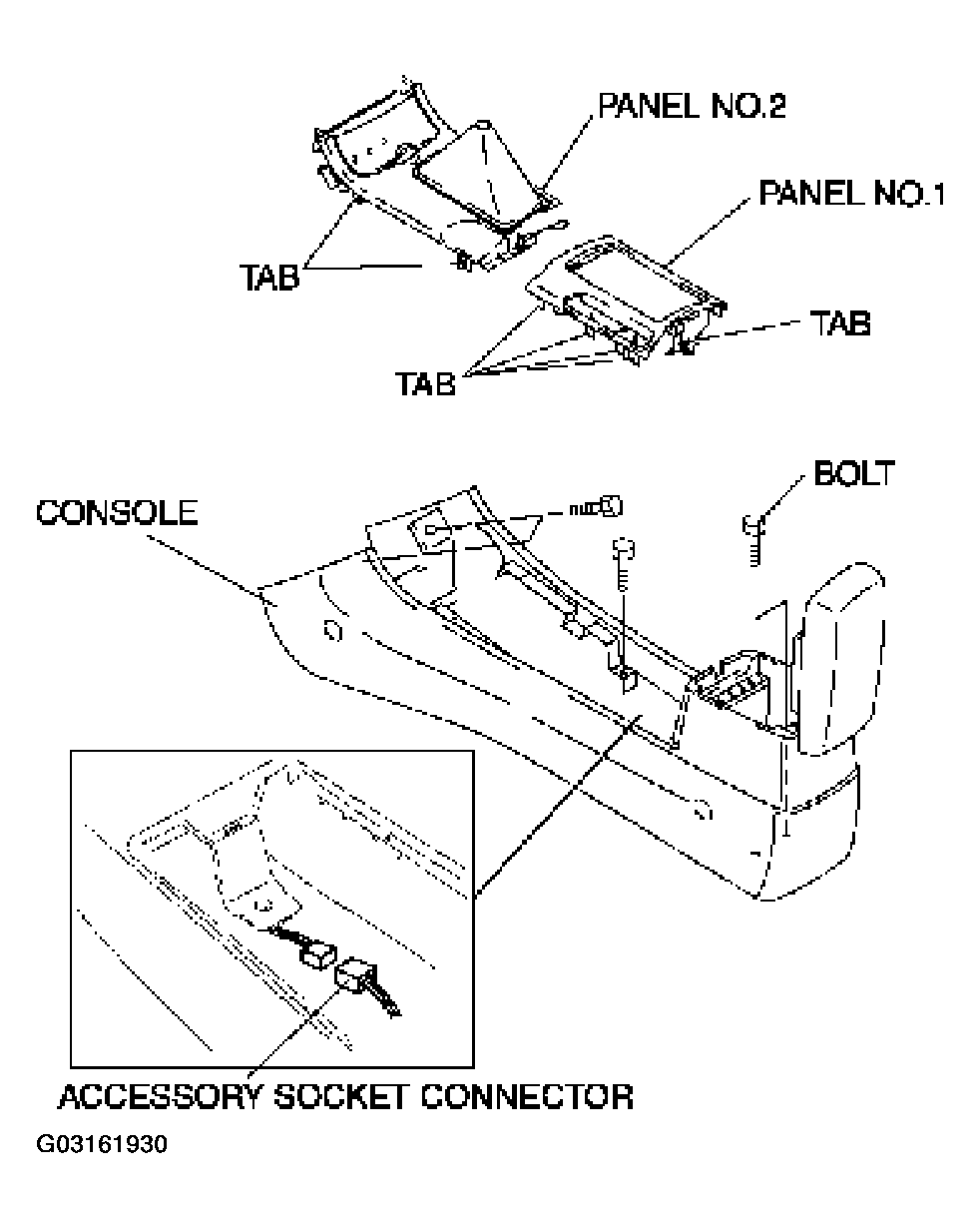

- Remove the panel No.1 using a tape-wrapped screw driver.
- Remove the panel No.2 using a tape-wrapped screwdriver, disconnect the cigarette lighter connector, and remove the front ashtray illumination.
- Remove the bolts.
- Disconnect the accessory socket connector.
- Install in the reverse order of removal.
