Exhaust System Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

Remove in the order indicated in the table.

Fig 1: Exploded View Of Exhaust System California Emission Regulation Applicable ATX Model (Torque Specs)
Courtesy of MAZDA MOTORS CORP.

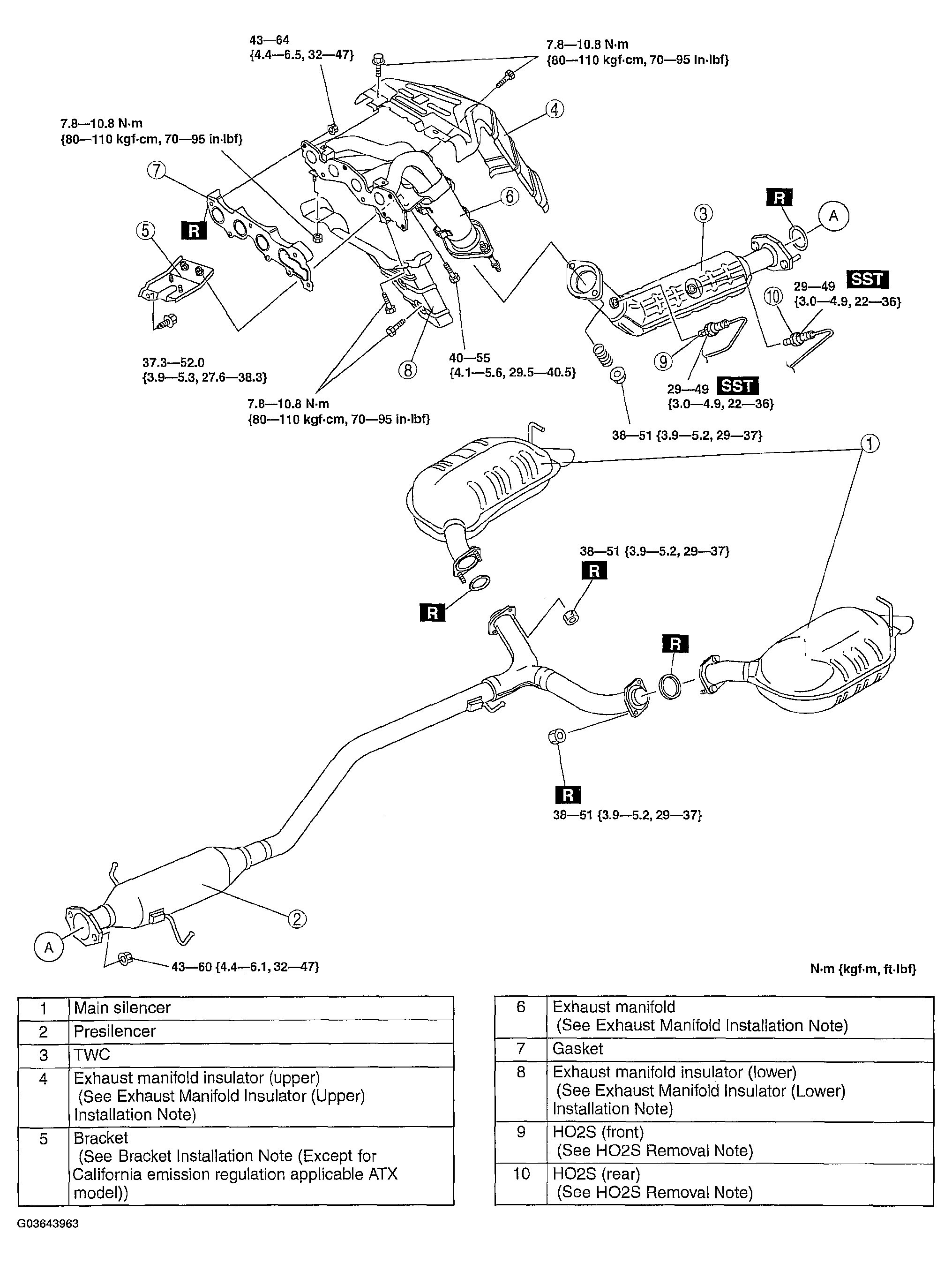

Fig 2: Exploded View Of Exhaust System Except For California Emission Regulation Applicable ATX Model (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
