Headlight Adjustment

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Adjust the tire air pressure to the specification.
Position the unloaded vehicle on a flat, level surface.
Seat one person in the driver's seat.
Position the vehicle straight ahead and perpendicular to a wall.
Set the headlights 3 m {10 ft} from the white screen.

Fig 1: Setting Up Vehicle For Adjusting Headlights
Courtesy of MAZDA MOTORS CORP.
While adjusting one headlight, mask the other.
Start the engine to charge the battery.
Turn on the lower-beam headlight.
Adjust the headlights as shown in the figure.

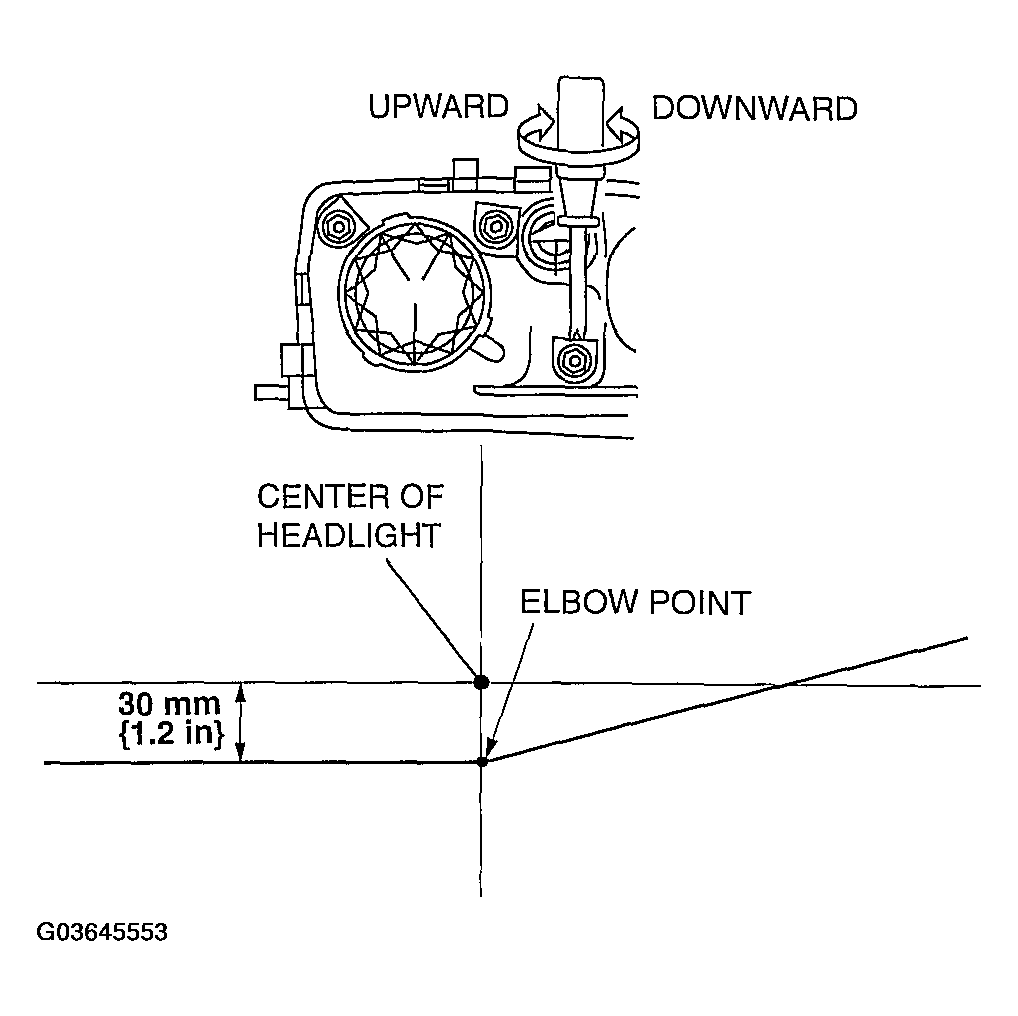

Fig 2: Adjusting Headlights
Courtesy of MAZDA MOTORS CORP.
