Thermostat Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS .) (See ENGINE COOLANT REPLACEMENT .)
Remove in the order indicated in the table.

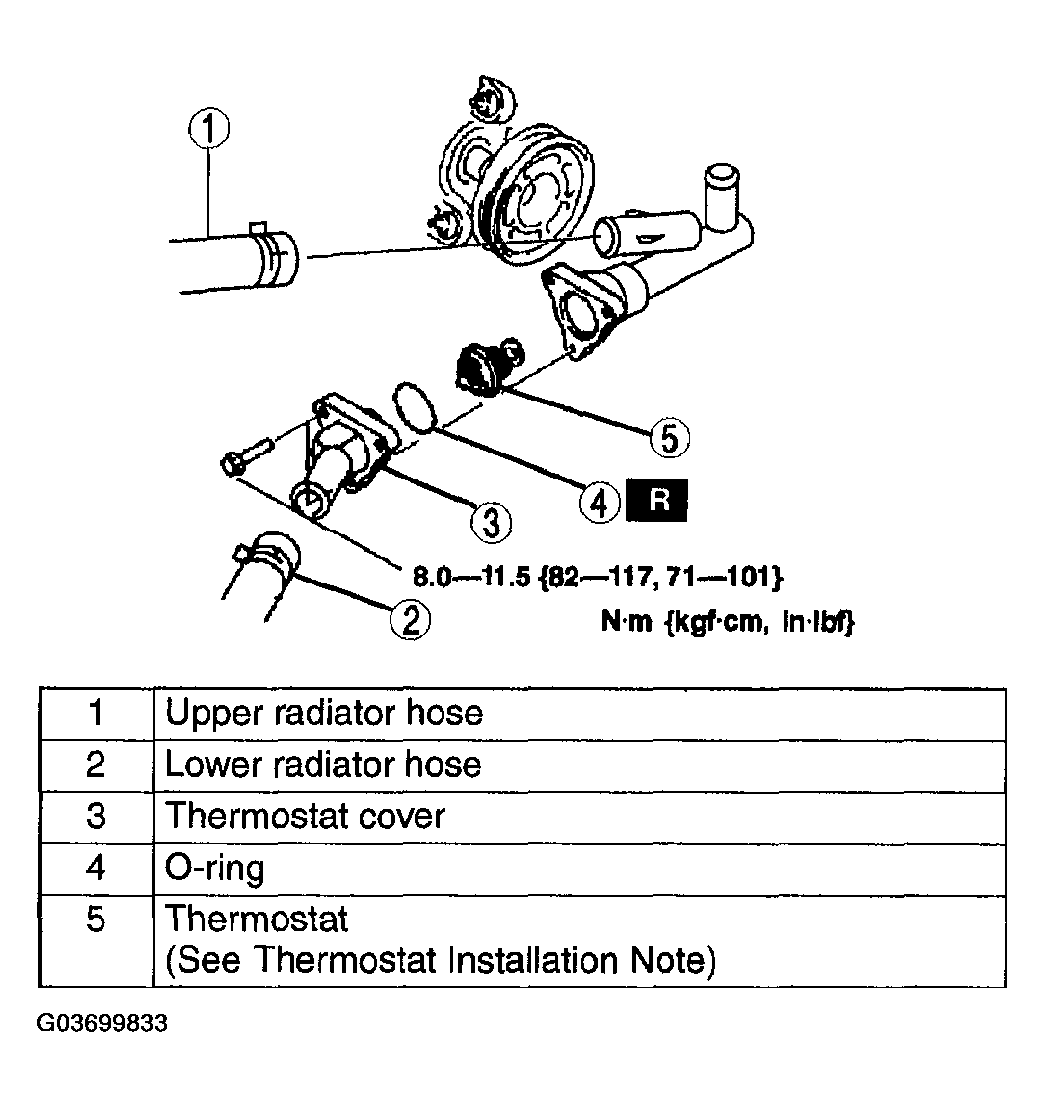

Fig 1: Identifying Thermostat Components
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
