Wheel Hub Bolt Replacement

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the brake caliper component and disc plate.

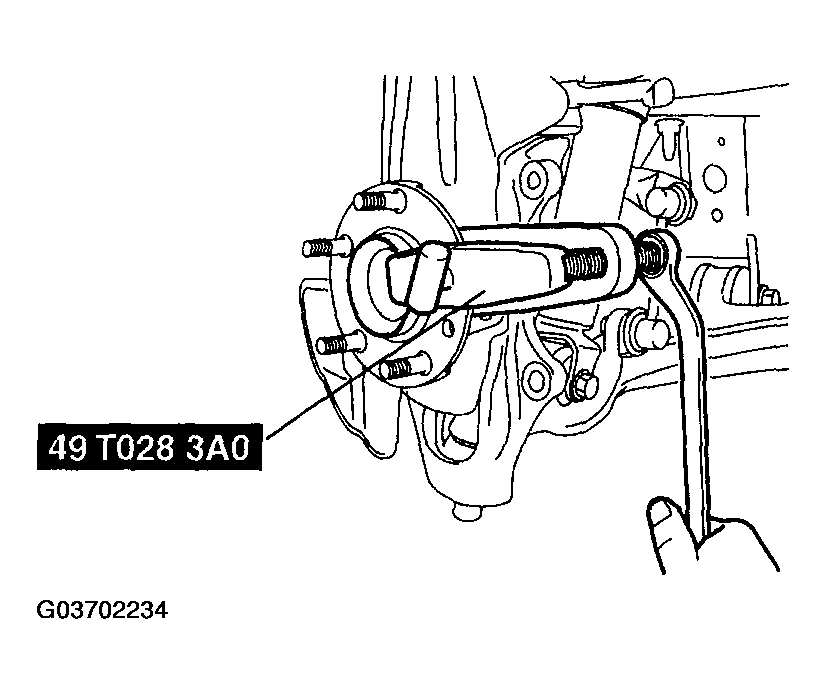

Remove the wheel hub bolt using the SST as shown in the figure.
Place a new wheel hub bolt in the wheel hub.

Fig 1: Removing Wheel Hub Bolt Using SST
Courtesy of MAZDA MOTORS CORP.

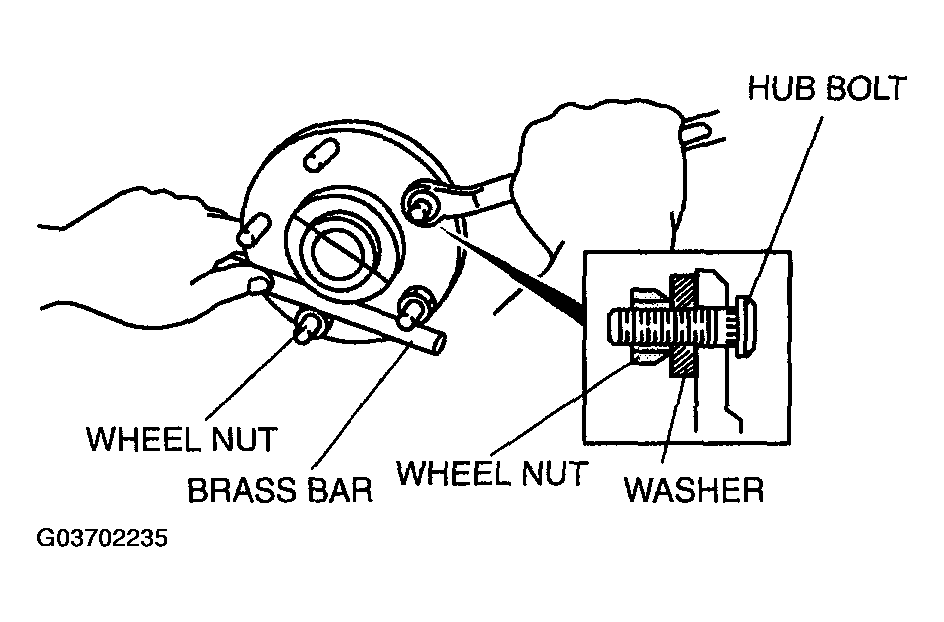

Install the wheel hub bolt by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.

Fig 2: Installing Wheel Hub Bolt
Courtesy of MAZDA MOTORS CORP.
