Power Outer Mirror Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
    • If not as specified, replace the power outer mirror switch.

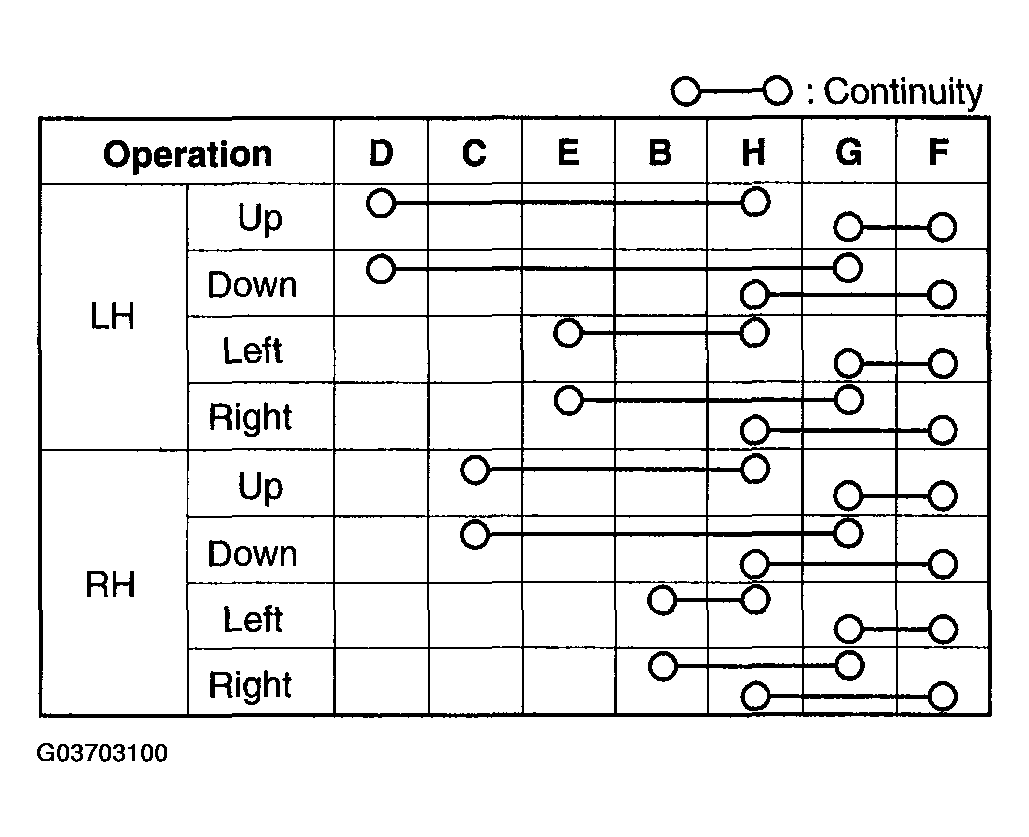

    Fig 1: Power Outer Mirror Switch Continuity Operation Chart
    G03703100Courtesy of MAZDA MOTORS CORP.

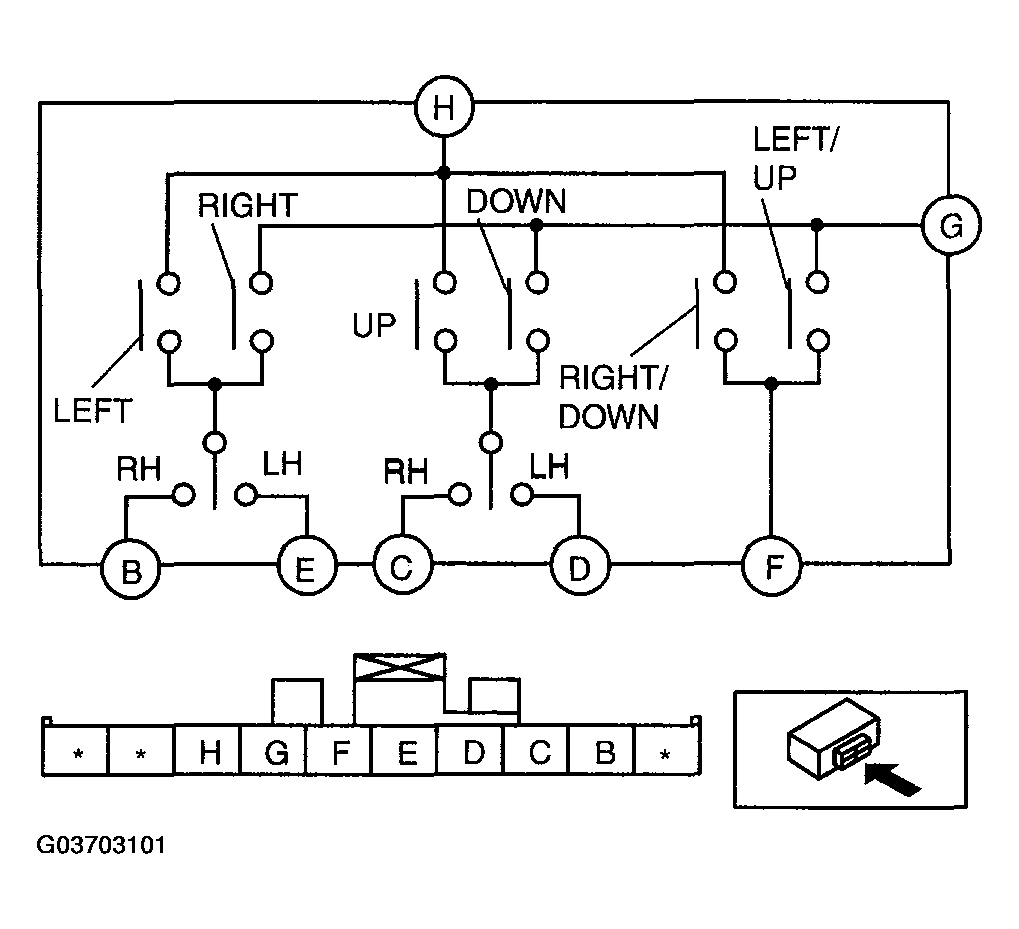

    Fig 2: Inspecting Continuity Between The Power Outer Mirror Switch Terminals Using Ohmmeter
    G03703101Courtesy of MAZDA MOTORS CORP.
