Rear Door Lower Latch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door lower trim. (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION .)
  2. Remove the rear door upper trim. (See REAR DOOR UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the front seat belt retractor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  4. Remove the rear door release handle. (See REAR DOOR RELEASE HANDLE REMOVAL/INSTALLATION .)
  5. Remove bolt A.
  6. Remove bolts B, then remove the rear door lower latch.
  7. Install in the reverse order of removal.
  8. Adjust the door. (See DOOR ADJUSTMENT .)

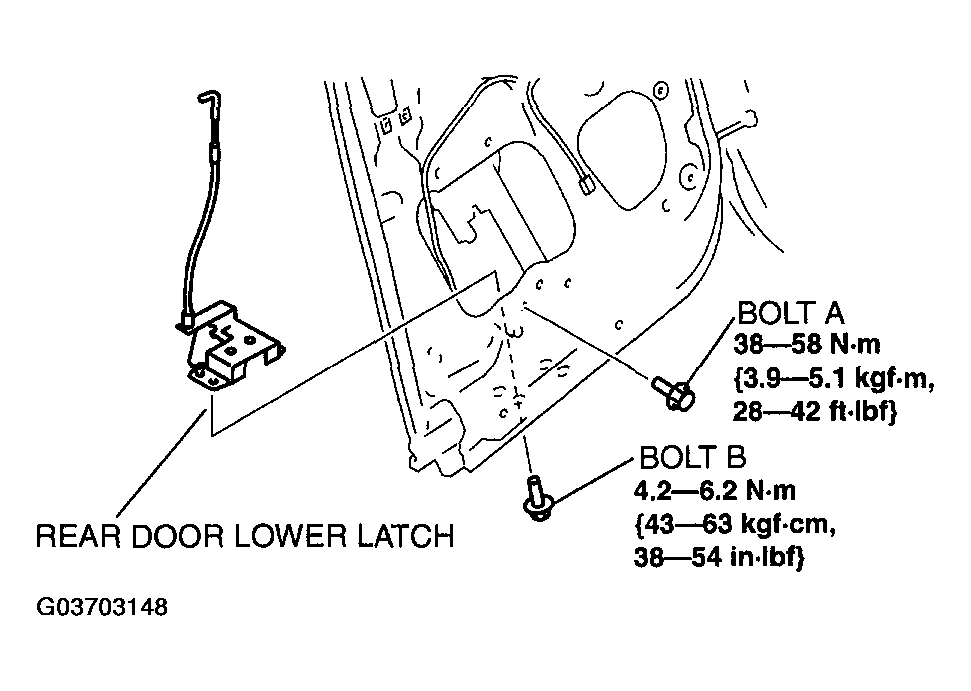

    Fig 1: Removing Rear Door Lower Latch With Torque Specifications
    G03703148Courtesy of MAZDA MOTORS CORP.
