Actuator Cable Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Install the grommet to the dash lower panel.

Fig 1: Installing Grommet To Dash Lower Panel
Courtesy of MAZDA MOTORS CORP.
Install the actuator cable to the accelerator pedal.

Fig 2: Installing Actuator Cable To Accelerator Pedal
Courtesy of MAZDA MOTORS CORP.
Slide the lock lever in the direction shown by the arrow in Fig 3 to unlock the adjuster.

Fig 3: Sliding Lock Lever
Courtesy of MAZDA MOTORS CORP.
Turn the ratchet ring to release lock in the direction shown by the arrow in Fig 4.

Fig 4: Turning Ratchet Ring
Courtesy of MAZDA MOTORS CORP.

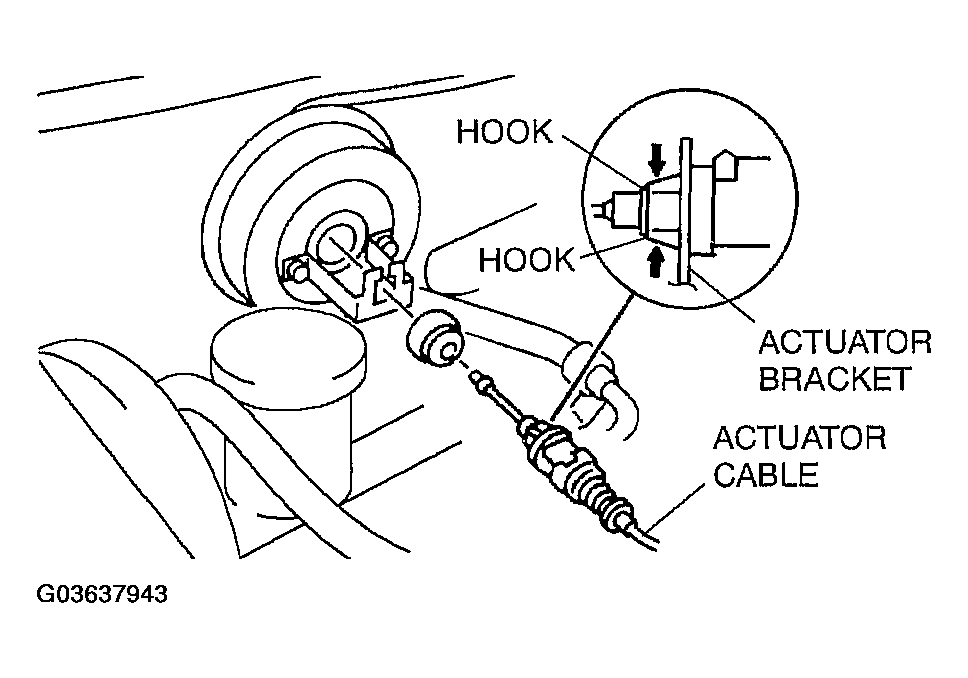

Insert the grommet into the actuator bracket.

Fig 5: Inserting Grommet Into Actuator Bracket
Courtesy of MAZDA MOTORS CORP.
To adjust the free play, push or pull the actuator cable directly behind the spring two times.

Fig 6: Pushing Actuator Cable
Courtesy of MAZDA MOTORS CORP.
Turn the ratchet ring in the direction shown by the arrow in Fig 7 to lock it.

Fig 7: Turning Ratchet Ring
Courtesy of MAZDA MOTORS CORP.
Slide the lock lever in the direction shown by the arrow in Fig 8 to lock the adjuster.

Fig 8: Sliding Lock Lever
Courtesy of MAZDA MOTORS CORP.
