Actuator Cable Removal

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

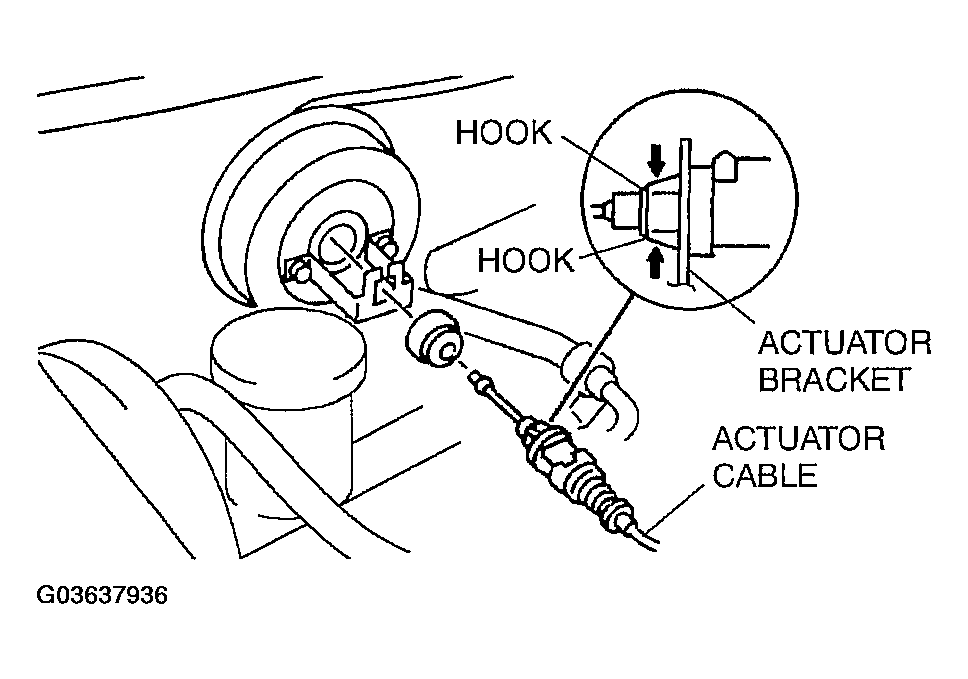

Loosen the nut, and remove the actuator cable.

Fig 1: Removing Actuator Cable
Courtesy of MAZDA MOTORS CORP.
Press the tabs of the bush, and remove it from the accelerator pedal.

Fig 2: Removing Accelerator Pedal
Courtesy of MAZDA MOTORS CORP.
Press the tabs of the grommet, and remove it from the dash lower panel.
Push the actuator cable through the dash lower panel to remove it.

Fig 3: Pushing Actuator Cable
Courtesy of MAZDA MOTORS CORP.
