Camber Adjustment
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Adjust the camber after adjusting the caster.
- Loosen the front and rear cam nuts.

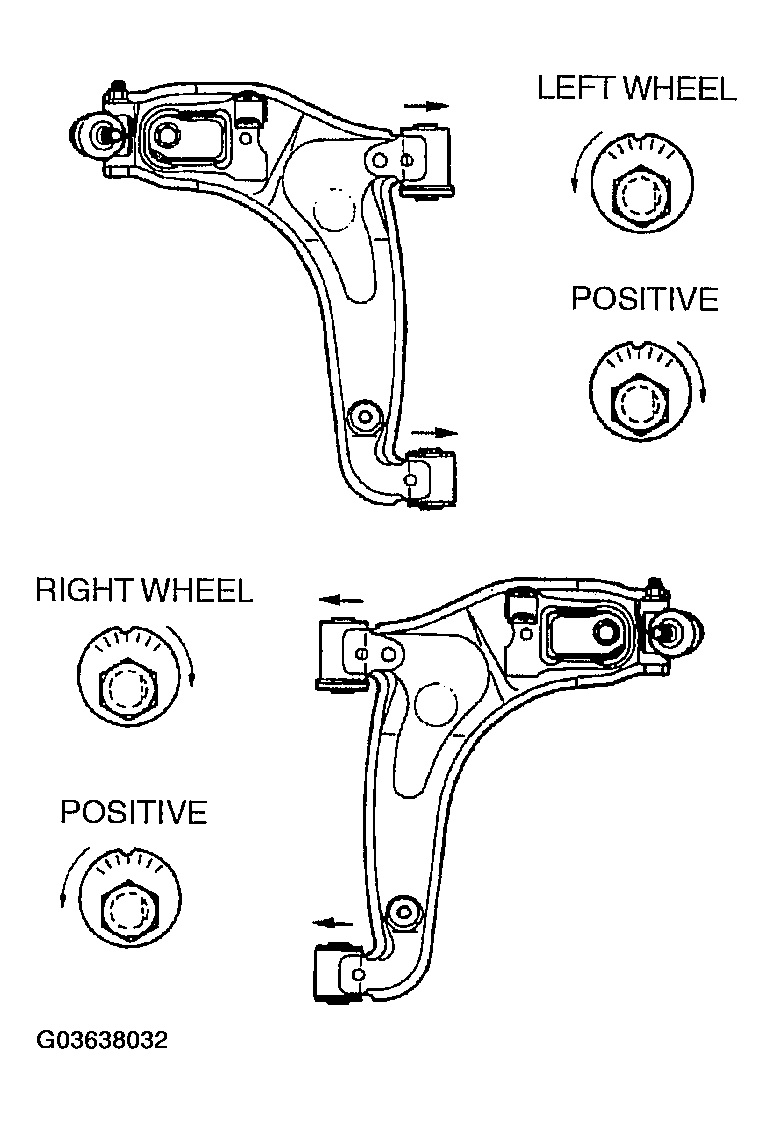

- Turn the front and rear adjusting cam bolts the same amount in the opposite direction equally to provide the correct camber angle.Fig 1: Turning Front And Rear Adjusting Cam Bolts Same Amount In Opposite Direction Equally To Provide Correct Camber Angle
Courtesy of MAZDA MOTORS CORP.
CAMBER ADJUSTMENTCamber Left wheel Right wheel Front cam Rear cam Front cam - Rear cam Positive Counterclockwise Clockwise Clockwise Counterclockwise Negative Clockwise Counterclockwise Counterclockwise Clockwise NOTE:- Turning the front cam one graduation changes the camber about 29' and the caster about 25' . Turning the rear cam one graduation changes the camber about 2' and the caster about 25'.
NOTE:- If the cam cannot be turned far enough to make the adjustment, begin adjustment of the caster again using the other cam.
- Tighten the nuts.
Tightening torque
94-112 N.m {9.5-11.5 kgf.m, 69-83 ft.lbf}
- Adjust the toe-in.
