Power Outside Mirror Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the door speaker. (See DOOR SPEAKER REMOVAL/INSTALLATION .)
Disconnect the power outside mirror connector.
Turn the power outside mirror forward.
Remove the screws.
Remove the power outside mirror.

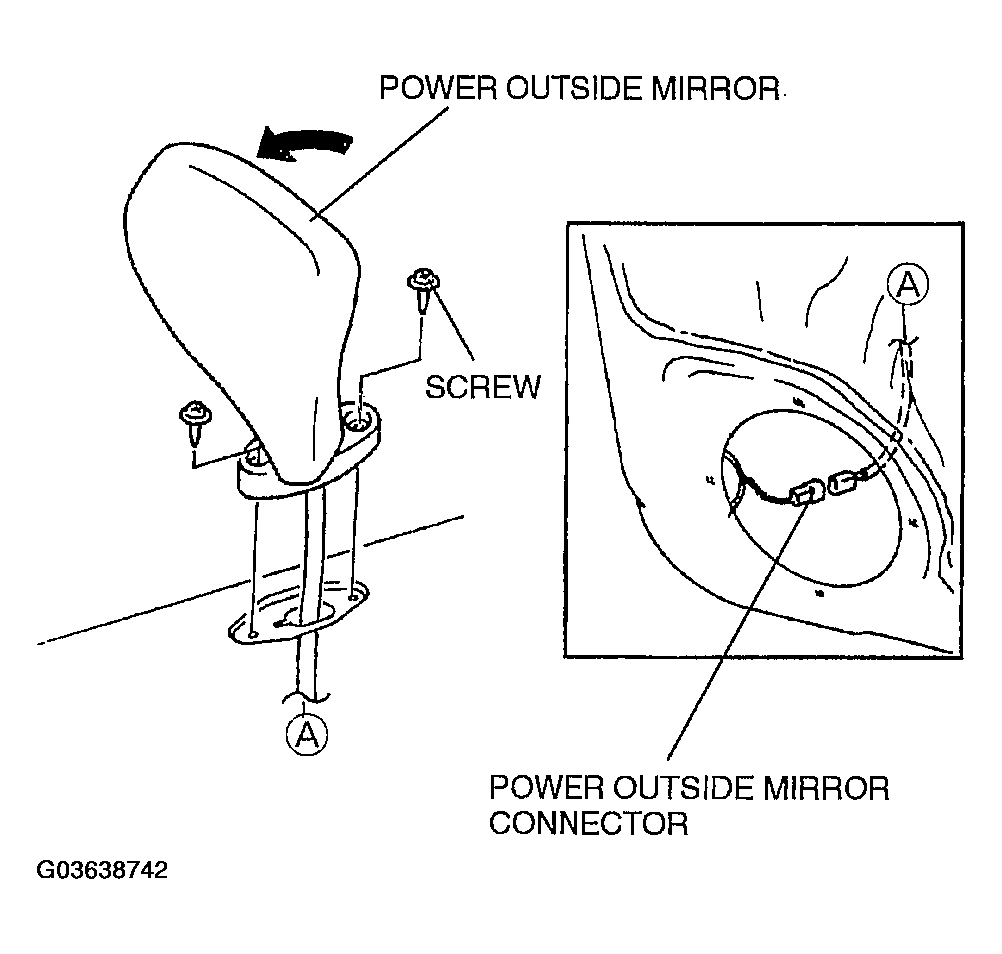

Fig 1: Removing Power Outside Mirror
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
