Center Panel Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the console.
Remove the screws.
Pull the center panel, then disengage clips A and B from the body.
Disconnect the cigarette lighter connector.

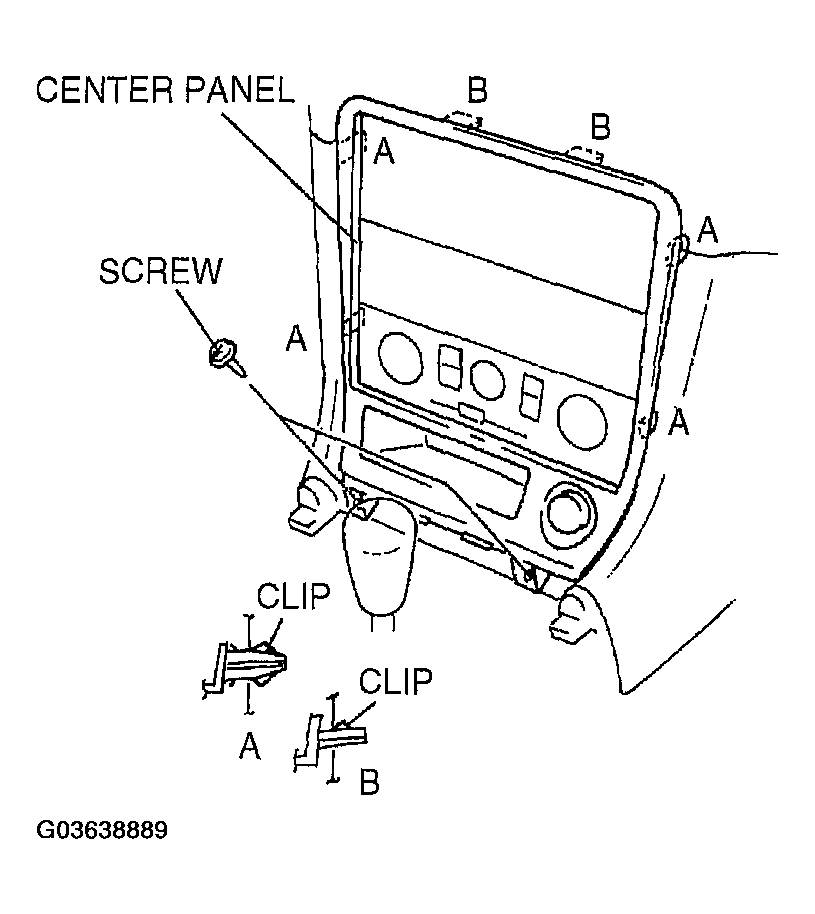

Fig 1: Removing Center Panel
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
