Hazard Warning Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the hazard warning switch terminals using an ohmmeter.
- If not as specified, replace the hazard warning switch.

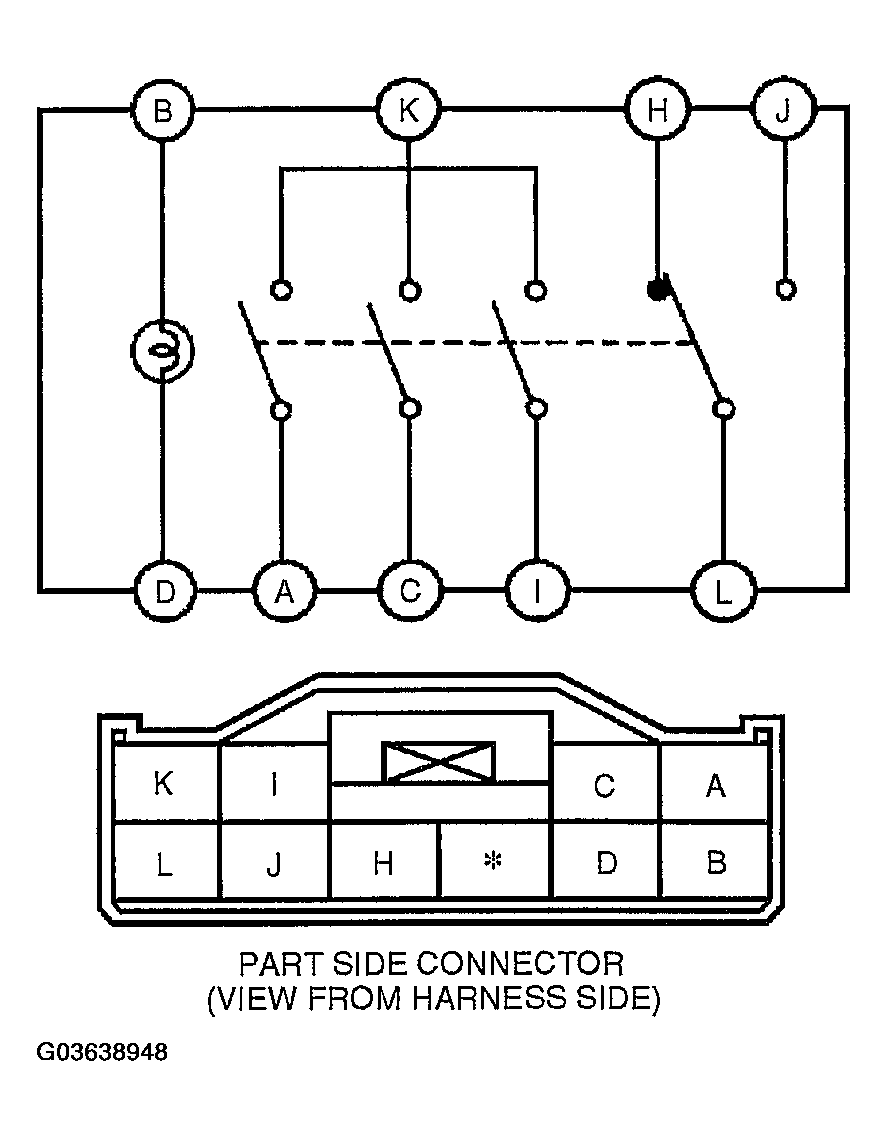

Fig 1: Hazard Warning Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

Fig 2: Inspecting Hazard Warning Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
