DTC 10:Er02

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

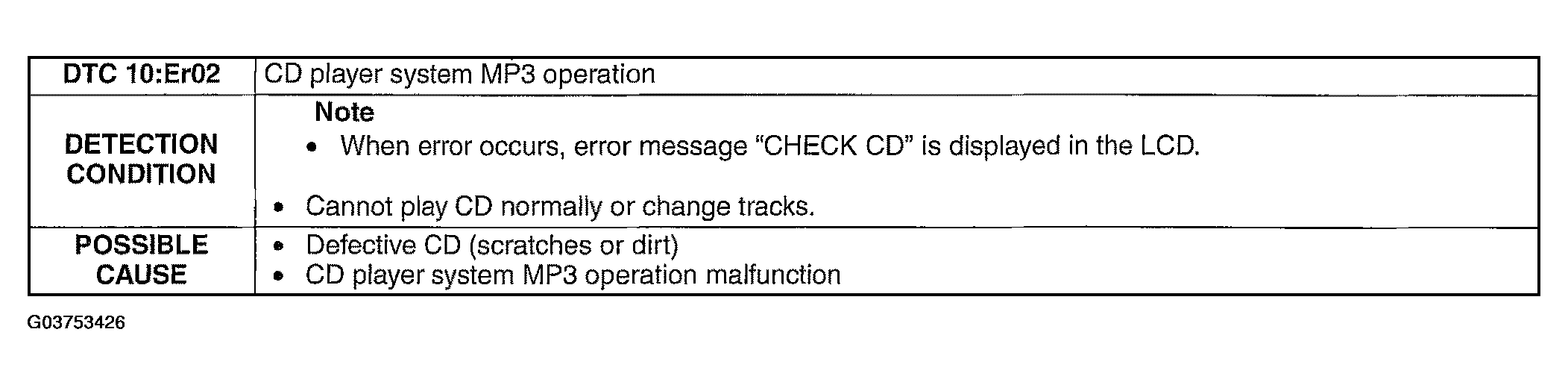

Fig 1: DTC 10:ER02 - Detection Condition & Possible Cause

Courtesy of MAZDA MOTORS CORP.

DTC 10:ER02 - INSPECTION & ACTION

STEP	INSPECTION		ACTION
1	Play the CD and change tracks. Can tracks be changed?	Yes	Go to Step 3.
		No	Cannot change to specific tracks.	Go to the next step.
		No	Cannot change to any track.	Replace the CD and try to change tracks again. If the function is normal, go to Step 3. If the function is not normal, replace the CD player system MP3 operation.
2	Verify the condition of the CD when the error occurs. Is the CD normal?	Yes	Go to the next step.
2		No	Repair (remove foreign material, clean) or replace the CD, and go to the next step.
3	Clear the DTC. Play the CD and change tracks. Is DTC 10:Er02 displayed?	Yes	Replace the CD player system MP3 operation.
3		No	DTC troubleshooting completed.
