LCD inspection
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- With audio on, first press the POWER button and hold it, then press the SEEK button (upper) for approximately 1 second.

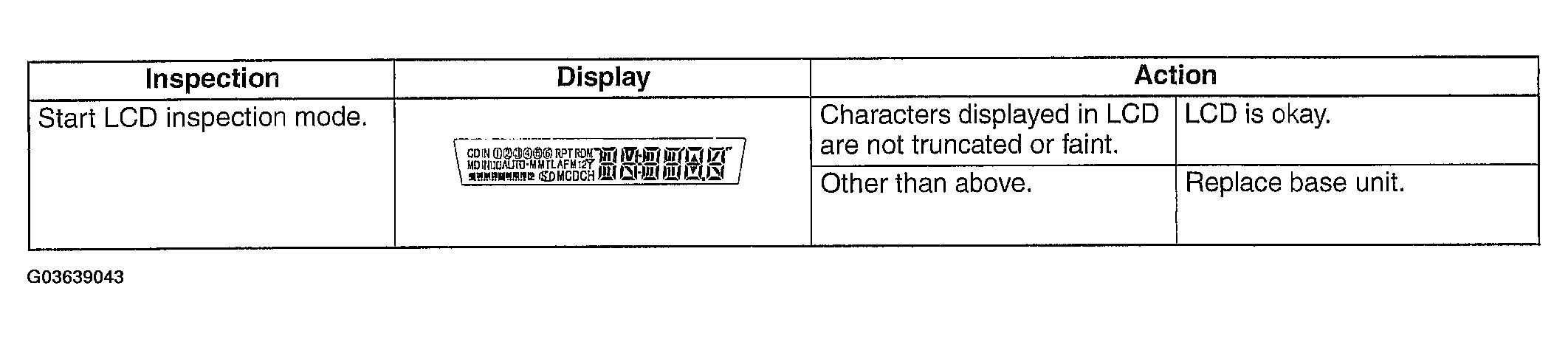

- Inspect the LCD according to the following table:
- Turn the audio off or the ignition switch to the LOCK position to stop the diagnostic assist function.
