Power Antenna Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the table.

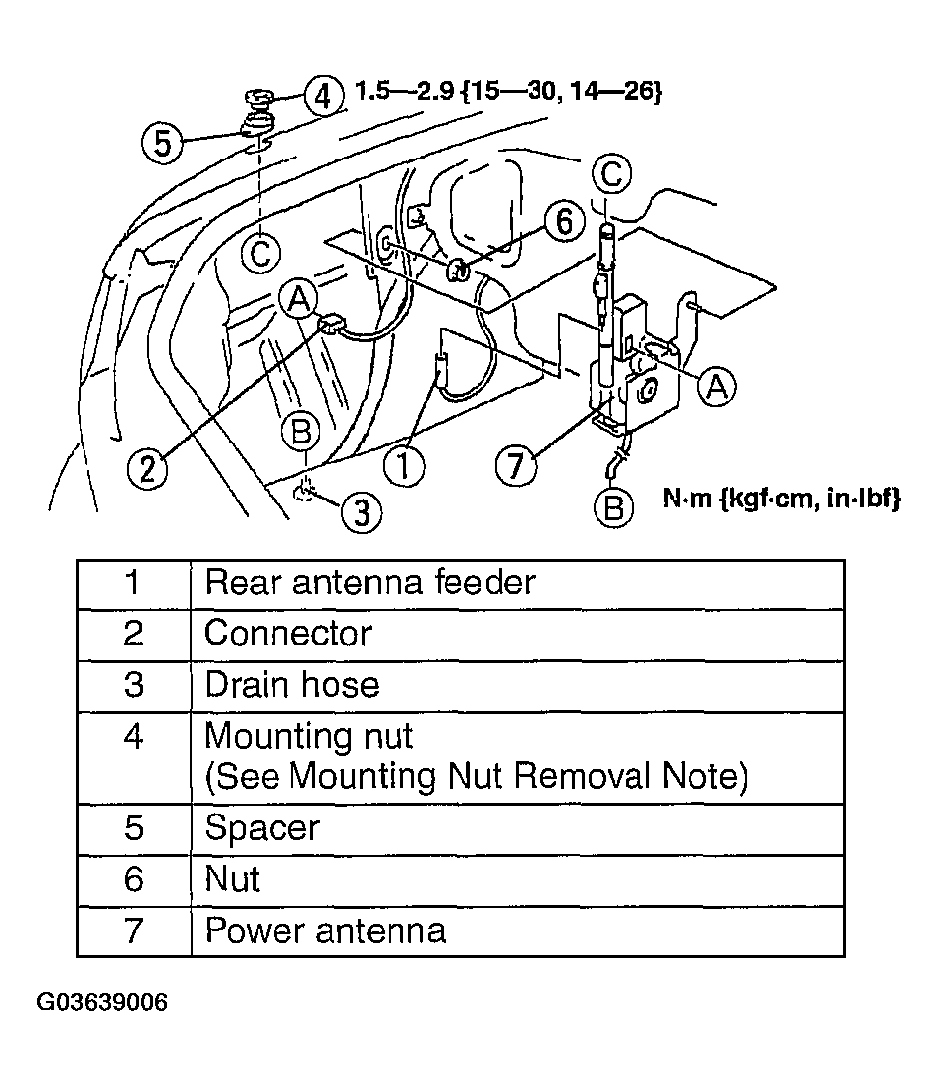

    Fig 1: Removing Power Antenna - With Torque Specifications
    G03639006Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
