Ignition System: Testing and Inspection

Steps 1 - 5:

1. Disconnect the negative battery cable.
2. Disconnect the fuel pump relay connector.
3. Verify that each high-tension lead and connector is connected properly.

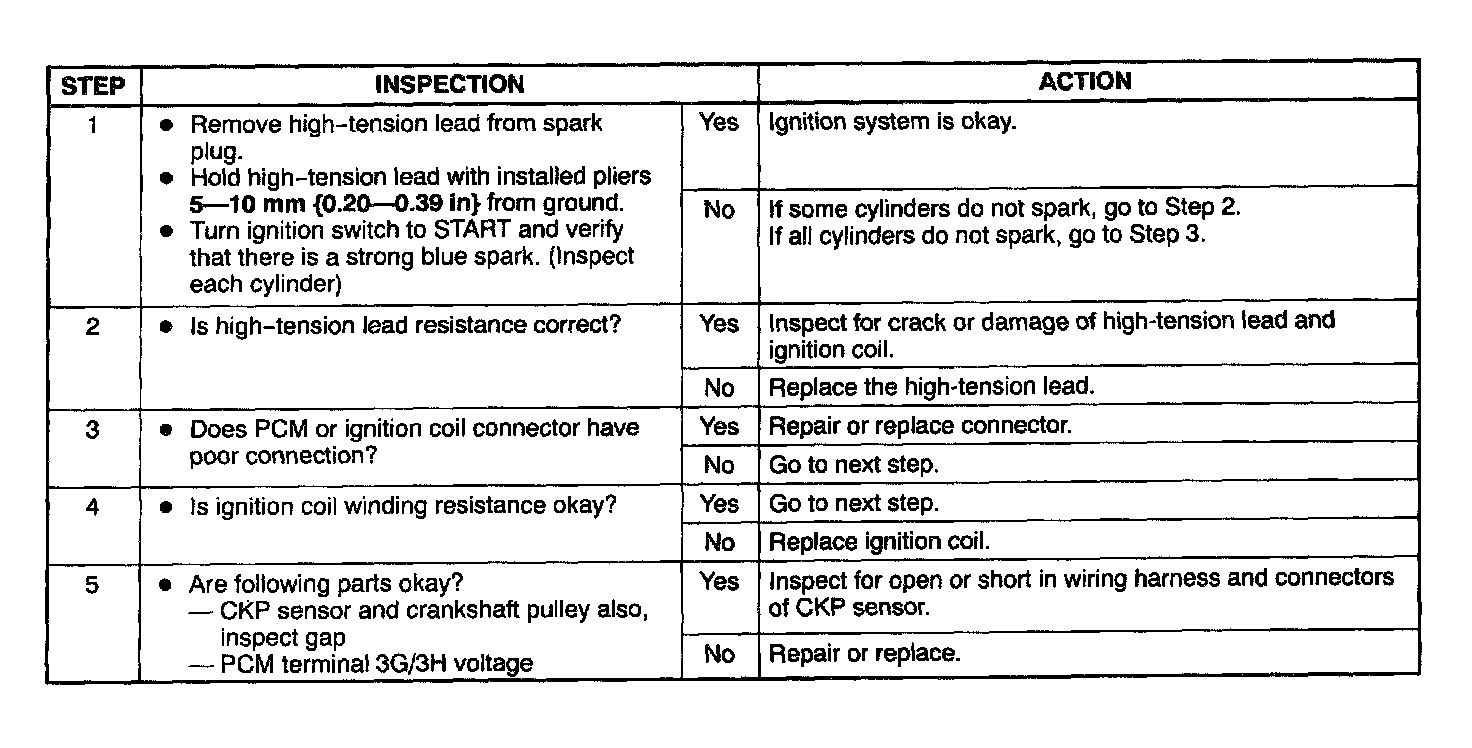

4. Inspect the ignition system in the procedure.

WARNING: High voltage in the ignition system can cause strong electrical shock which can result in serious Injury. Avoid direct contact to the vehicle body during the spark test.
