Engine Control Module

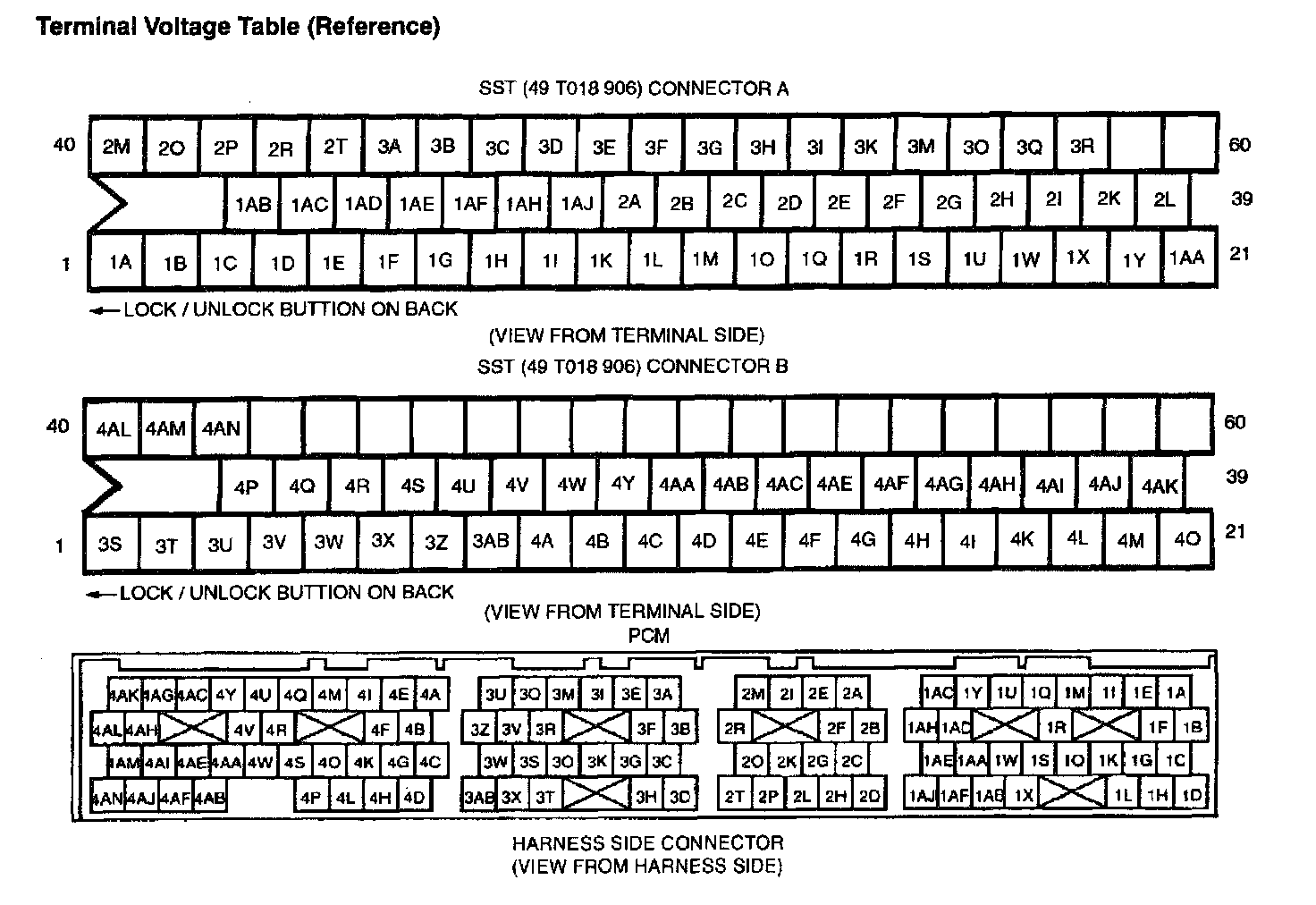

Connector View:

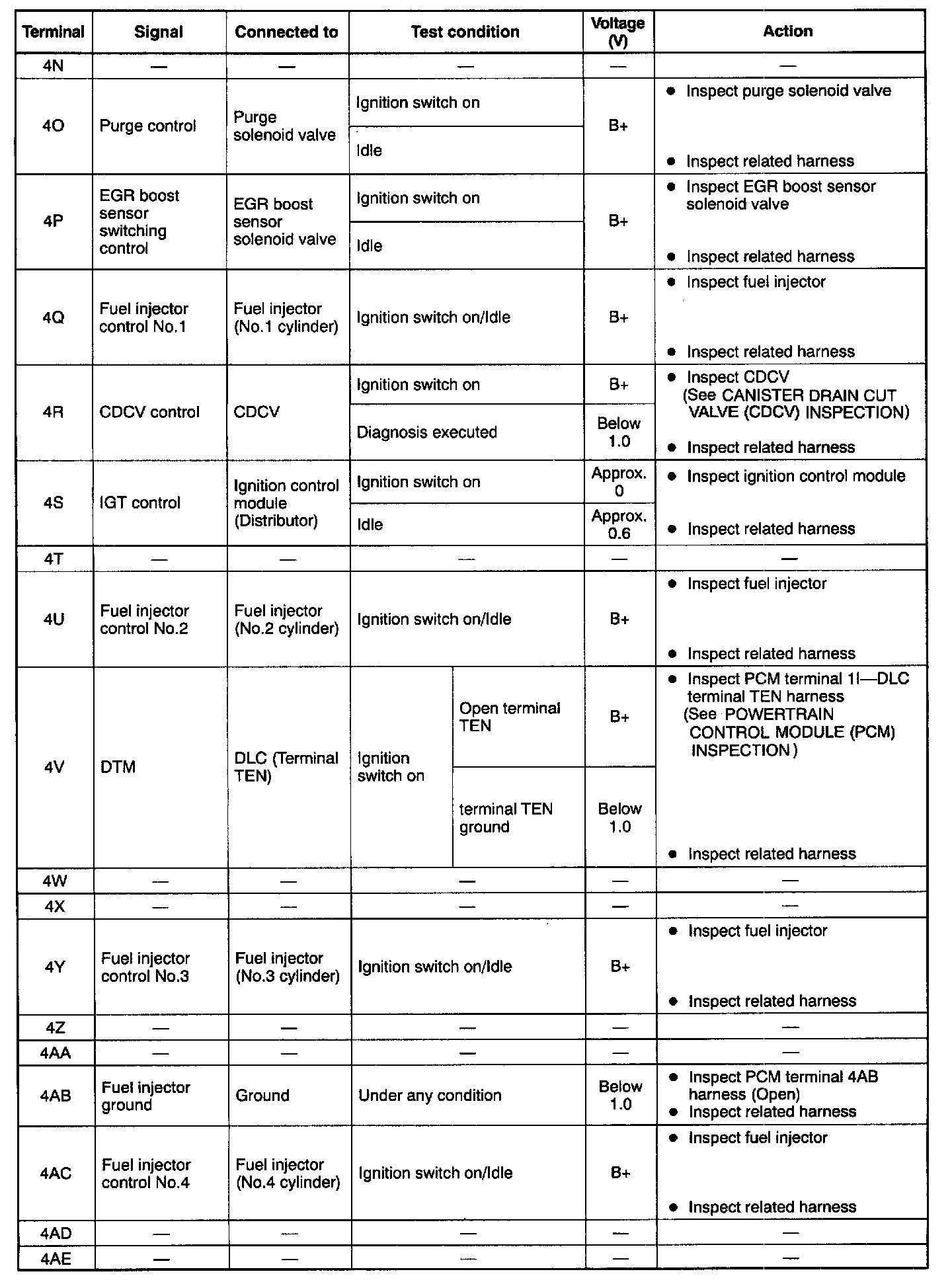

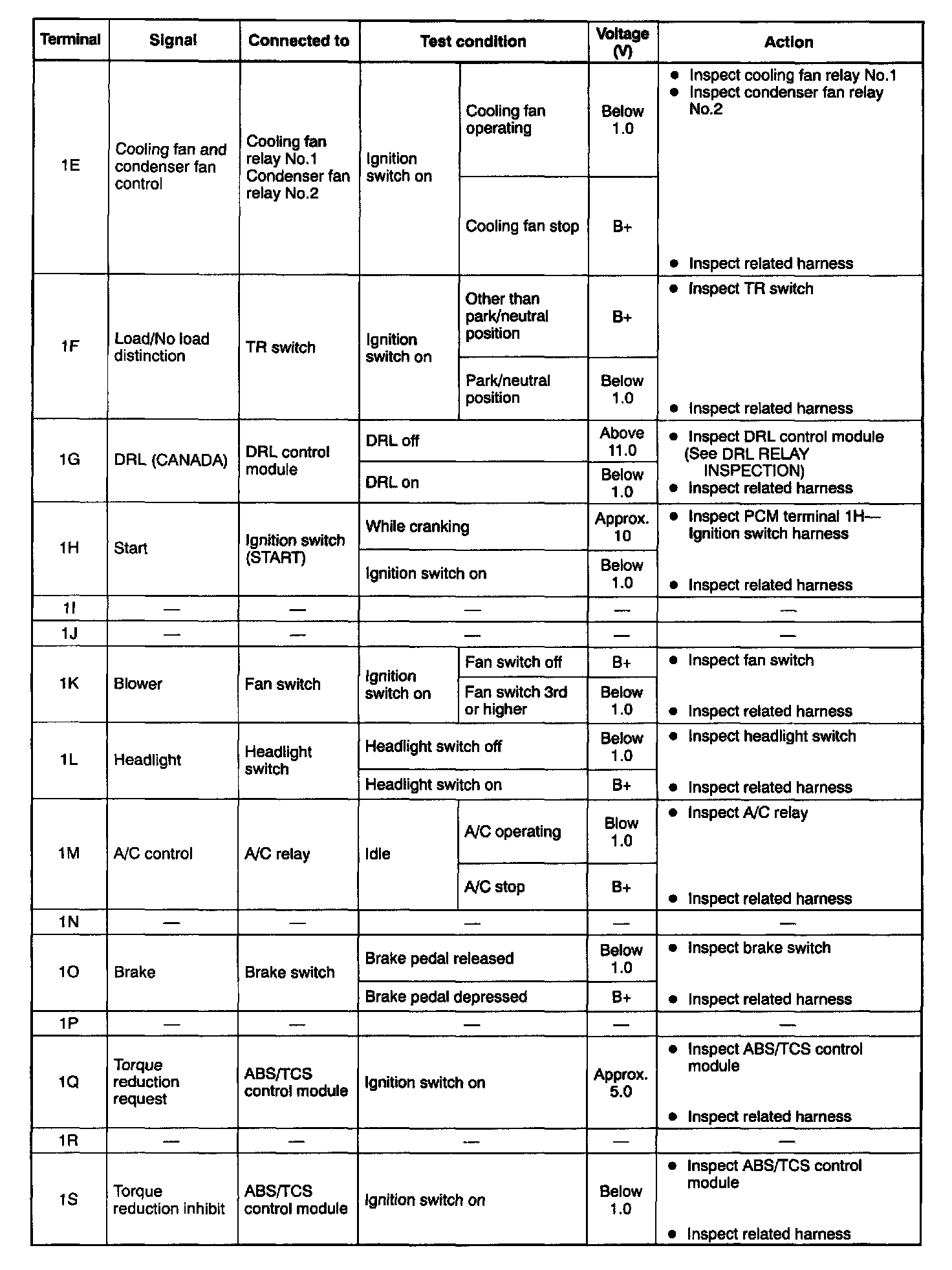

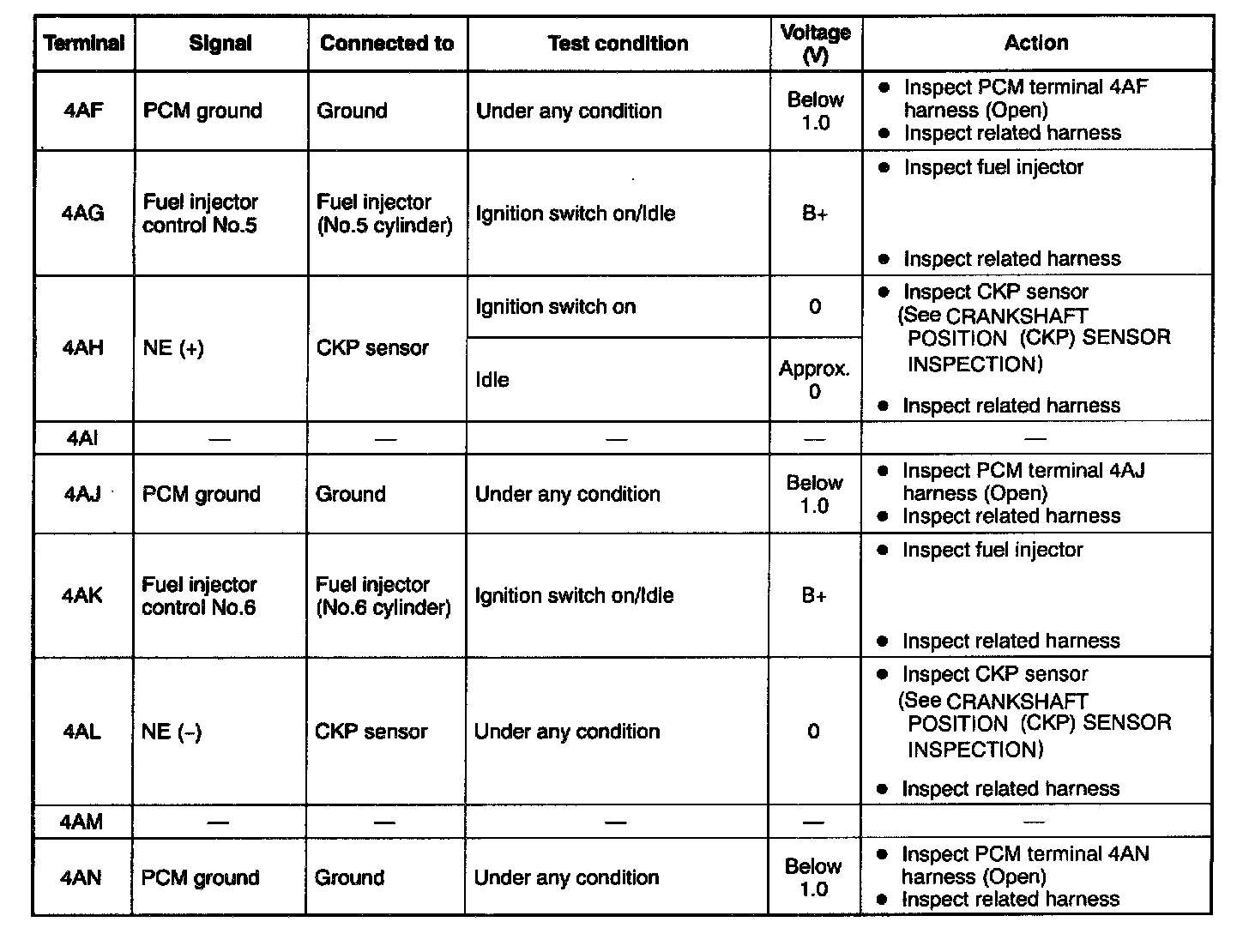

Part 1 Of 11:






Part 2 Of 11:






Part 3 Of 11:






Part 4 Of 11:






Part 5 Of 11:






Part 6 Of 11:






Part 7 Of 11:






Part 8 Of 11:






Part 9 Of 11:






Part 10 Of 11:






Part 11 Of 11:
