Keyless Entry System Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

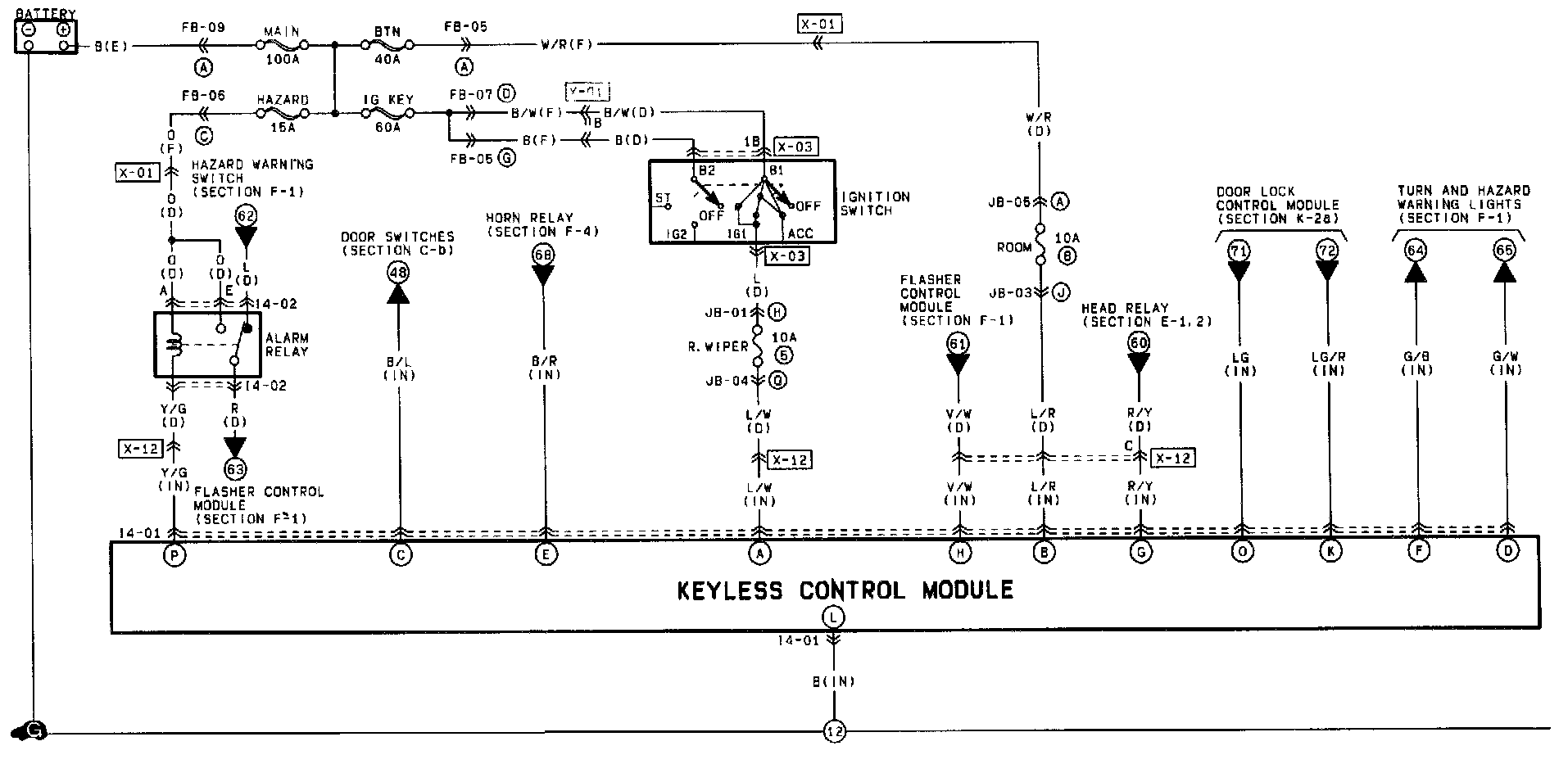

Keyless Entry System Schematic
