Cruise Control Servo: Service and Repair
1.
Disconnect the negative battery cable.
2.

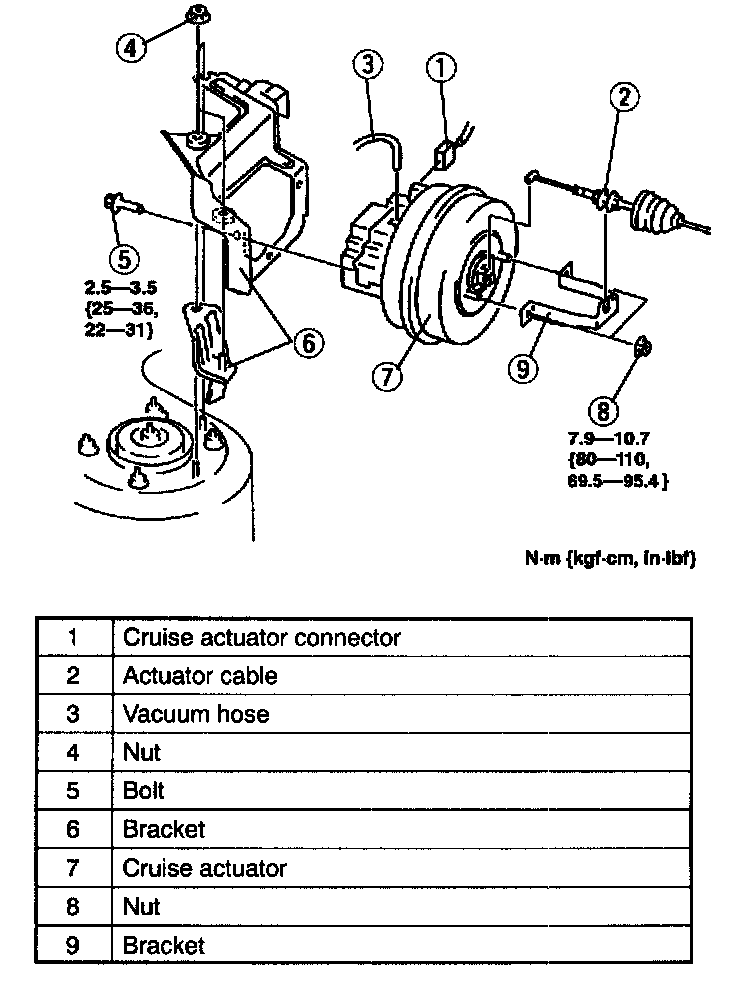

Remove in the order indicated in the table.
3.
Install in the reverse order of removal.
4.
Adjust the actuator cable.
