Basic System

Basic System Structural View (Passenger Compartment):

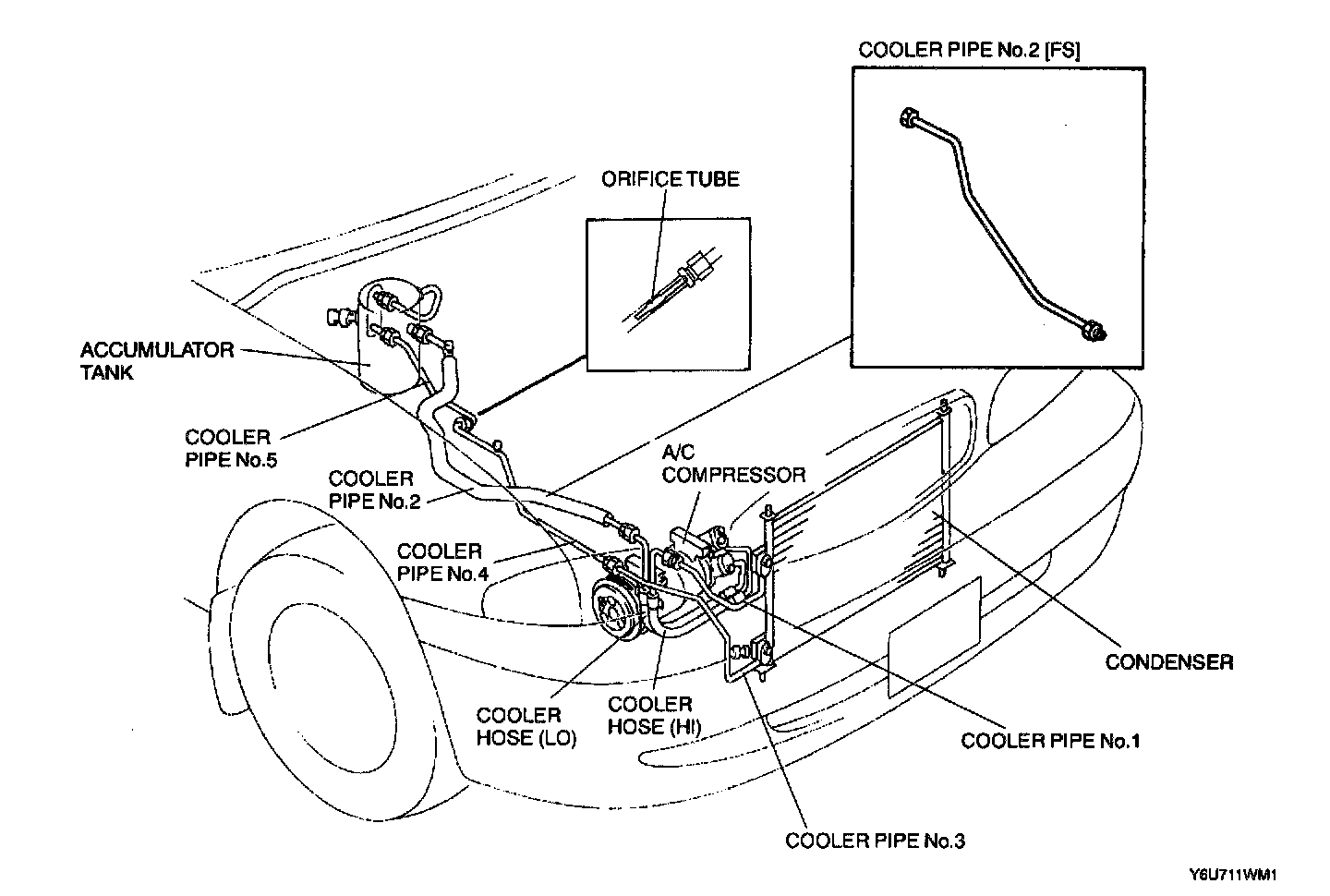

Basic System Structural View (Engine Room):

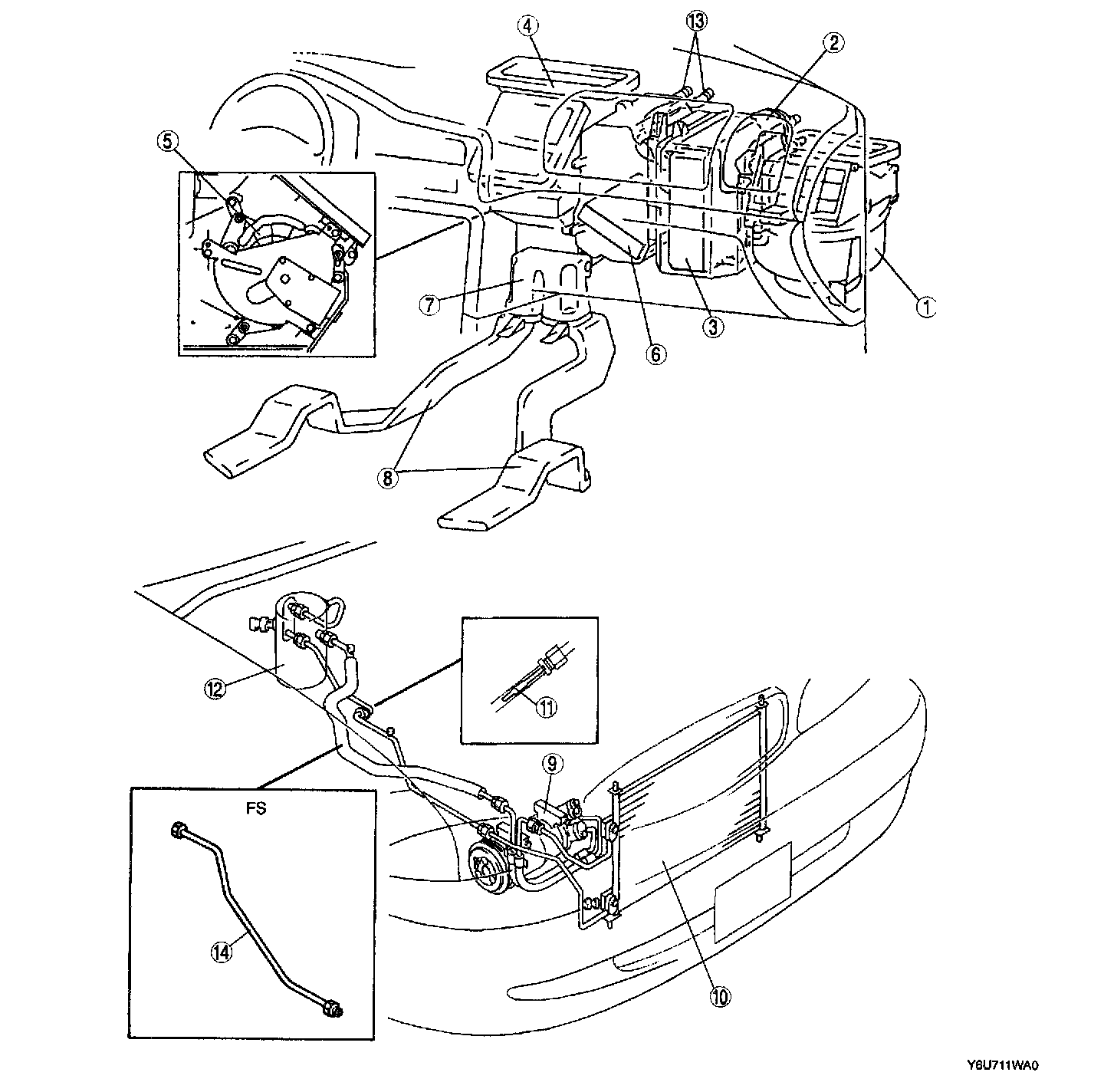

Basic System Structural View:

1. Blower unit
2. Cooling unit
3. Evaporator
4. Heater unit
5. Airflow mode main link
6. Heater core
7. Rear duct (CANADA only)
8. Rear heat duct (CANADA only)
9. A/C compressor
10. Condenser
11. Orifice tube
12. Accumulator tank
13. Heater hose
14. Refrigerant lines
