System Specifications

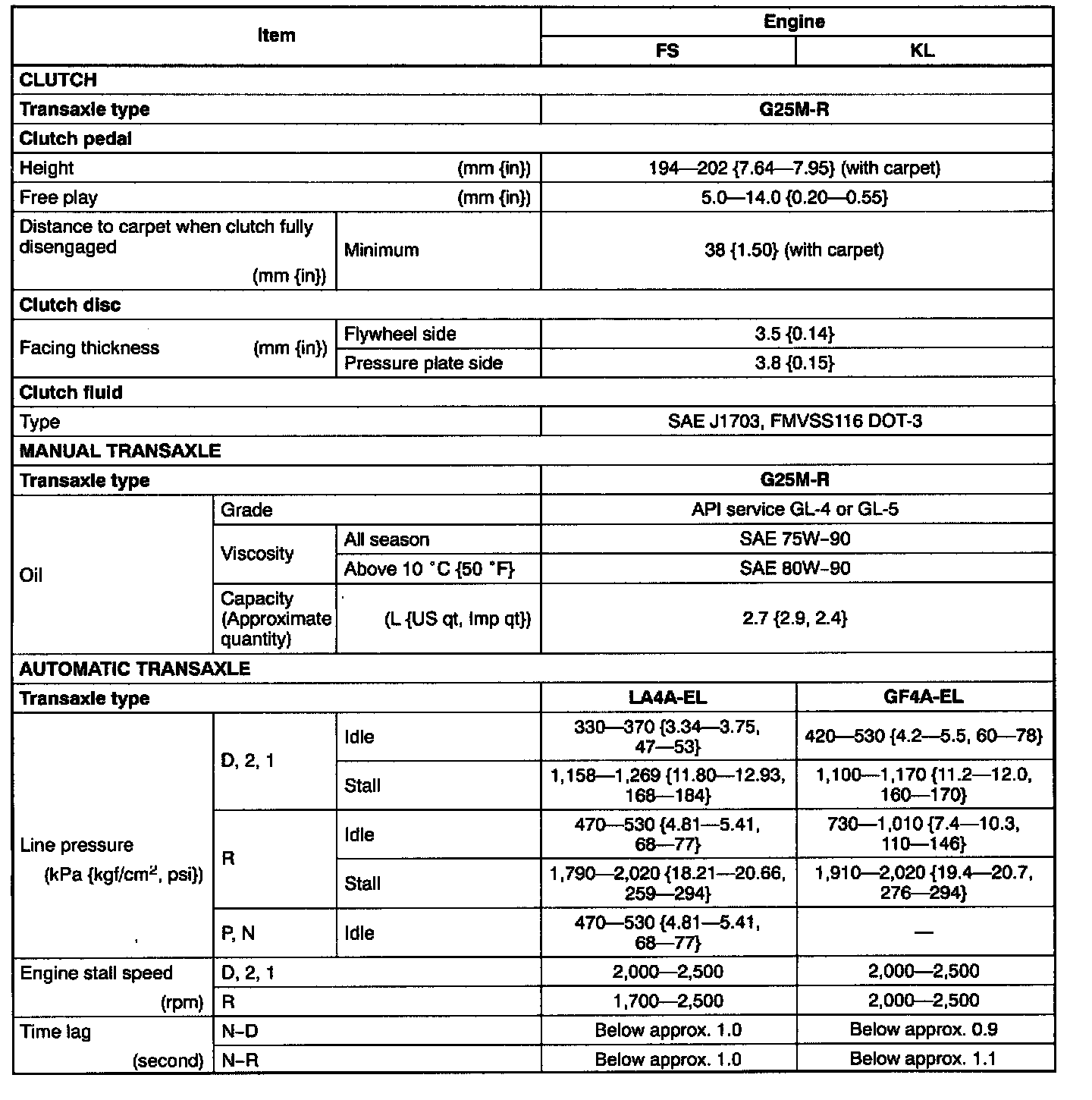

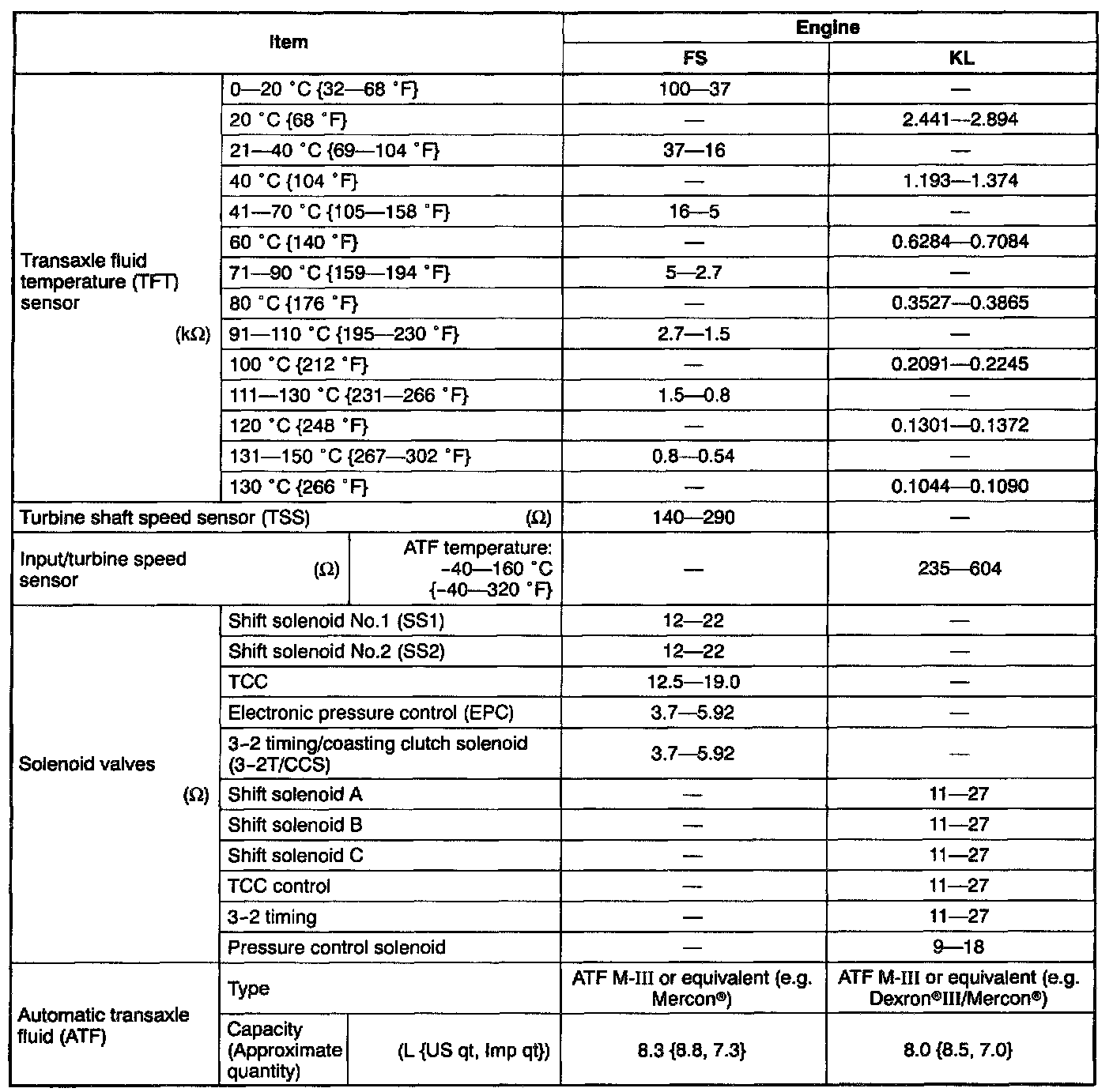

TECHNICAL DATA





1 of 2





2 of 2

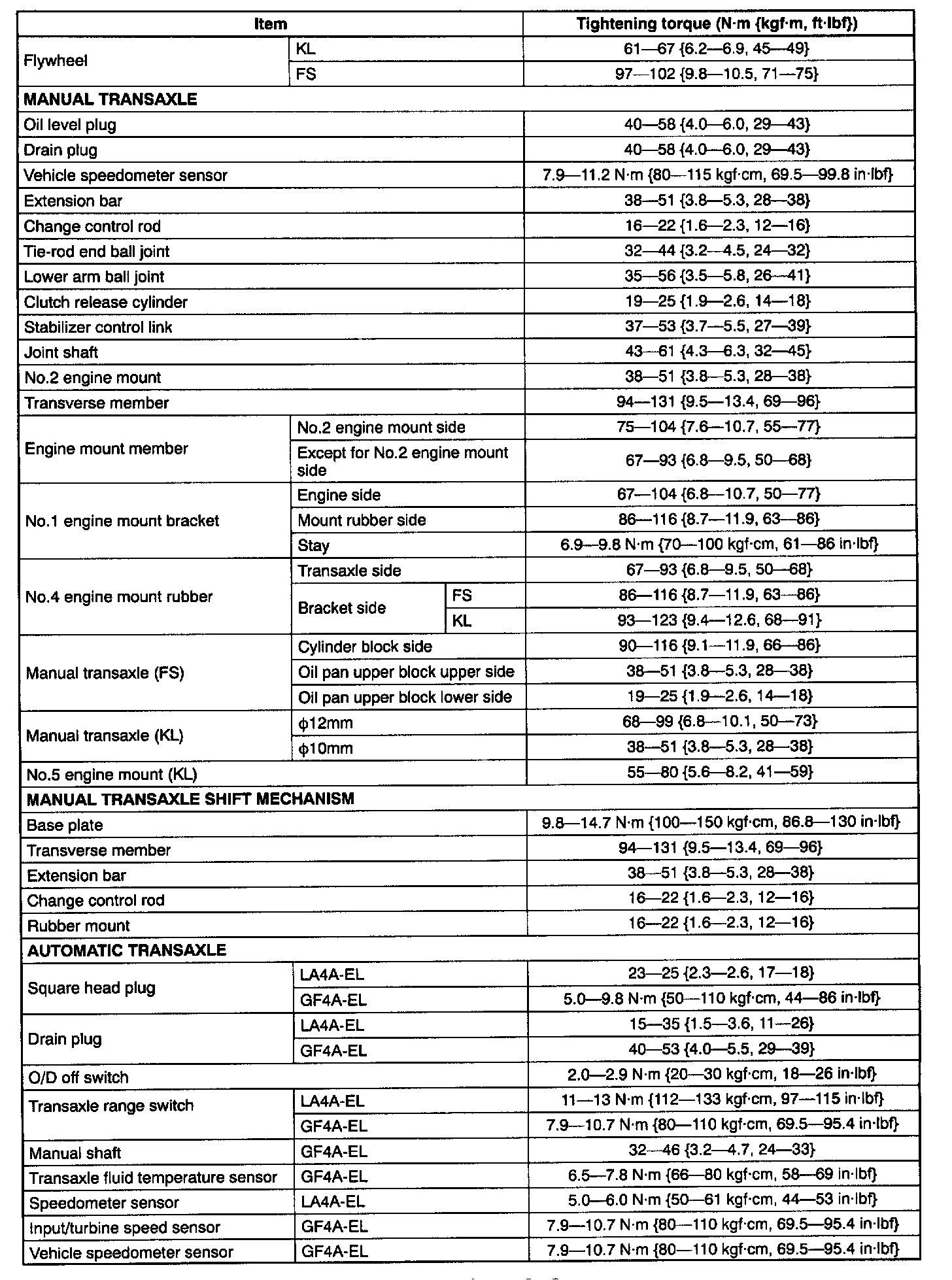

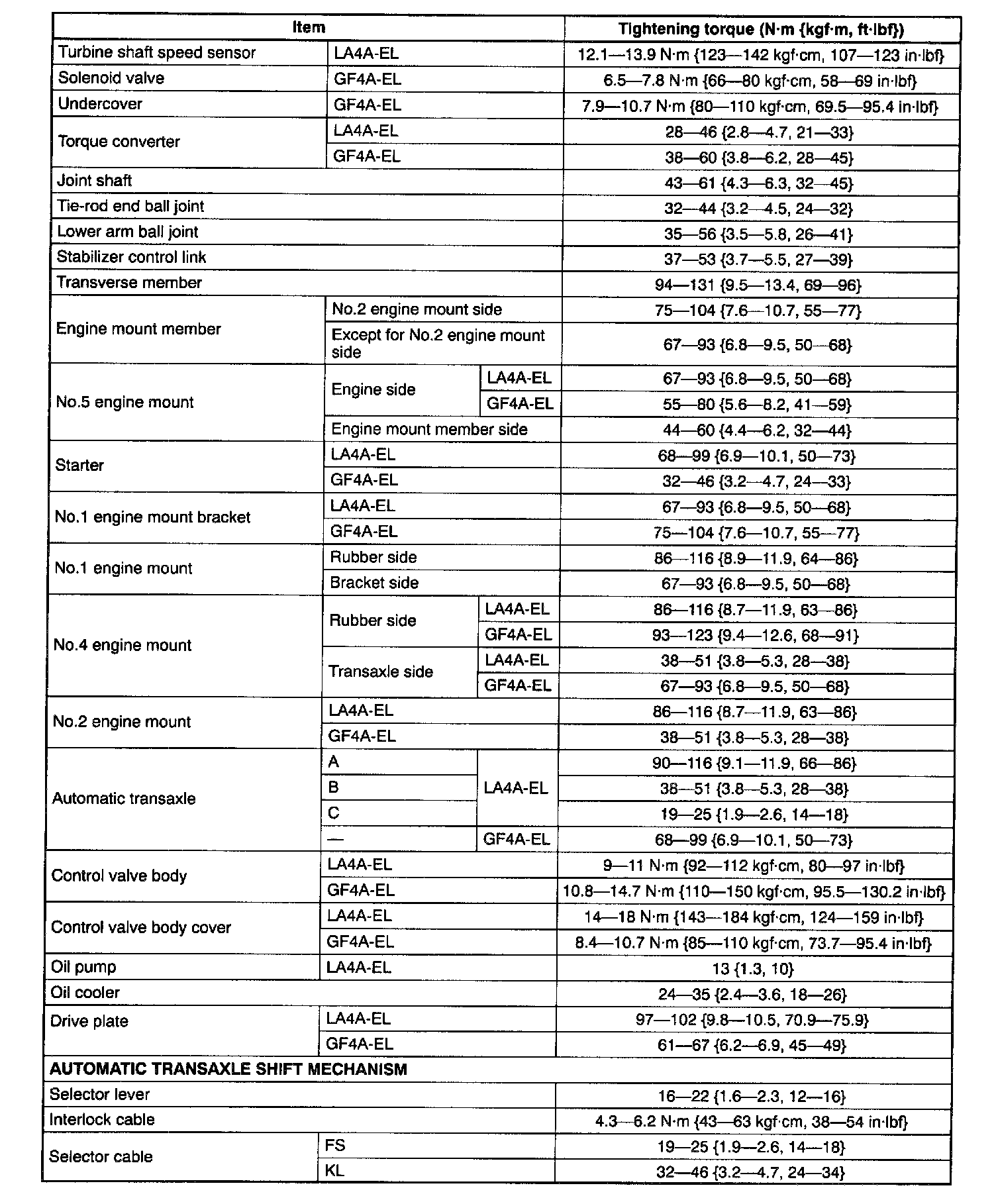

TIGHTENING TORQUE





1 of 3





2 of 3





3 of 3
