PID/Data Monitor Table

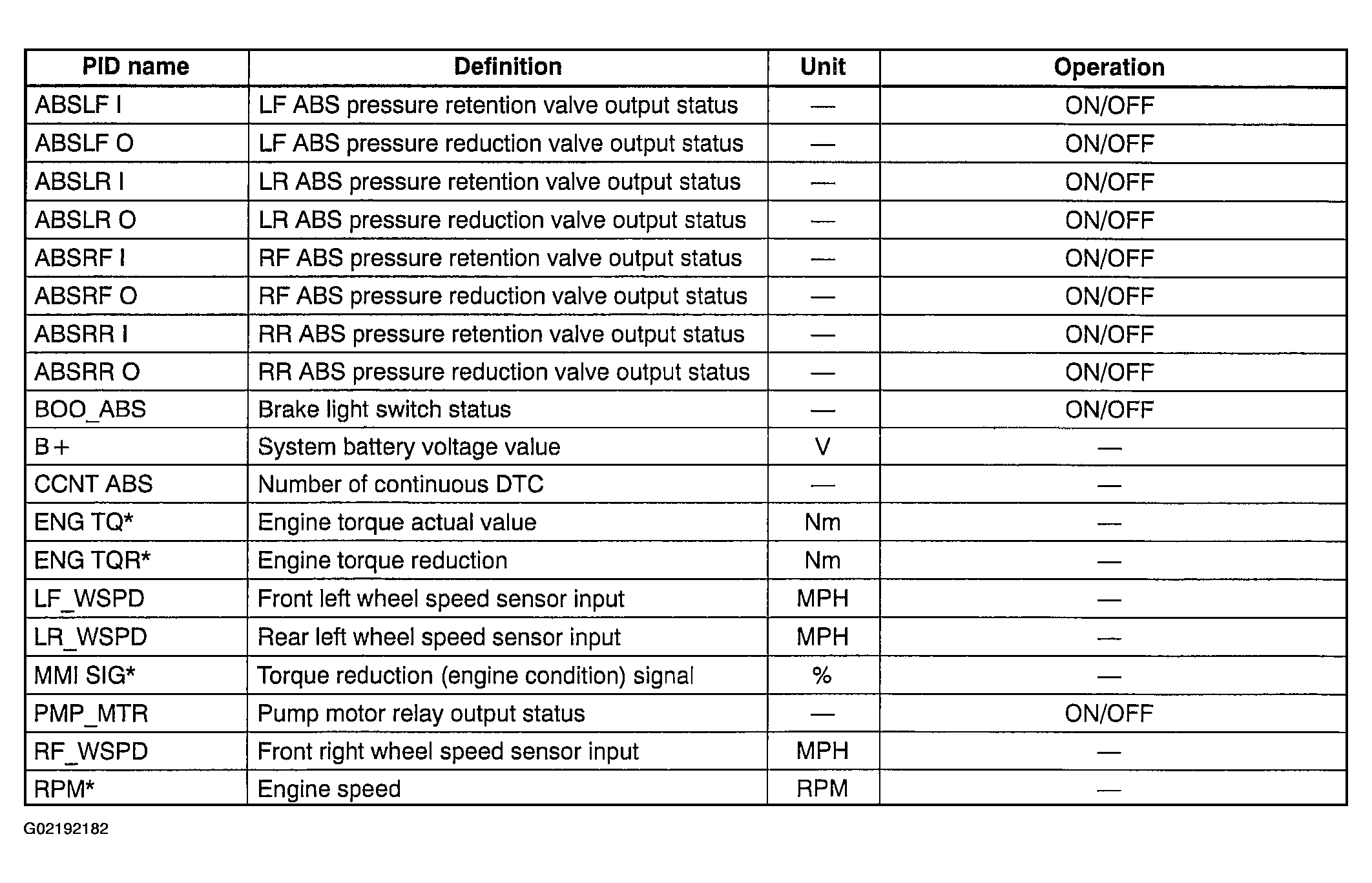

Fig 1: PID/DATA Monitor Table (1 Of 2)

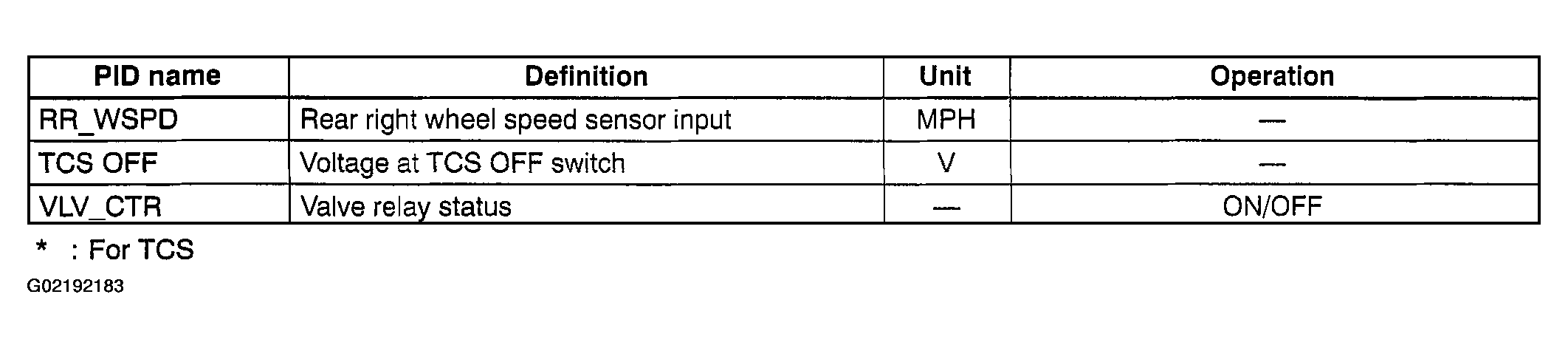

Fig 2: PID/DATA Monitor Table (2 Of 2)
