Diagnostic Procedure

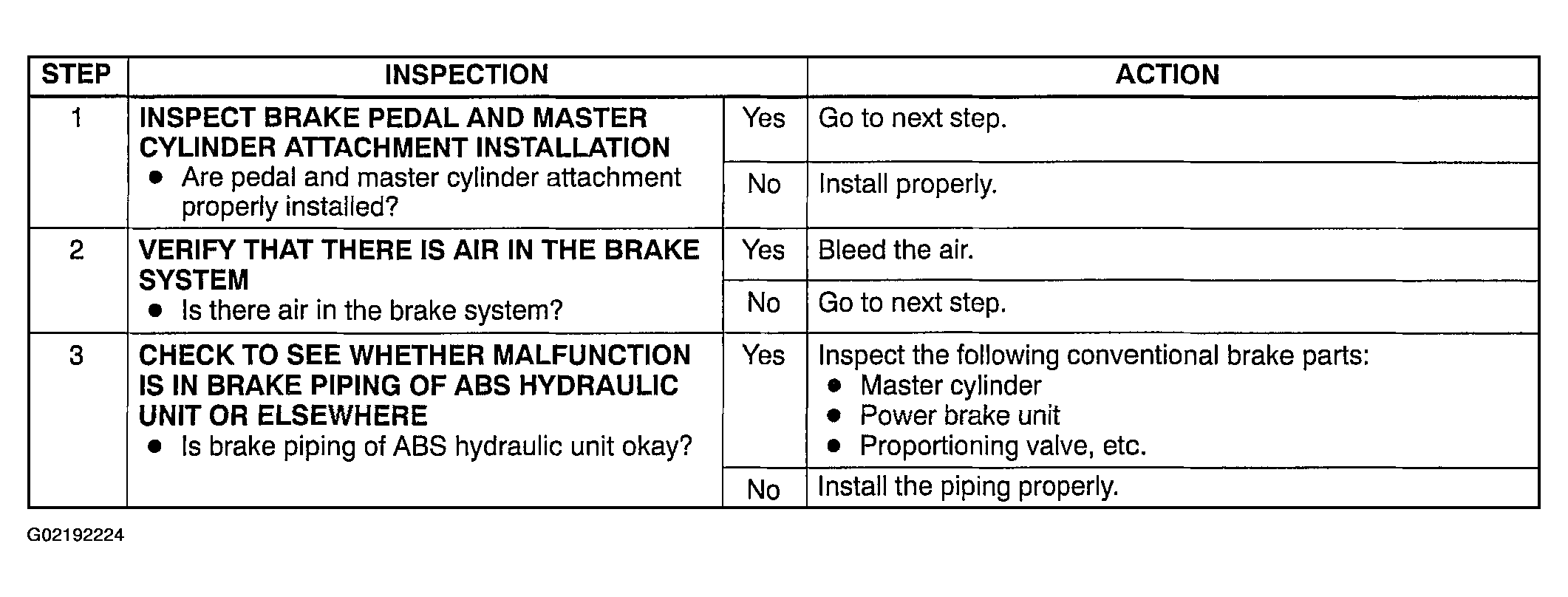

Fig 1: Brake System Has Problems - Inspection & Action

G02192224

CAUTION:

Recheck the diagnostic trouble code after repair completion.

NOTE:

The ABS warning light normally illuminates for 2-4 seconds after ignition switch is turned to ON.
If any symptoms have occurred in the past but are now okay, malfunction of related harness could be the possible cause and thus ABS CM is normal.
