PID/Data Monitor Table

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

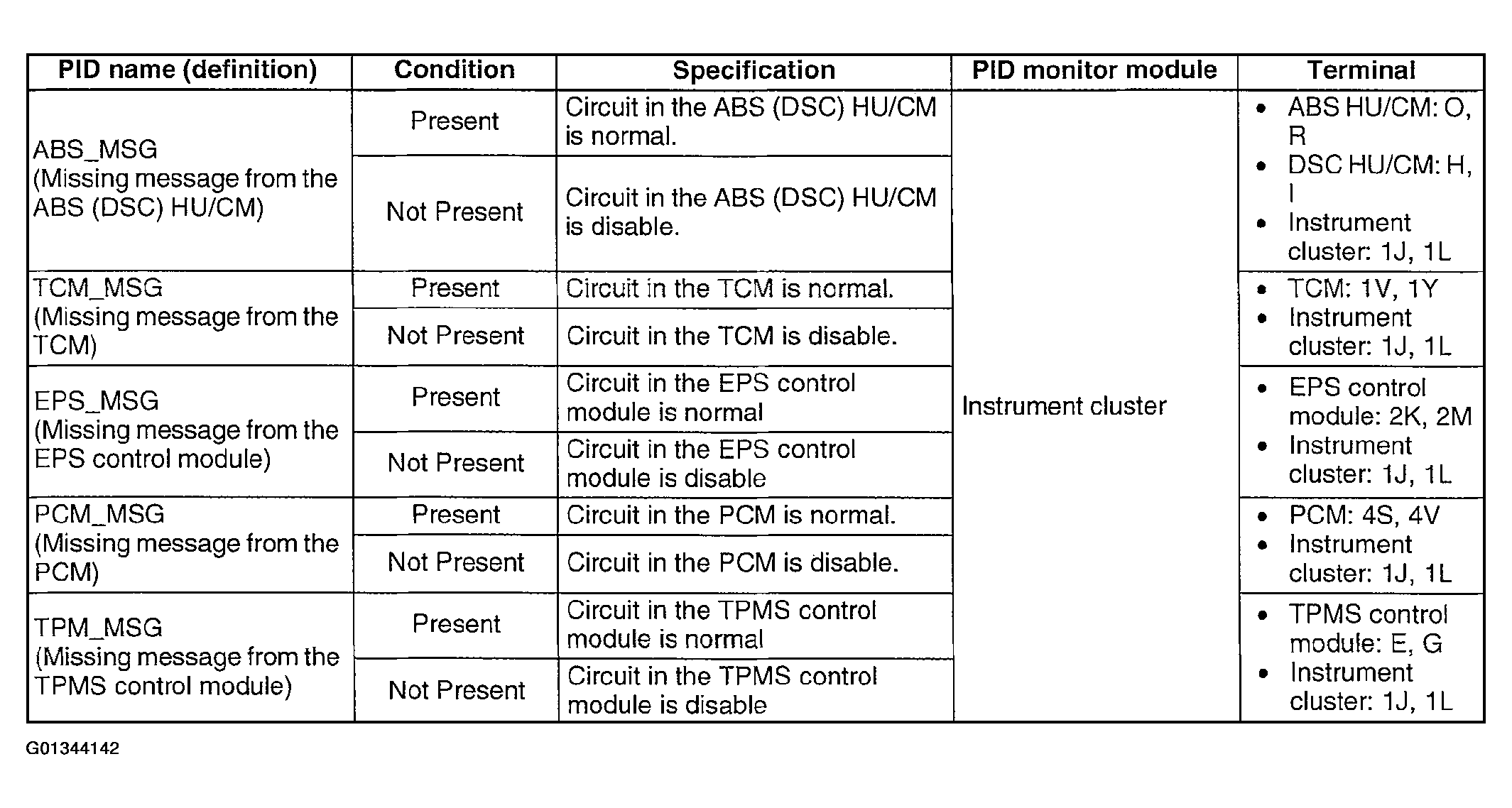

Fig 1: PID/DATA Monitor Table (Multiplex Communication System)
G01344142Courtesy of MAZDA MOTORS CORP.
