Exhaust System Components: Notes

The exhaust system consists of the components shown in the illustrations.

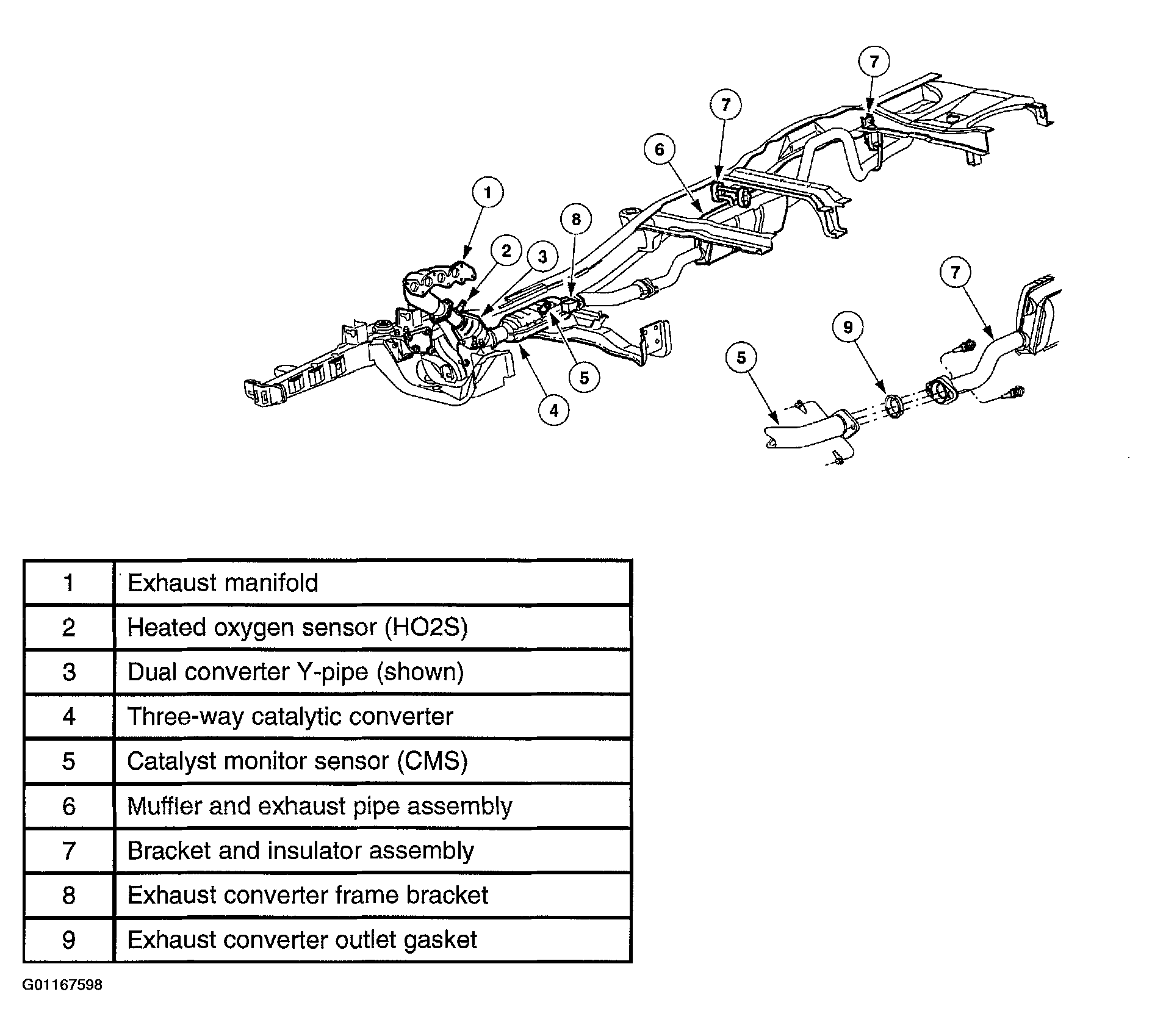

Fig 1: Identifying Exhaust System Components
G01167598Courtesy of MAZDA MOTORS CORP.
