DRL & Auto Light-Off System Wiring Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
DRL & Auto Light-Off System Wiring Diagram
WARNING:
This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

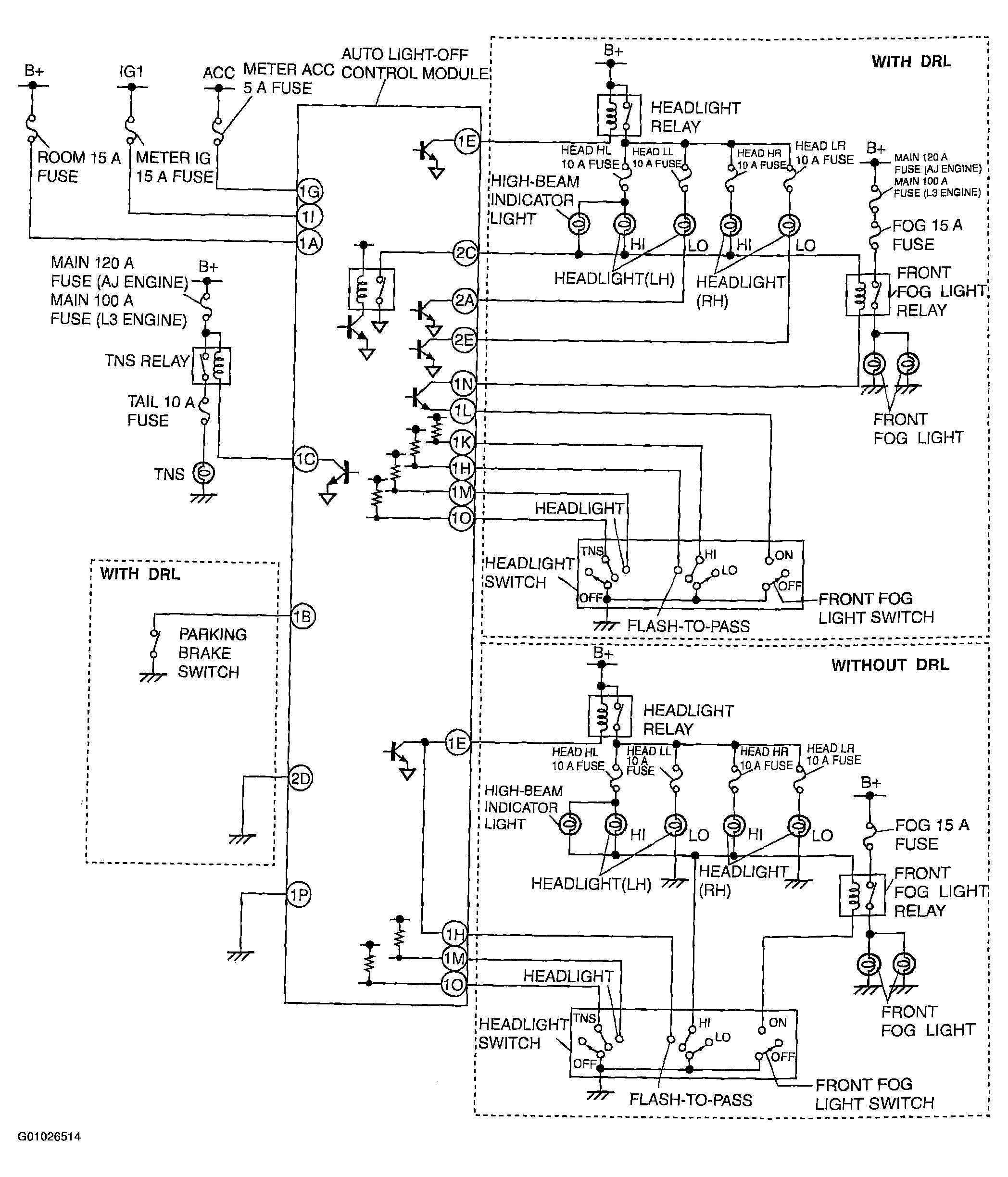

Fig 1: DRL & Auto Light-Off System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
