Engine Control Module

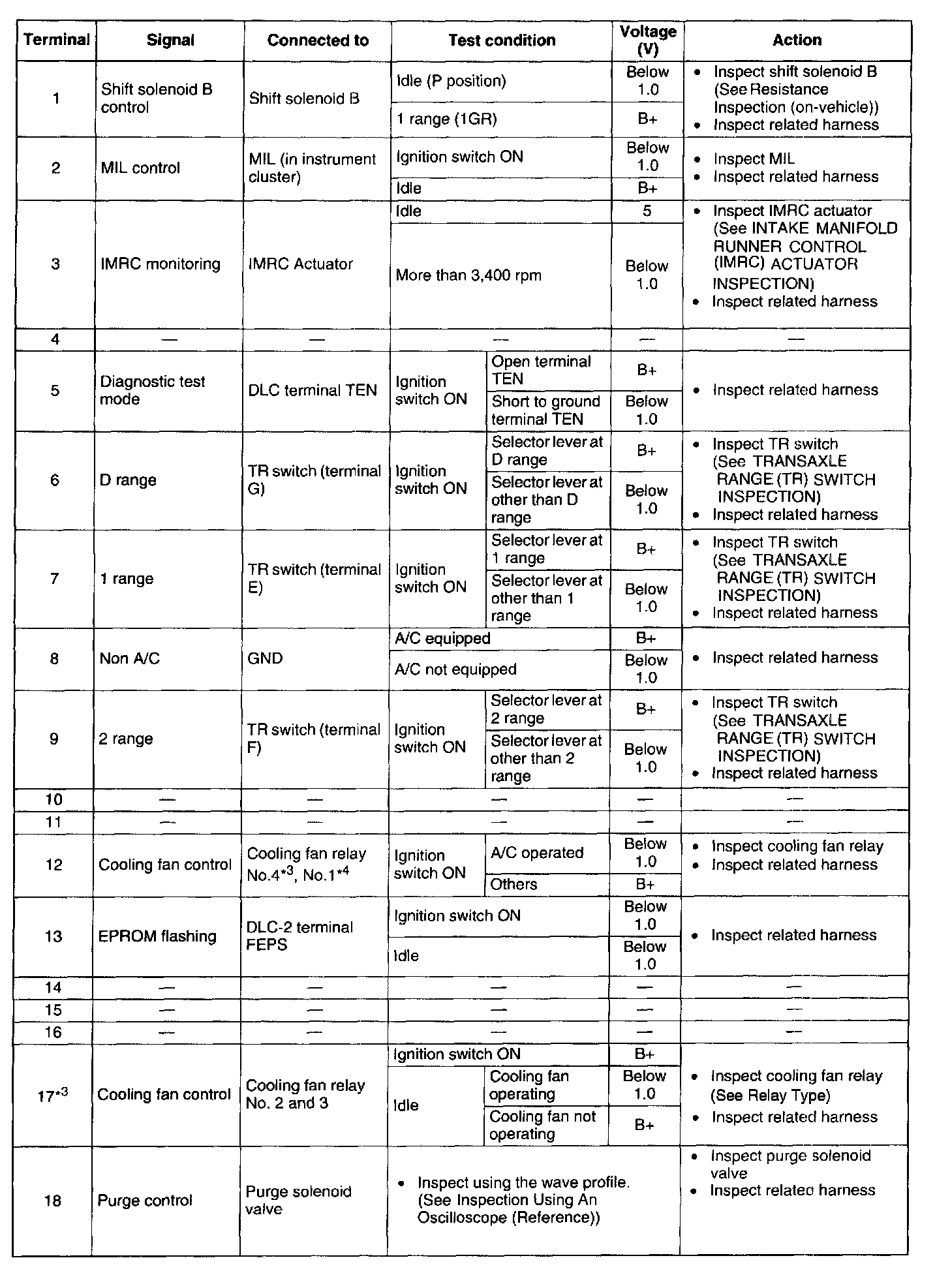

Terminal Voltage Table (Reference) - Terminal 1 - 18:

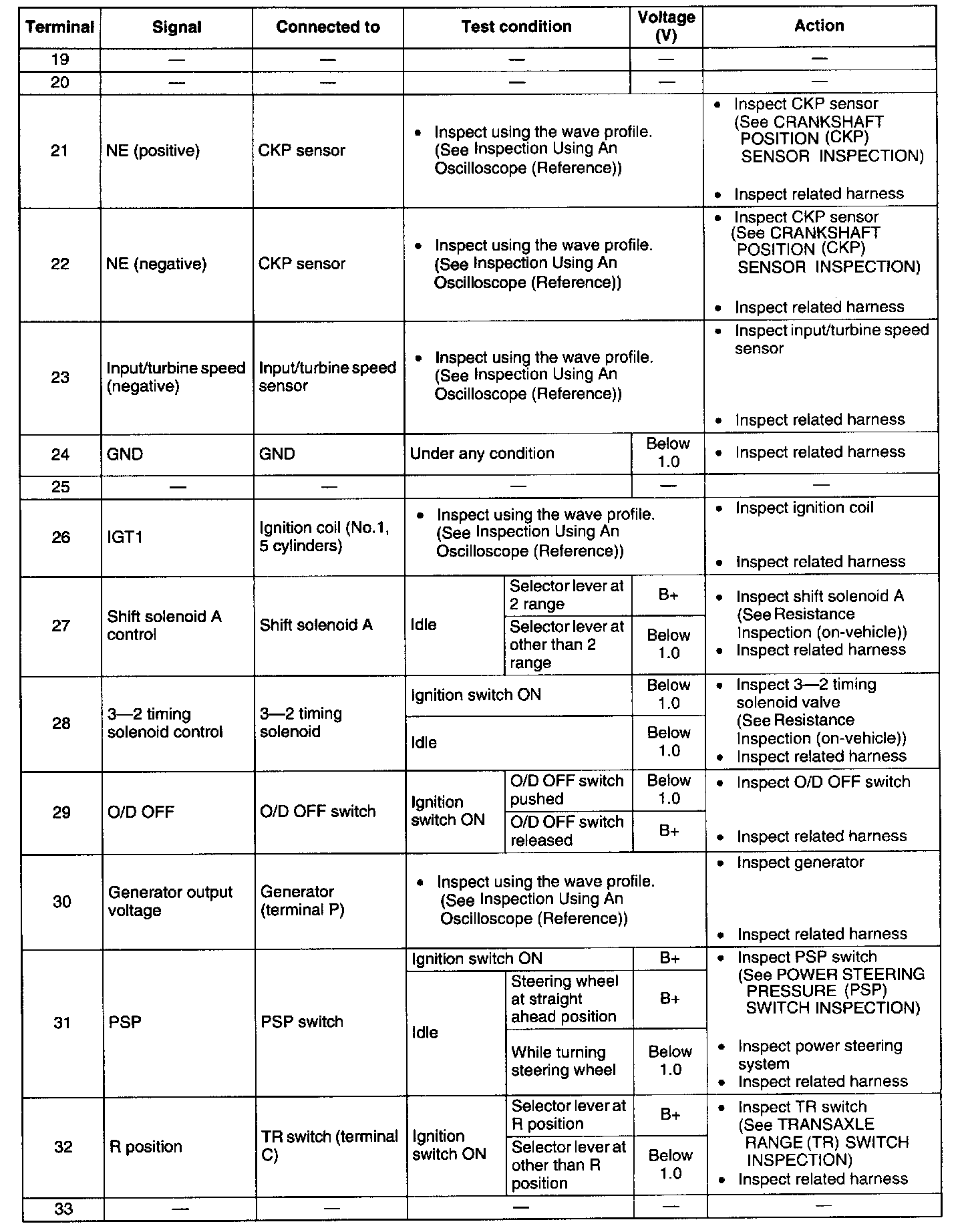

Terminal Voltage Table (Reference) - Terminal 19 - 33:

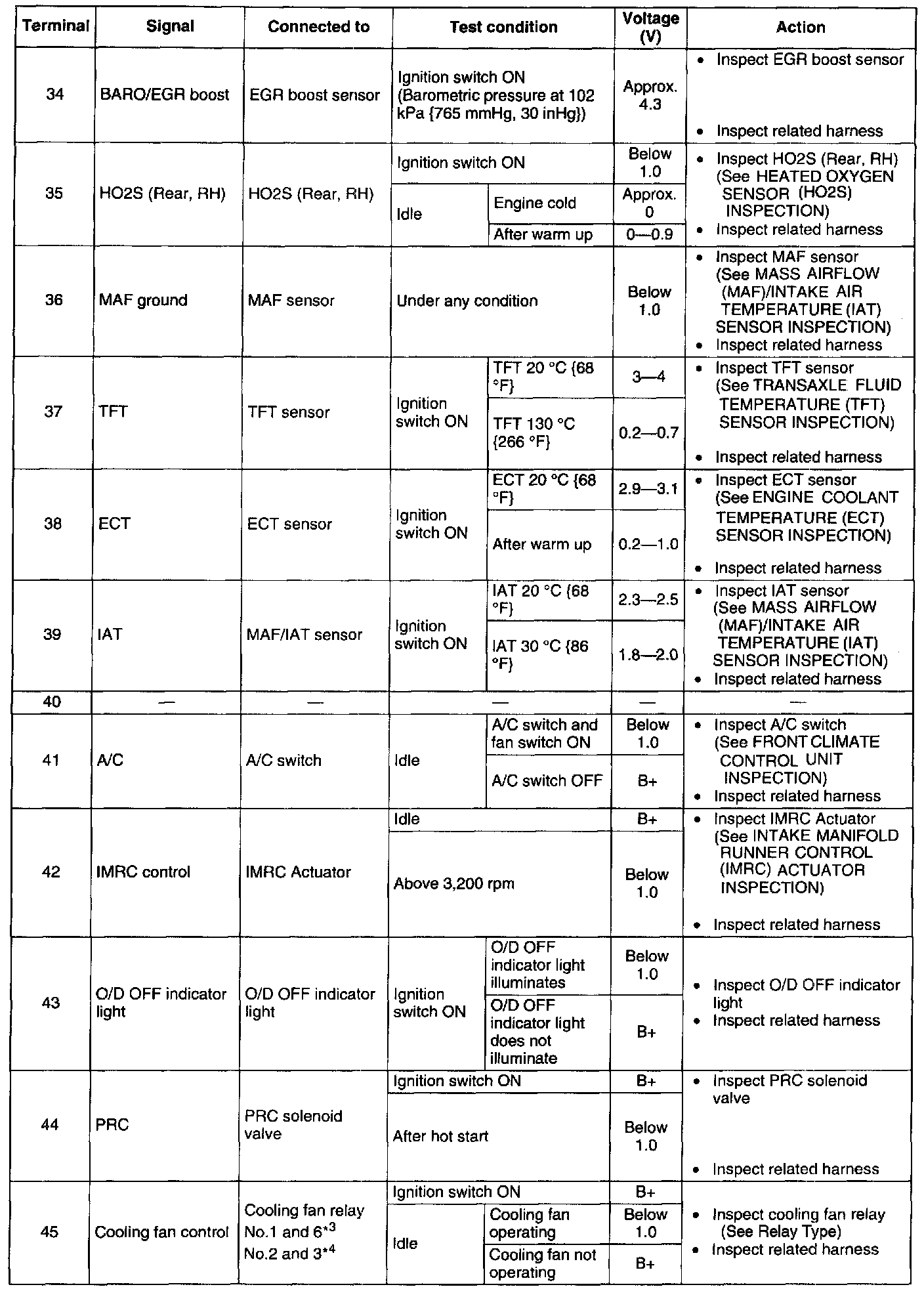

Terminal Voltage Table (Reference) - Terminal 34 - 45:

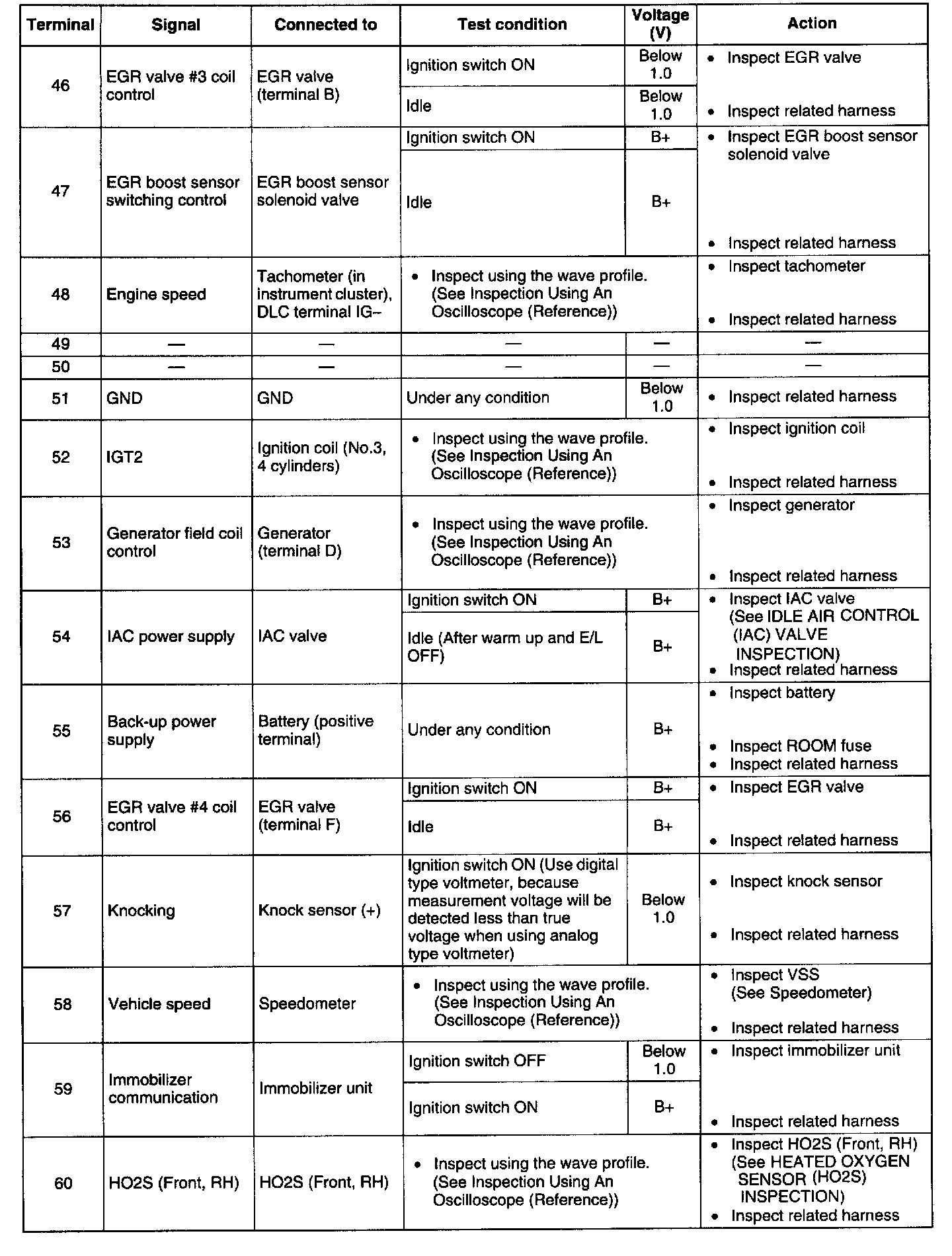

Terminal Voltage Table (Reference) - Terminal 46 - 60:

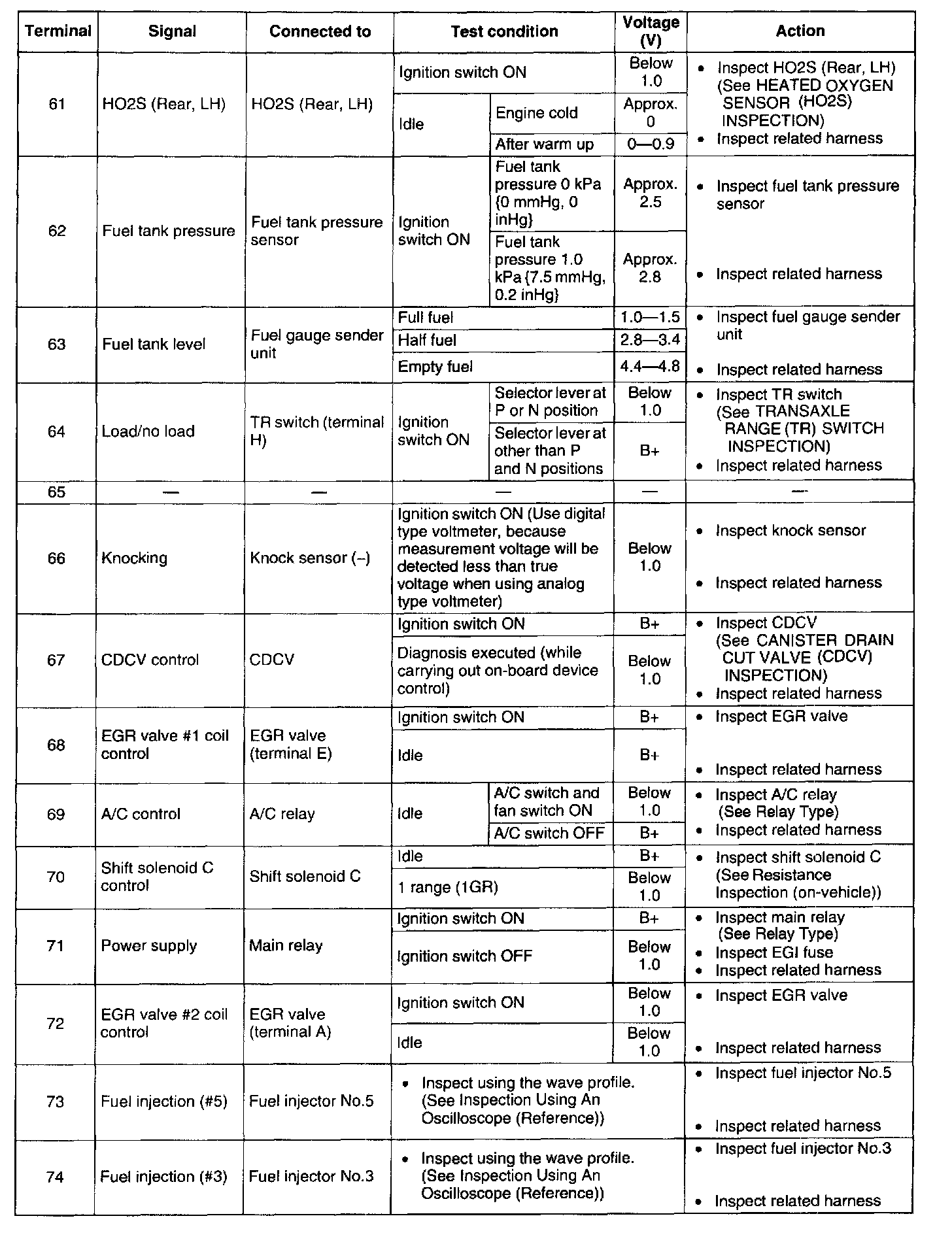

Terminal Voltage Table (Reference) - Terminal 61 - 74:

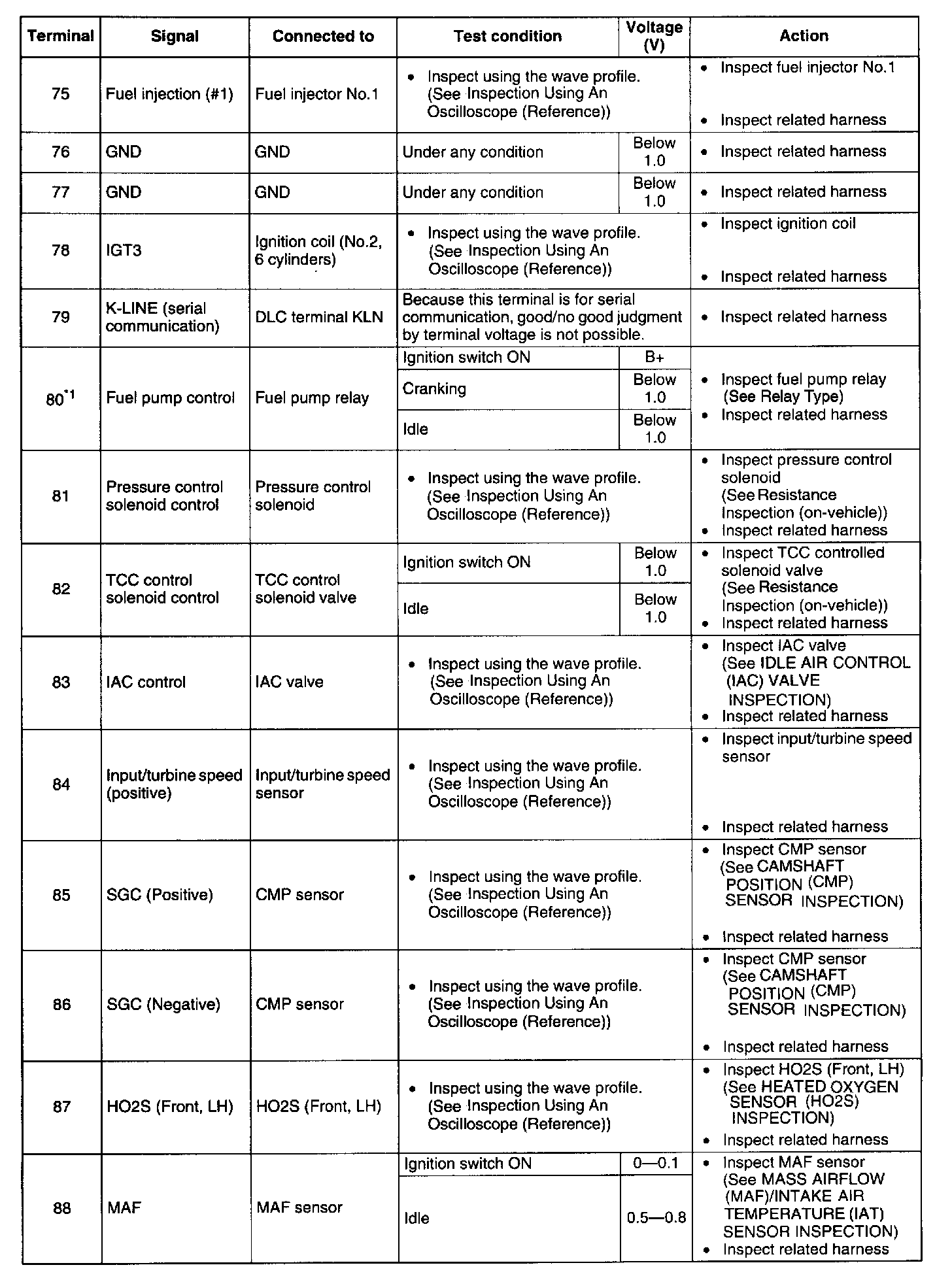

Terminal Voltage Table (Reference) - Terminal 75 - 88:

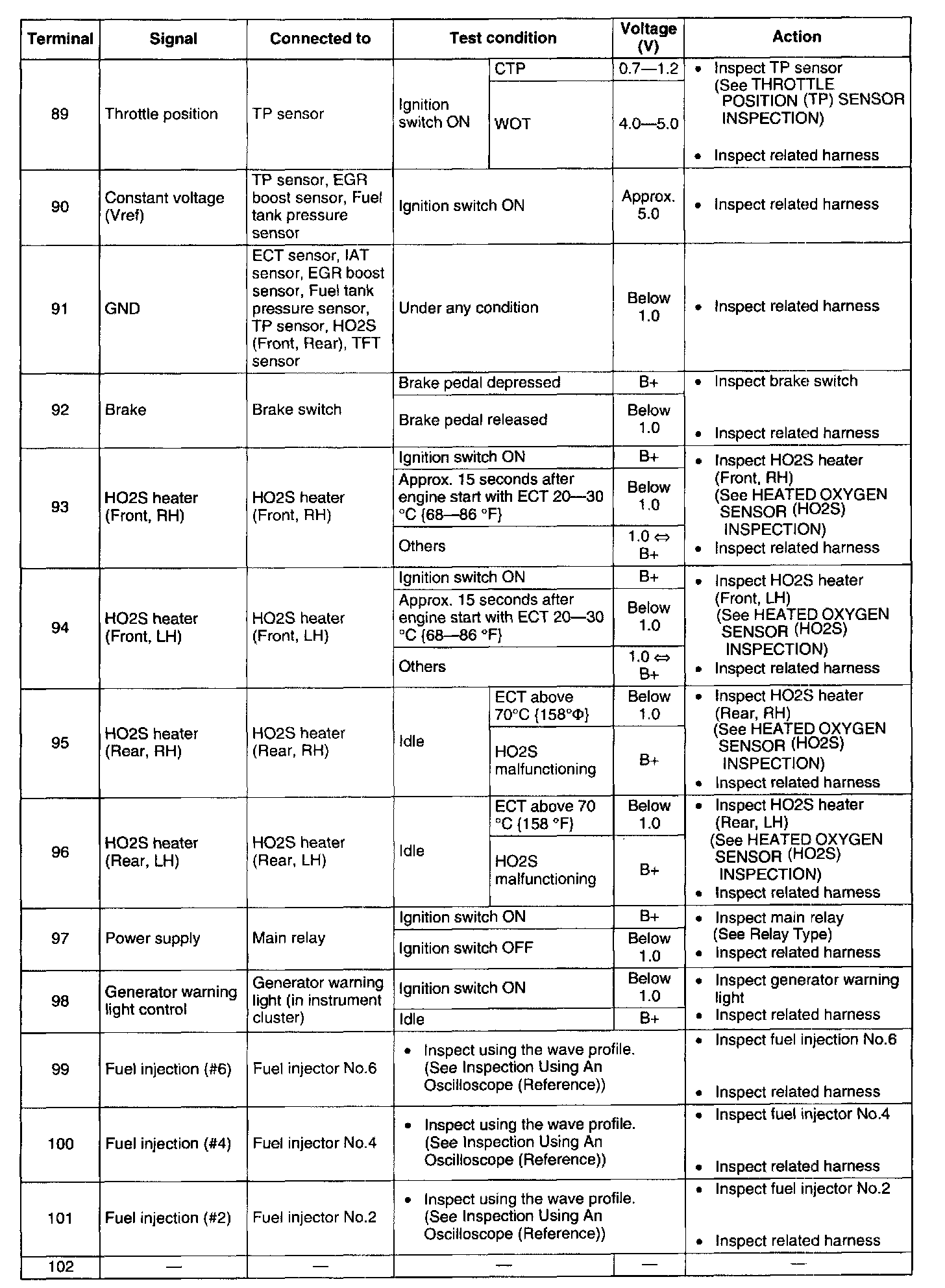

Terminal Voltage Table (Reference) - Terminal 89 - 102:

Terminal Voltage Table (Reference) - Terminal 103 - 104:

*1 : Immobilizer system not equipped
*2 : Immobilizer system equipped
*3 : A/C system equipped
*4 : A/C system not equipped
