Control System

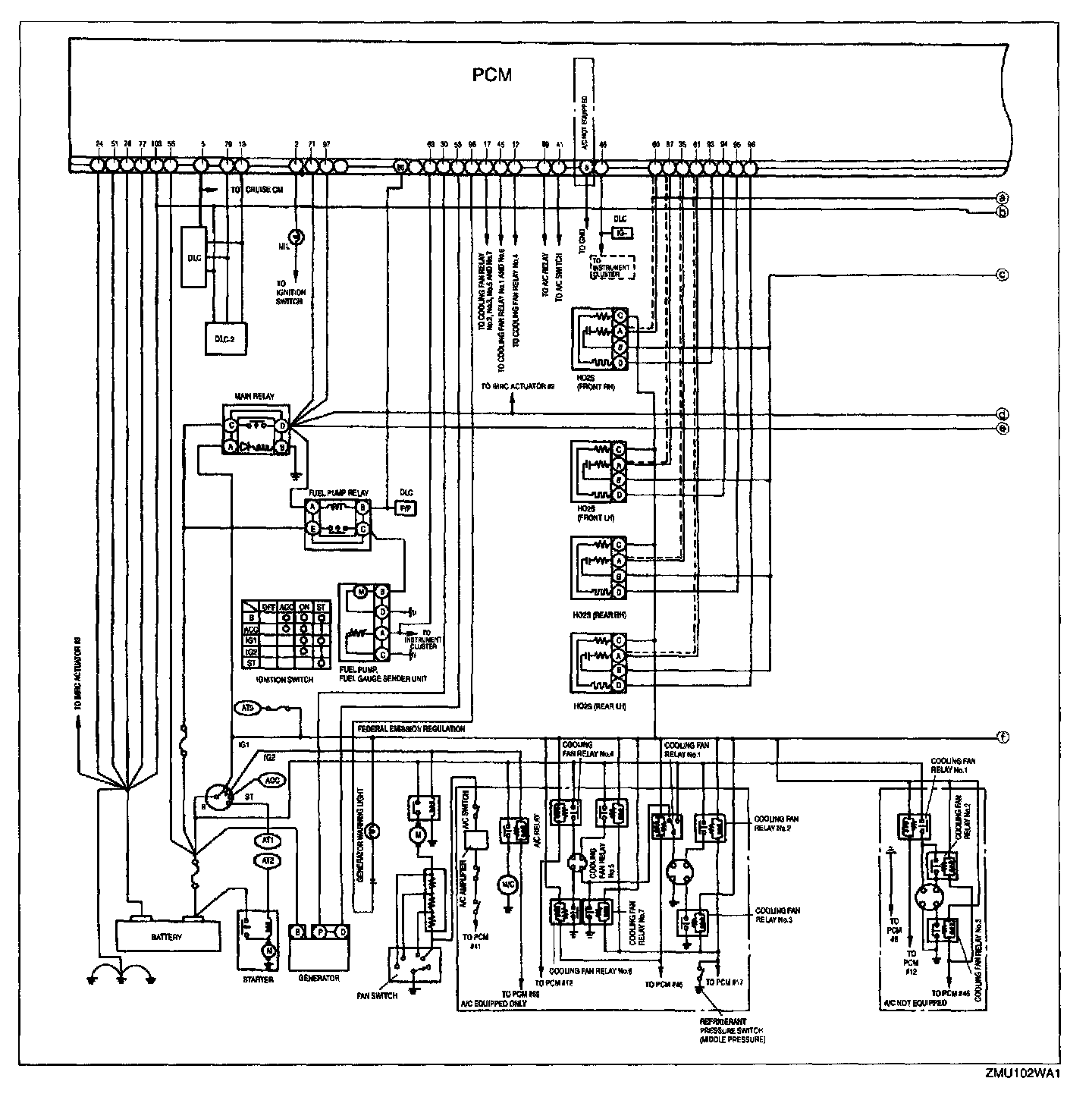

Control System Diagram (With Immobilizer System) (Part 1):

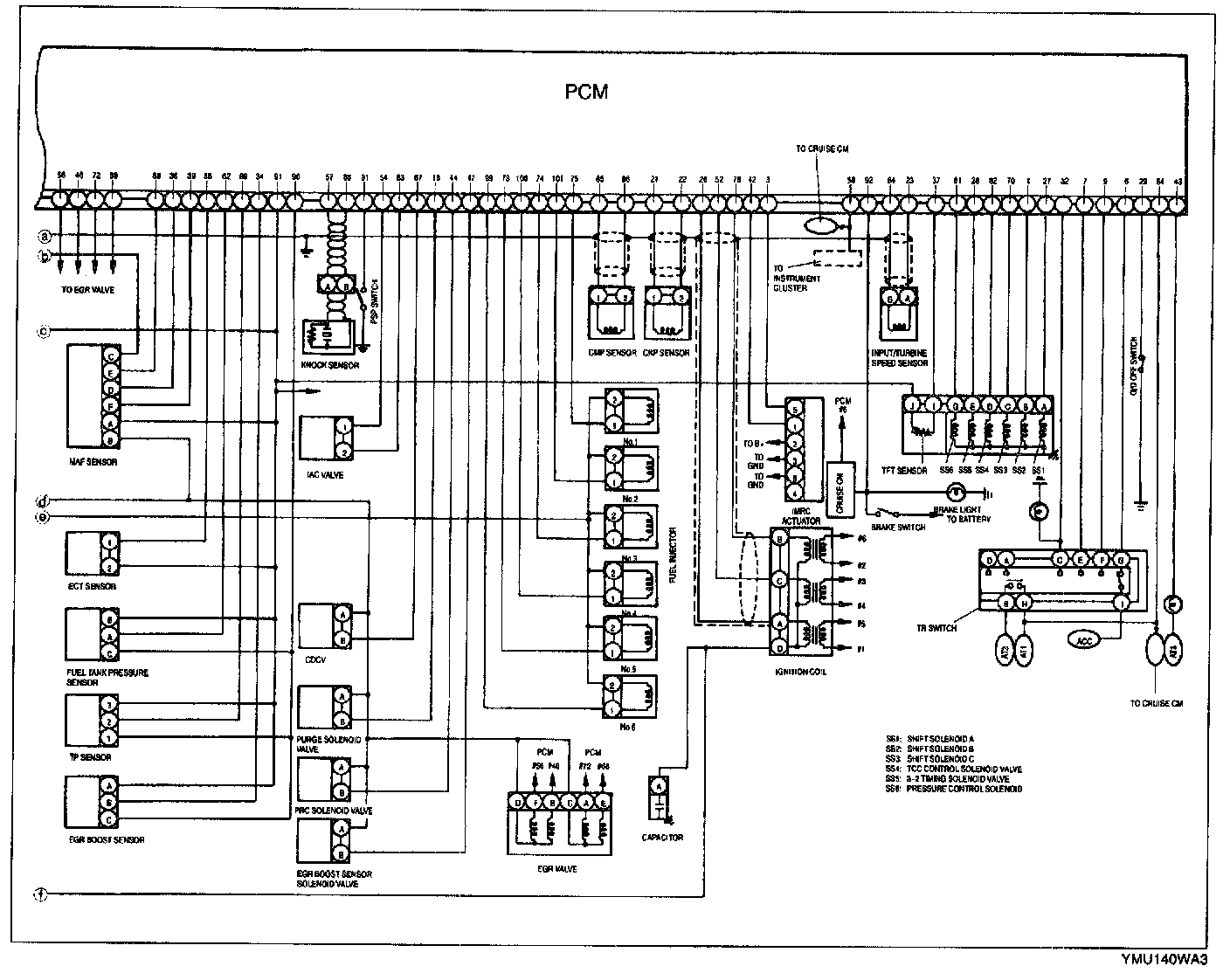

Control System Diagram (With Immobilizer System) (Part 2):

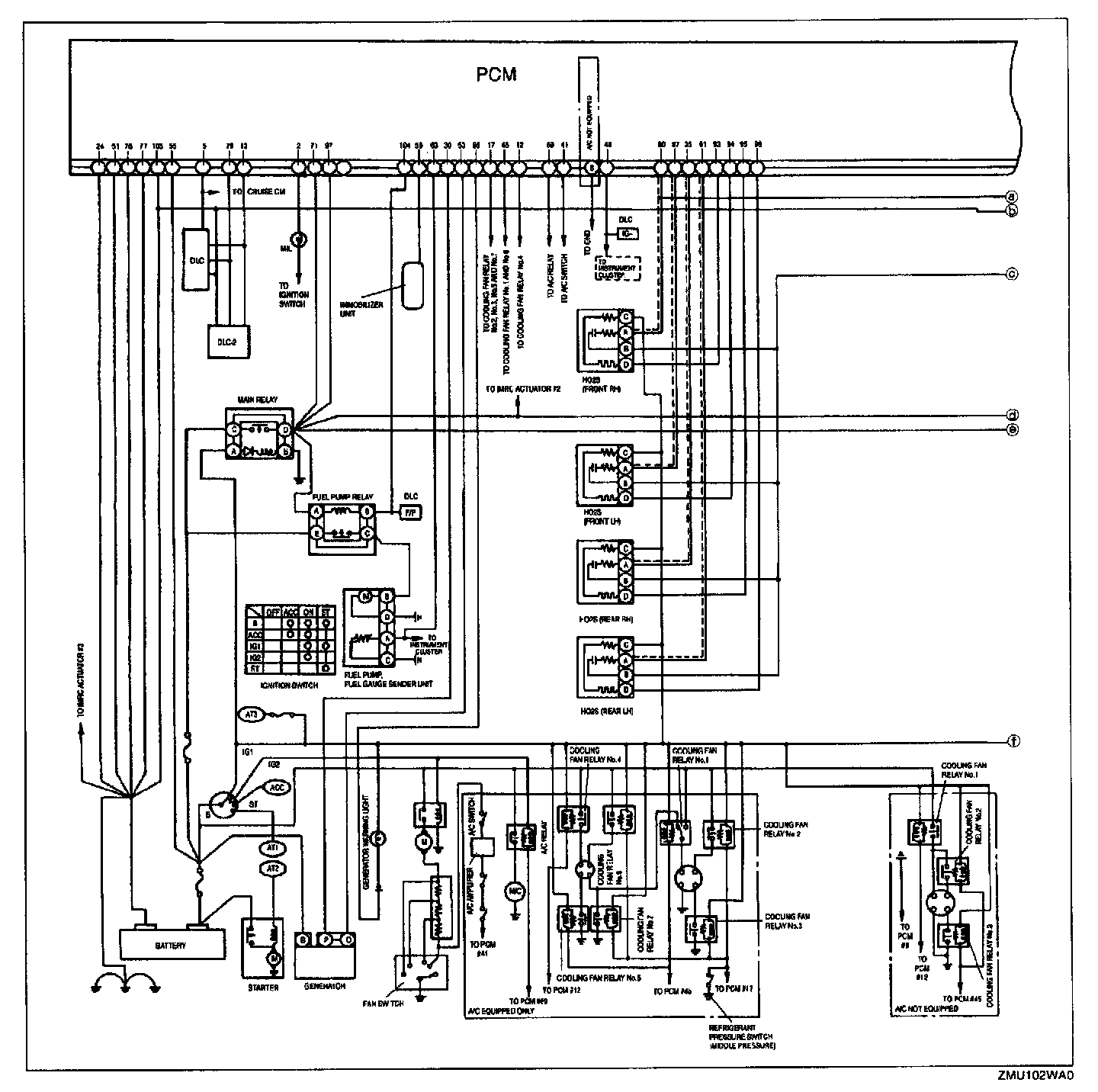

Control System Diagram (Without Immobilizer System) (Part 1):

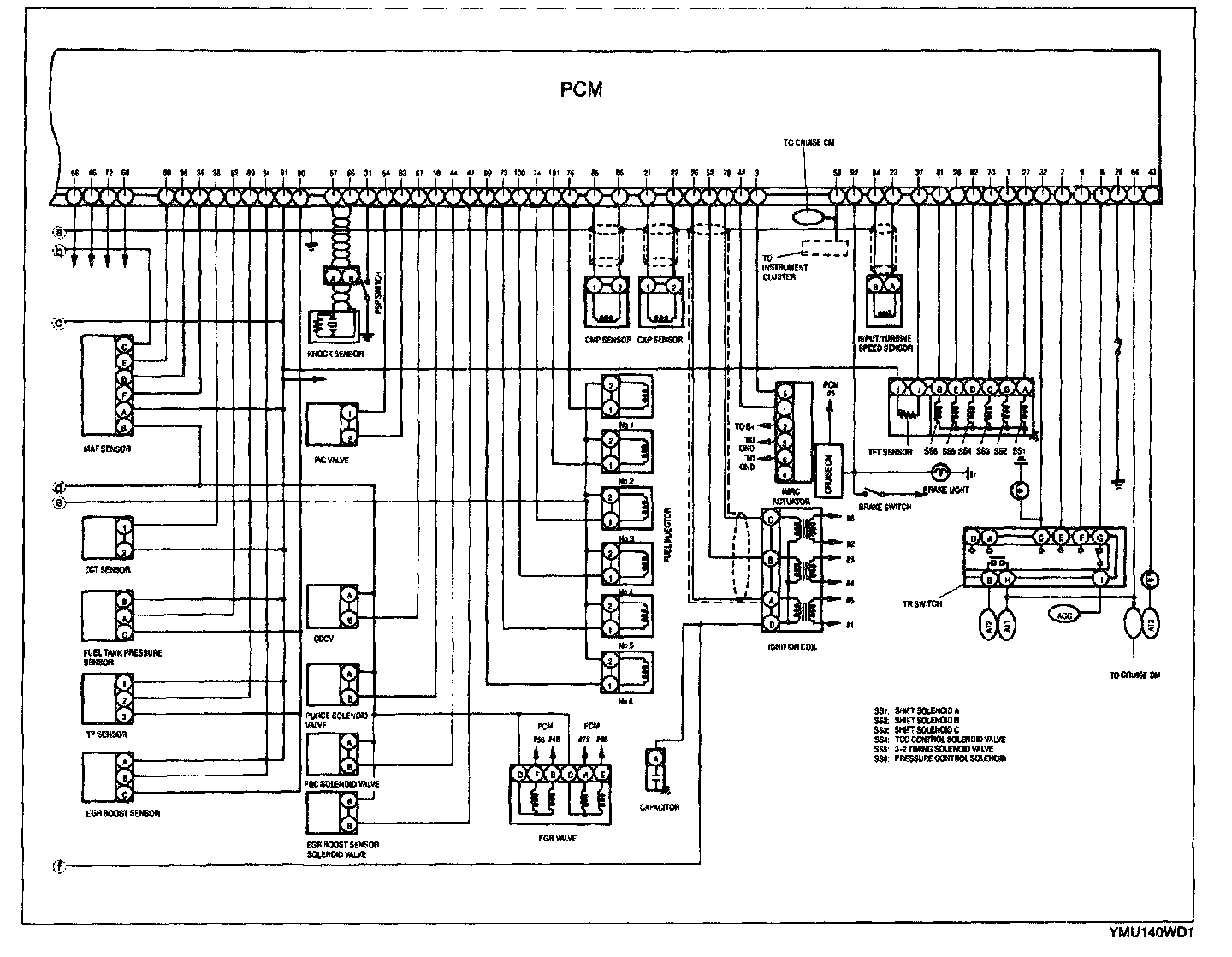

Control System Diagram (Without Immobilizer System) (Part 2):
