EC-AT Control System

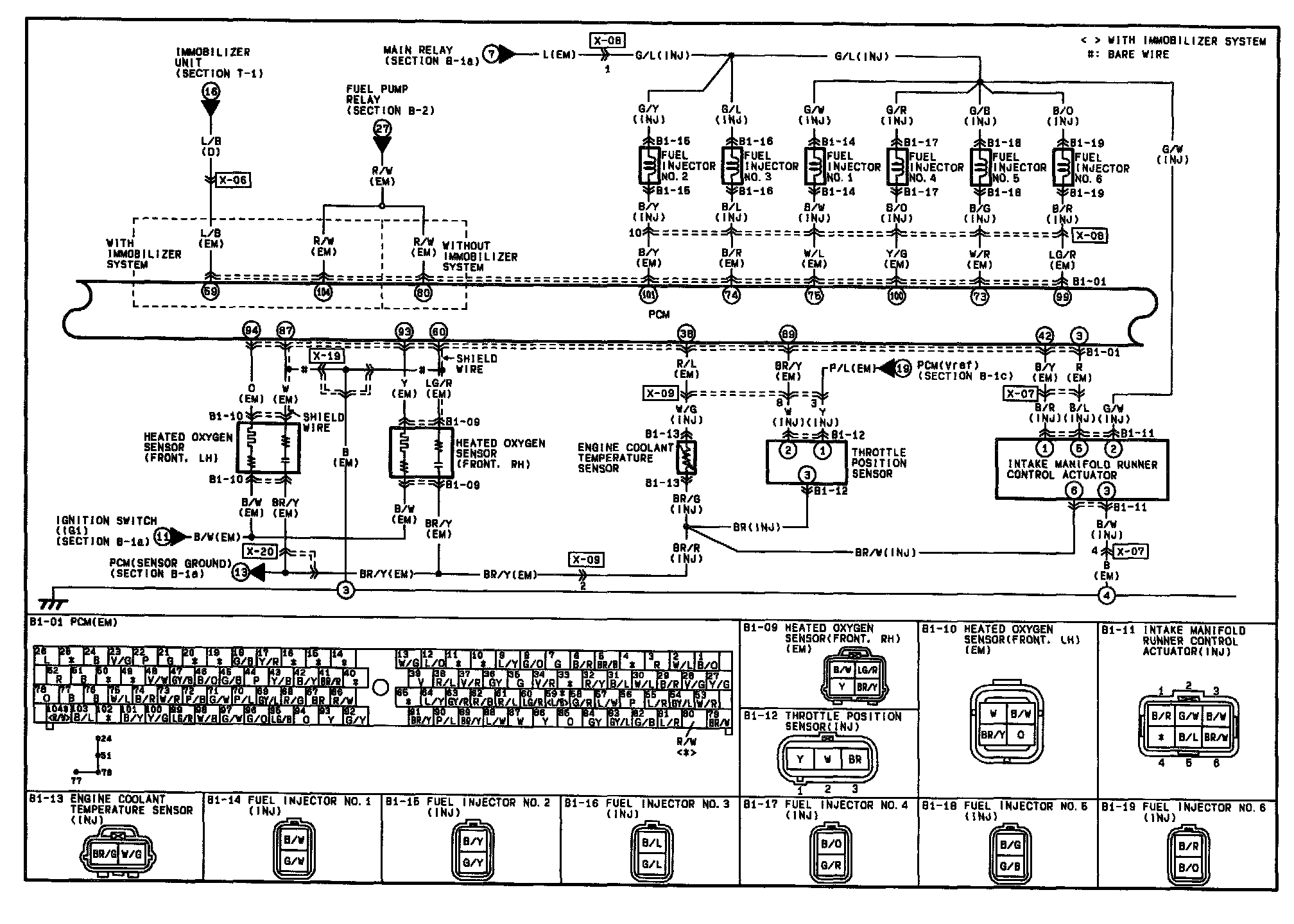

B-1a - EC-AT Control System / Engine Control System Circuit:

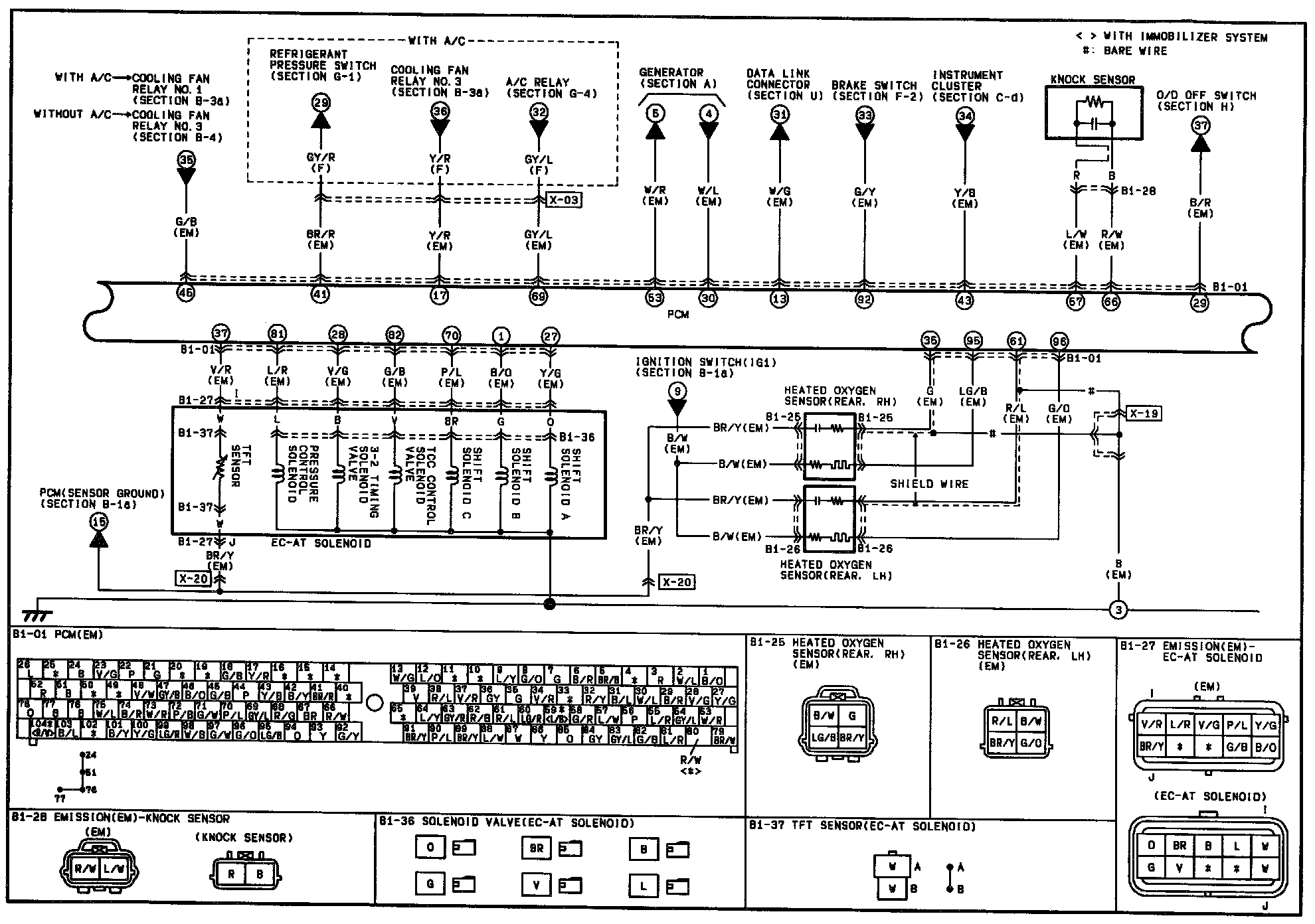

B-1b - EC-AT Control System / Engine Control System Circuit:

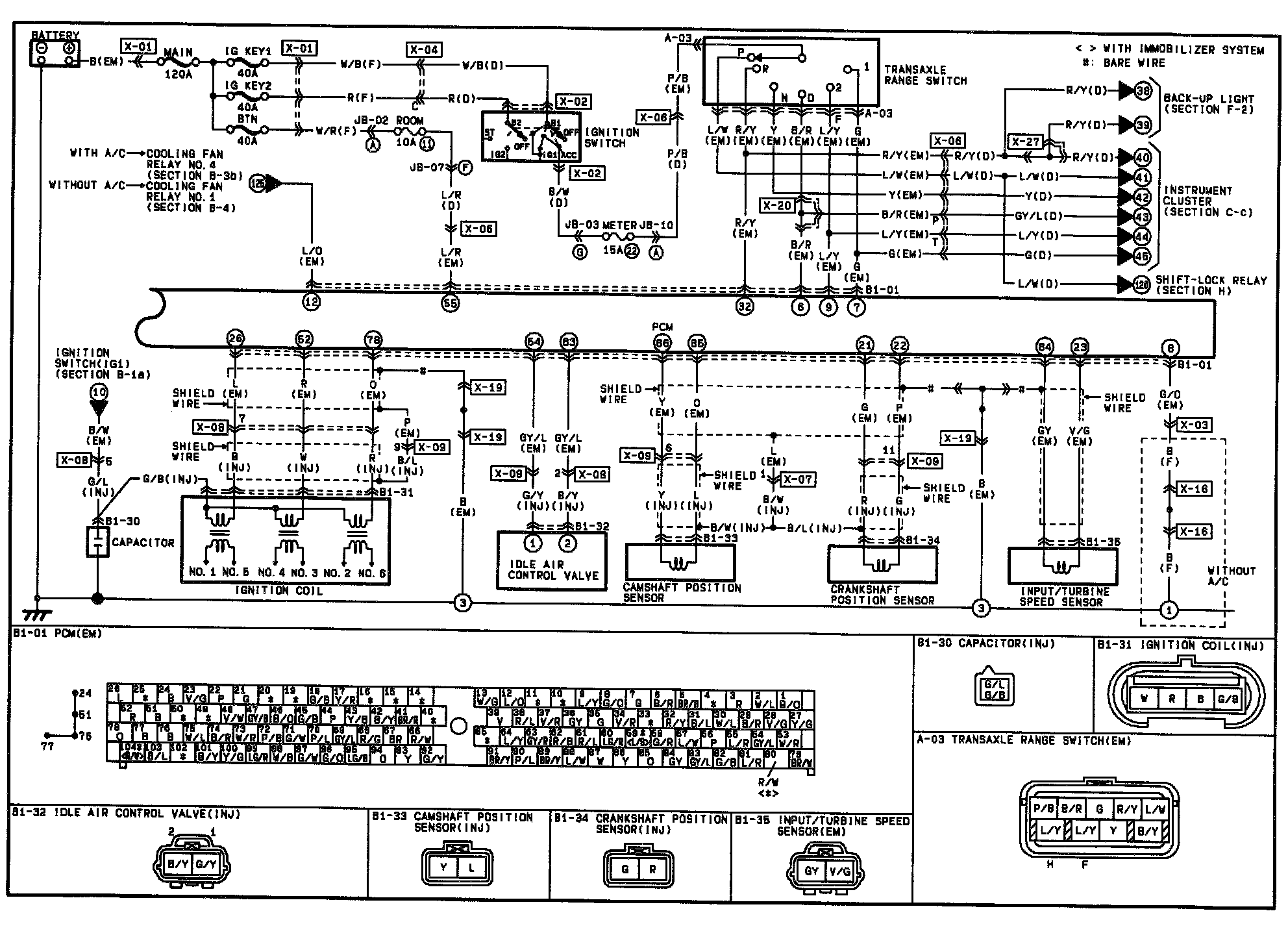

B-1c - EC-AT Control System / Engine Control System Circuit:

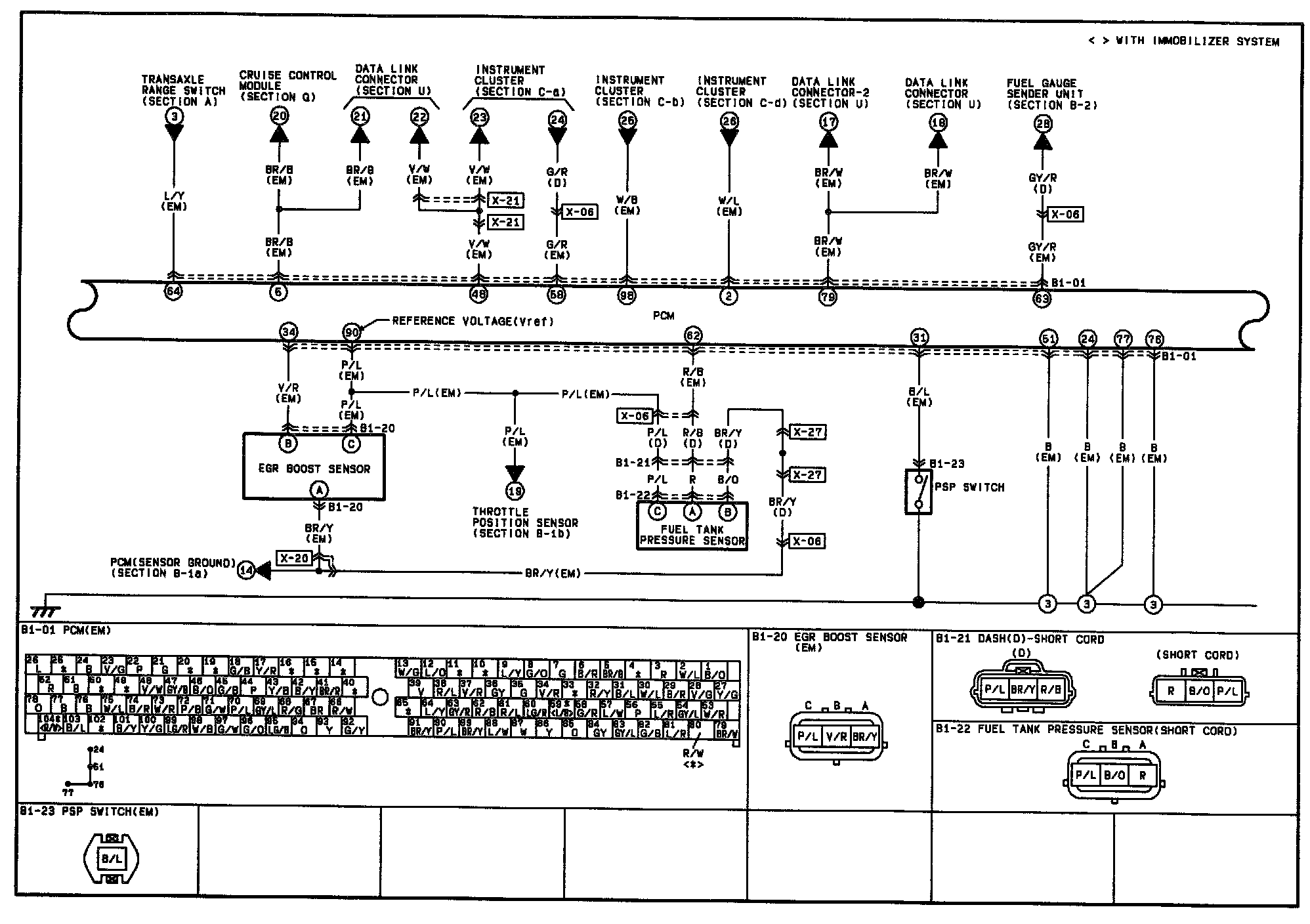

B-1d - EC-AT Control System / Engine Control System Circuit:

B-1e - EC-AT Control System / Engine Control System Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
