Air Bag Control Module: Locations

Air Bag System Location Index:

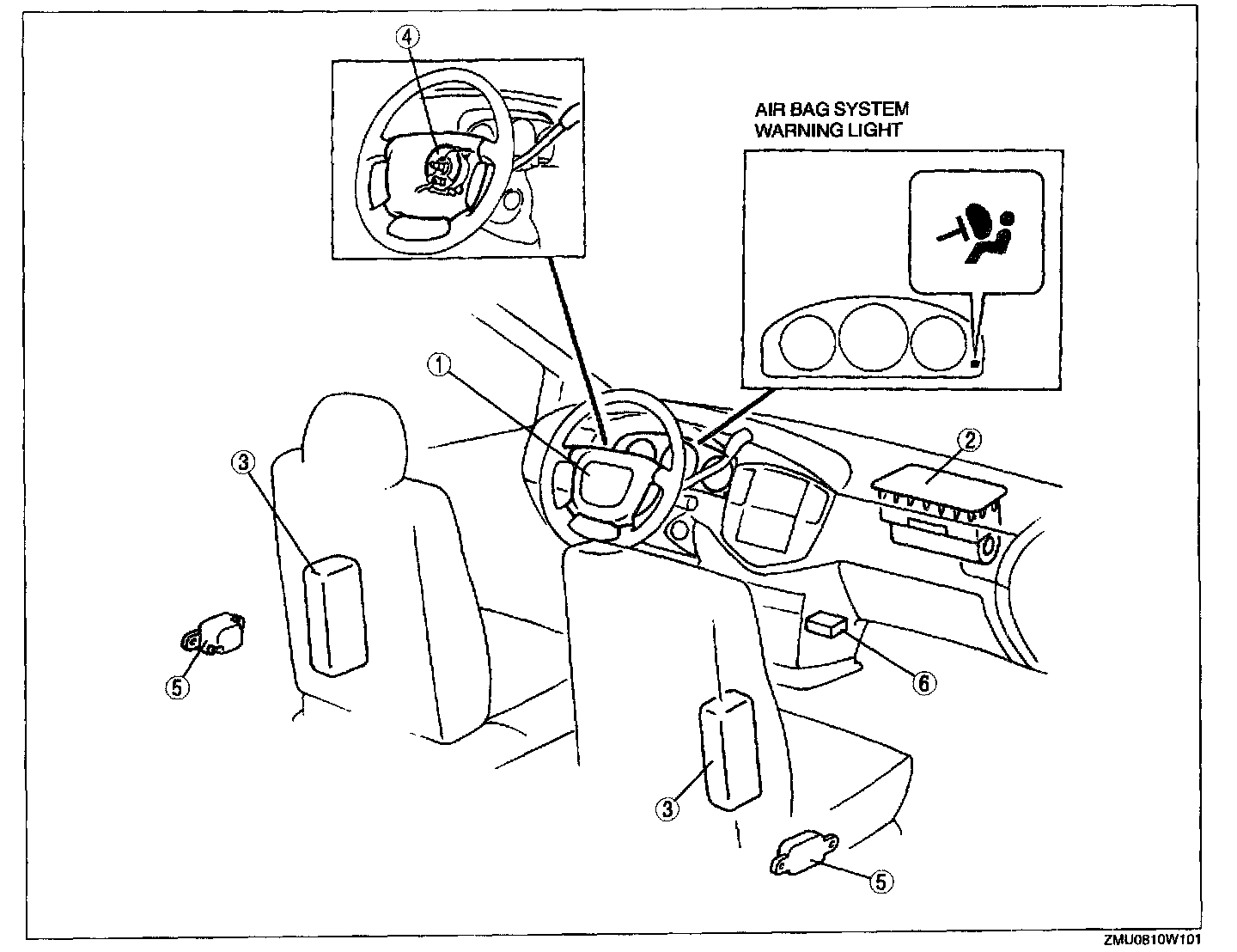

AIR BAG SYSTEM LOCATION INDEX
1. Driver-side air bag module
2. Passenger-side air bag module
3. Side air bag module
4. Clock spring
5. Side air bag sensor
6. SAS control module
