Cruise Control Module

Terminal Pinout

Terminal Pinout:

Terminal A

Terminal A:

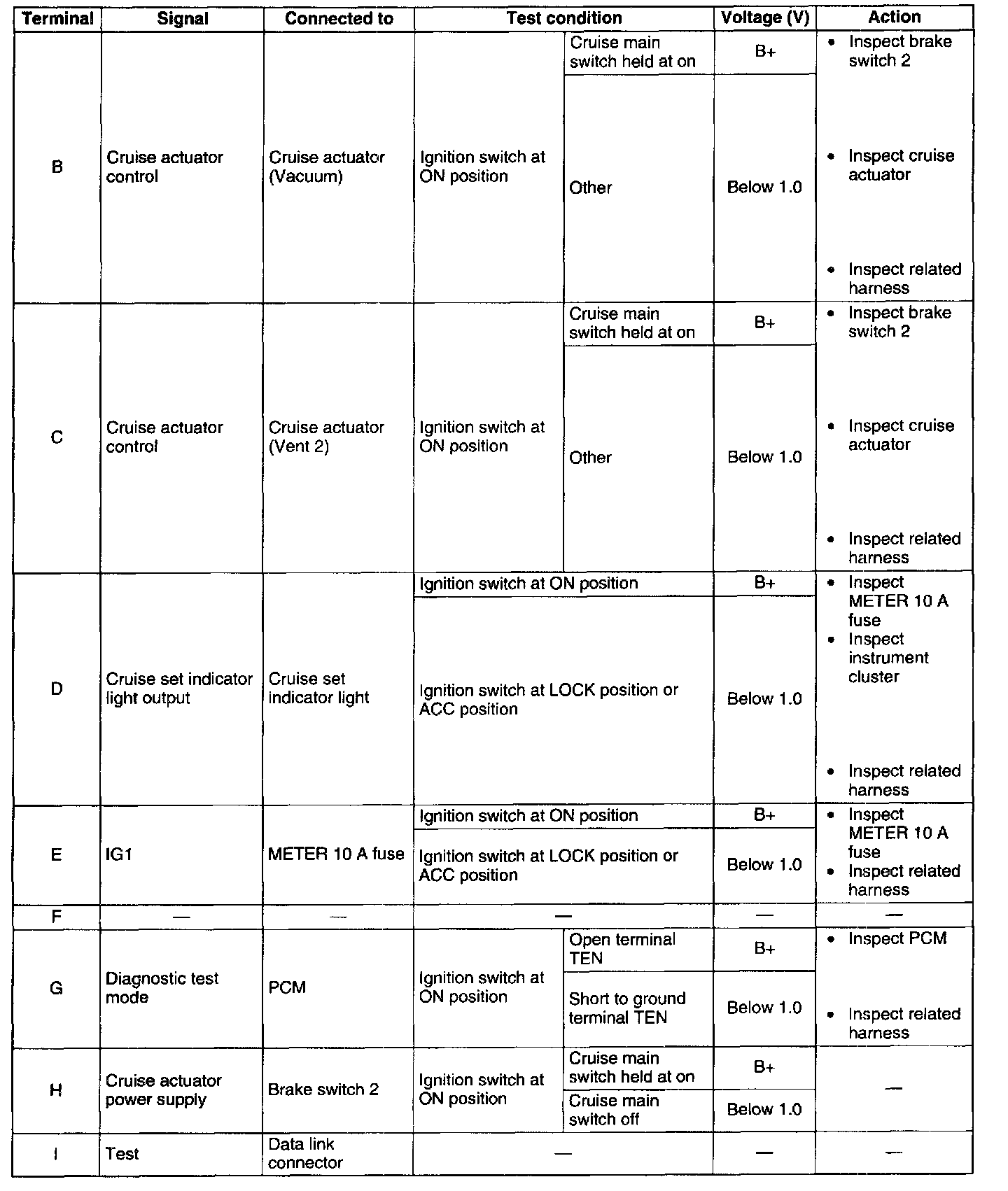

Terminal B - I

Terminal B - I:

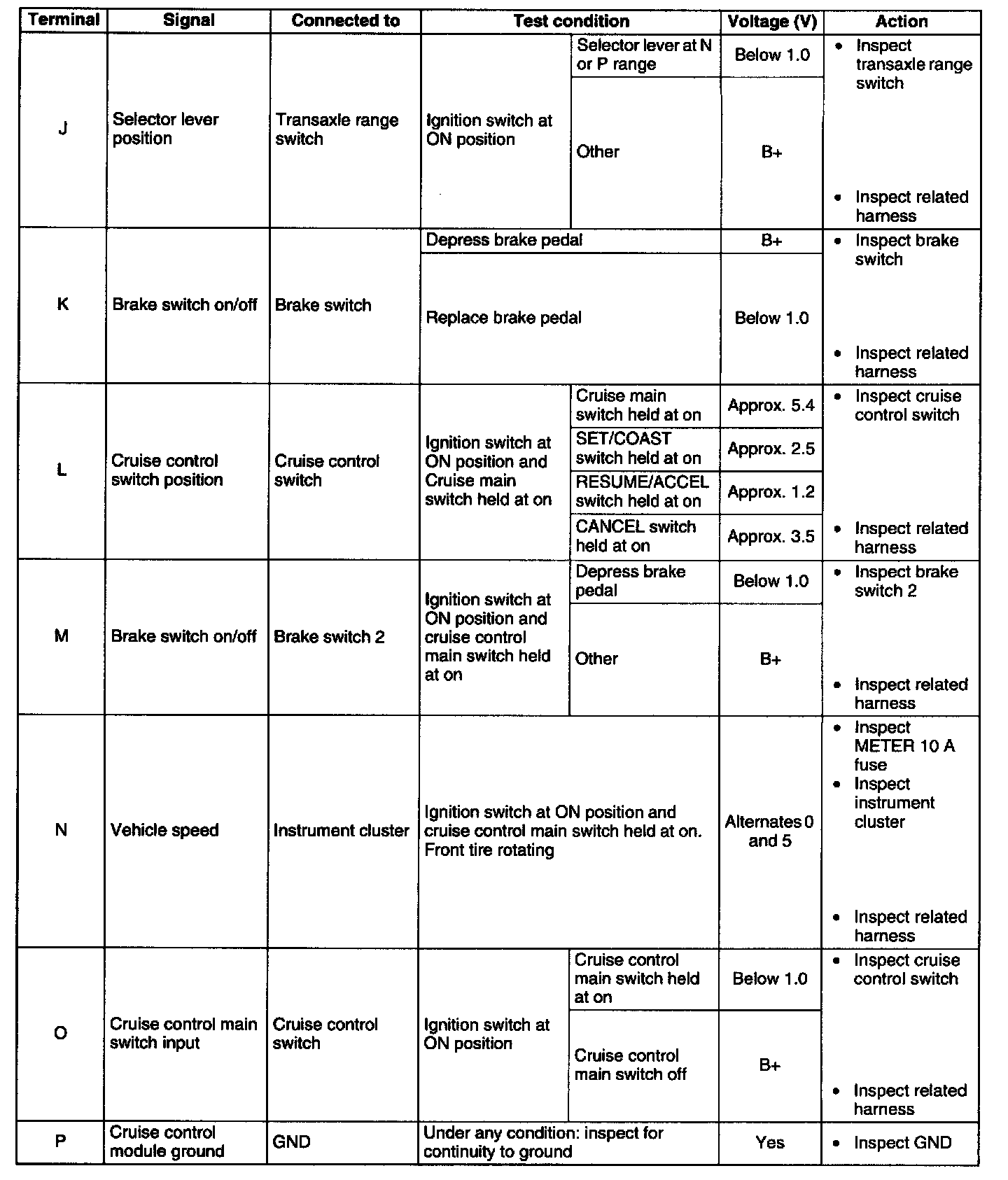

Terminal J - P

Cruise Control Module

Terminal Pinout:

Terminal A:

Terminal B - I:

Terminal J - P:
